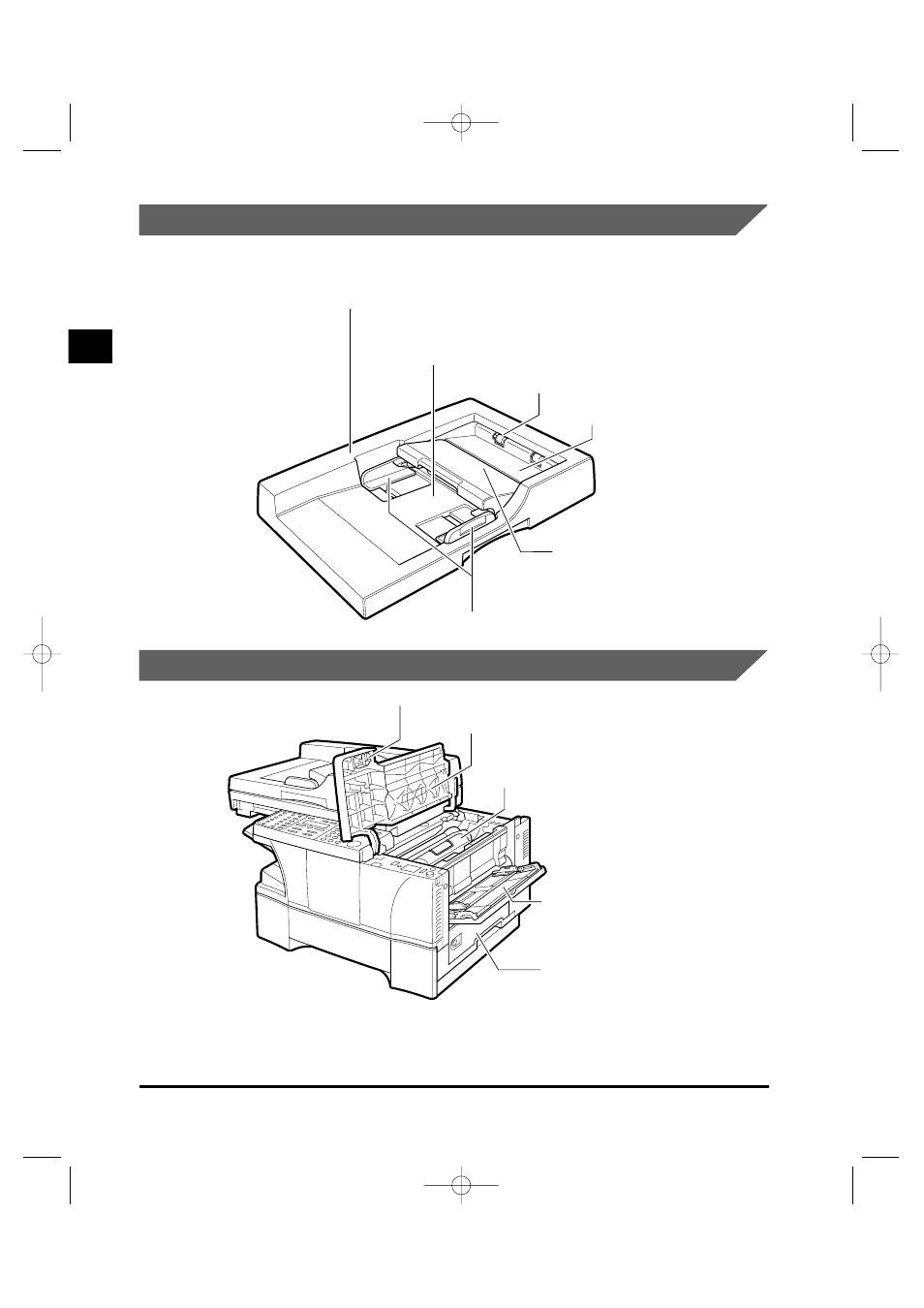

Front View of the ADF
imageRUNNER 1670F/1630
Internal View
Drum Cartridge Cover
Open it when you install the drum cartridge,
or remove jammed paper.
Drum Cartridge
Stack Bypass
Holds other print media when
you want to bypass the paper
drawer.
Right Cover
Open here to remove
jammed paper.
Plate
Use it when you replace the drum unit.
Document Output Slot
Documents come out here.
Slide Guides
Adjust to the width of the document.
Feeder Cover
Document Output Tray
Document Feeder Tray
ADF (Automatic Document Feeder)
Holds documents for copying and sending faxes
and feeds them automatically into the scanning unit.
1-4 Parts and Their Functions
