Fig. 7 — machine electrical data nameplate – Carrier EVERGREEN HFC-134A User Manual
Page 7
7
CHAIN “B”
(SEE NOTE #2)
CHAIN “C”
(SEE NOTE #2)
CHAIN “D”
(SEE NOTE #2)
15´-0´´
MIN. HEIGHT
ABOVE FLOOR
“E”
“F”
“A”

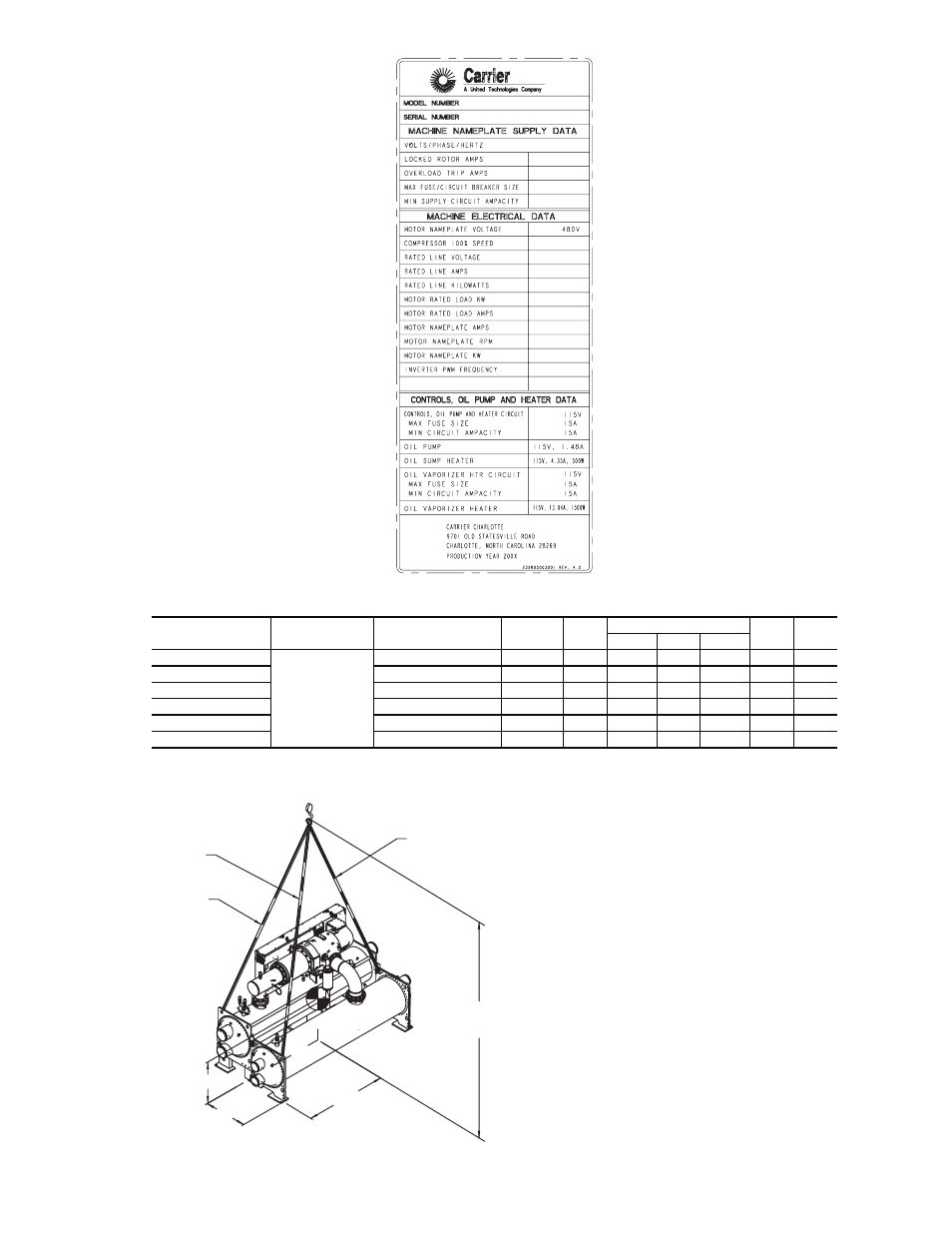

Fig. 7 — Machine Electrical Data Nameplate
*The 11th character of the chiller model number indicates the frame size of the compressor.
HEAT EXHANGER
CODE
COMPRESSOR
FRAME SIZE*
MAXIMUM WEIGHT
(lb)
VESSEL
LENGTH
DIM.
“A”
CHAIN LENGTH
DIM.
“E”
DIM.
“F”
“B”
“C”
“D”
30-32
R
19,187
12
′
6
′-10″ 13′- 5″ 13′-0″ 12′- 5″ 3′-11″ 3′- 8″
35-37
20,589
14
′
7
′- 8″ 13′-10″ 13′-5″ 12′-10″ 3′-11″ 3′- 8″
40-42
23,928
12
′
6
′-10″ 13′- 6″ 12′-8″ 12′- 3″ 4′- 1″ 3′-11″
45-47
25,167
14
′
7
′- 8″ 13′-11″ 13′-2″ 12′- 8″ 4′- 1″ 3′-11″
50-52
26,950
12
′
6
′-10″ 13′-10″ 12′-7″ 12′- 9″ 4′- 0″ 4′- 4″
55-57
28,479
14
′
7
′- 8″ 14′- 4″ 13′-1″ 13′- 1″ 4′- 0″ 4′- 4″
MACHINE RIGGING GUIDE
NOTES:
1. Each chain must be capable of supporting the
entire weight of the machine. See chart for maxi-
mum weights.
2. Chain lengths shown are typical for 15
′ lifting
height. Some minor adjustments may be required.
Fig. 8 — Machine Rigging Guide (Cooler Size 30 Through 57)
a23-1555
a23-1556
