SEPARATE THE COMPRESSOR FROM THE
CONDENSER
The VFD blocks access to the compressor mounting bolts.
It must be removed before the compressor can be separated
from the condenser. See instructions to remove the VFD from
the condenser. Refer to Table 10.
Do not rig the condenser before the control center and
compressor are removed. The condenser/compressor
assembly has a high center of gravity and may tip over
when lifted at the tubesheet rigging points, which could
result in equipment damage and/or serious personal injury.
TO TERMINAL
J4-10 UPPER
HUMIDITY
SENSOR

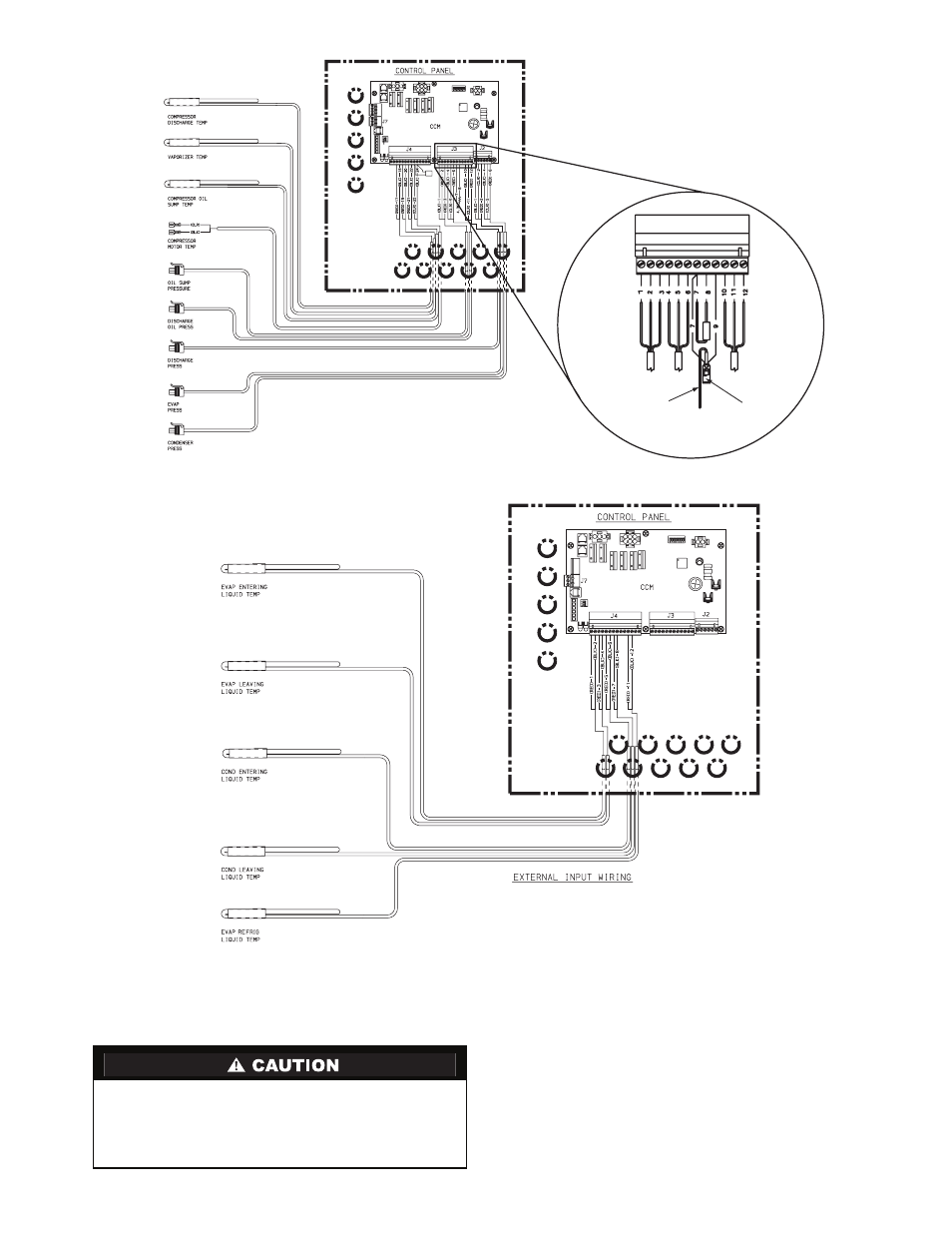

Fig. 22 — Control Panel Inputs
a23-1568
