Fig. 5 — vfd nameplate – Carrier EVERGREEN HFC-134A User Manual
Page 5
5
7
6
4
2
1
3
5
8
9
19
18
17
16
15
14
11
10
12 13
20

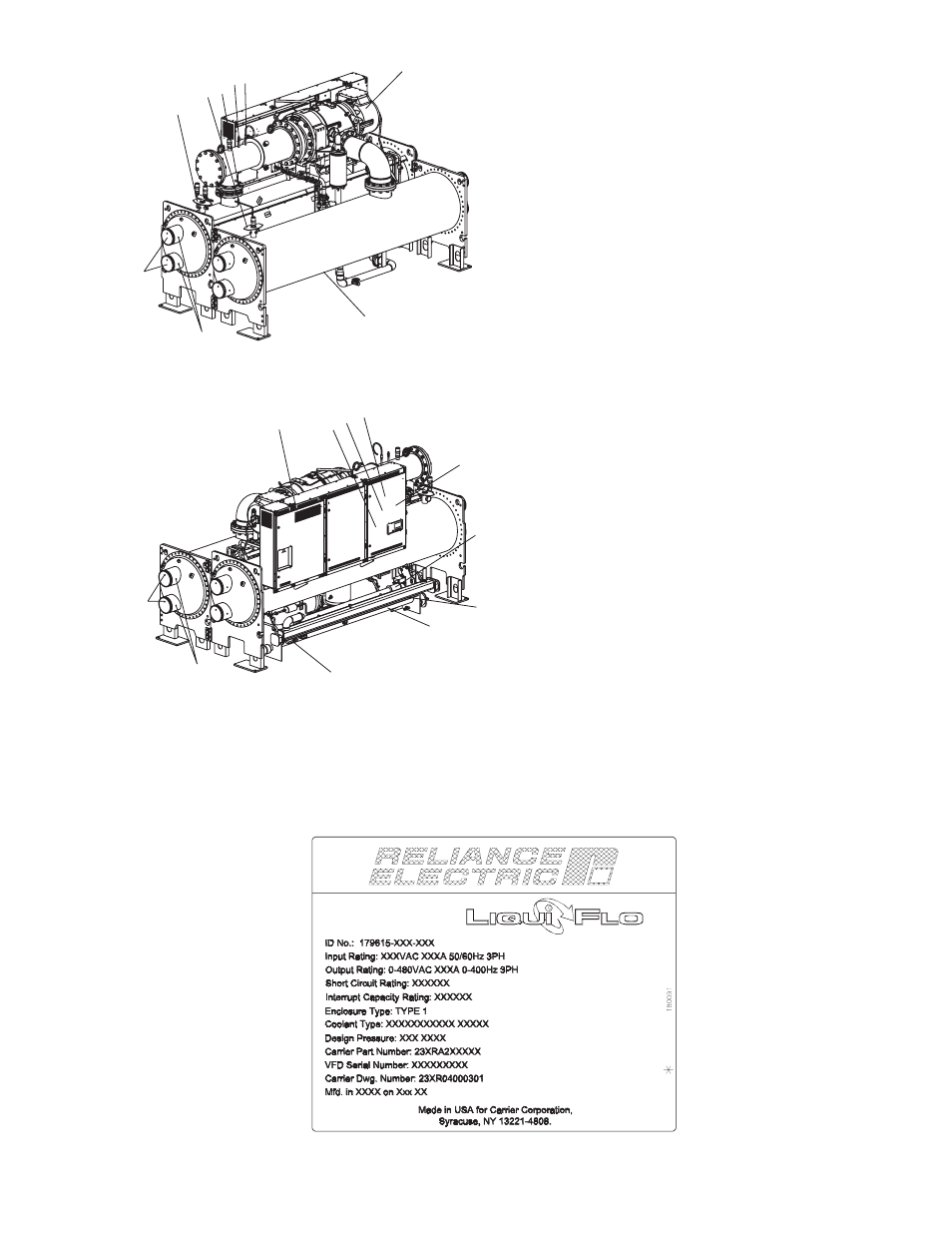

Fig. 4 — Typical 23XRV Installation (Sensor Locations)
1 — Condenser Pressure
2 — Evaporator Pressure
3 — Compressor Discharge Temperature
4 — Compressor Discharge Pressure
5 — Compressor Discharge High Pressure Switch
6 — Compressor Motor Winding Temperature (Hidden)
7 — Evaporator Refrigerant Liquid Temperature (Hidden)
8 — Condenser Liquid Temperature
9 — Condenser Liquid Flow (Optional)
10 — Inductor Temperature Switch
(Inside VFD Enclosure)
11 — VFD Rectifier Temperature
(Inside Power Module)
12 — VFD Cold Plate Temperature
(Inside VFD Enclosure)
13 — VFD Inverter Temperature
(Inside Power Module)
14 — Humidity Sensor (Inside VFD Enclosure)
15 — Oil Pressure Leaving Filter (Hidden)
16 — Oil Sump Pressure (Hidden)
17 — Oil Sump Temperature (Hidden)
18 — Vaporizer Temperature
19 — Evaporator Liquid Temperature
20 — Evaporator Liquid Flow (Optional)
Fig. 5 — VFD Nameplate
a23-1551
a23-1552
a23-1553
