RATED DRY WEIGHT AND REFRIGERANT CAPACITY
ENGLISH (lb)
SI (kg)
TANK
SIZE
TANK OD
(in.)
DRY
WEIGHT*
(lb)
R-134a MAXIMUM REFRIGERANT CAPACITY (lb)
ANSI/ASHRAE 15
UL 1963
0428
24.00
2334
1860
1716
0452
27.25
3414
3563
3286
TANK
SIZE
TANK OD
(mm)
DRY
WEIGHT*
(kg)
R-134a MAXIMUM REFRIGERANT CAPACITY (kg)
ANSI/ASHRAE 15
UL 1963
0428
610
1059
844
778
0452
692
1549
1616
1491
LEGEND
*The above dry weight includes the pumpout condensing unit weight of 164 lb (75 kg).
ANSI
— American National Standard Institute
ASHRAE — American Society of Heating, Refrigeration,
and Air Conditioning Engineers
OD
— Outside Diameter
UL
— Underwriters Laboratories

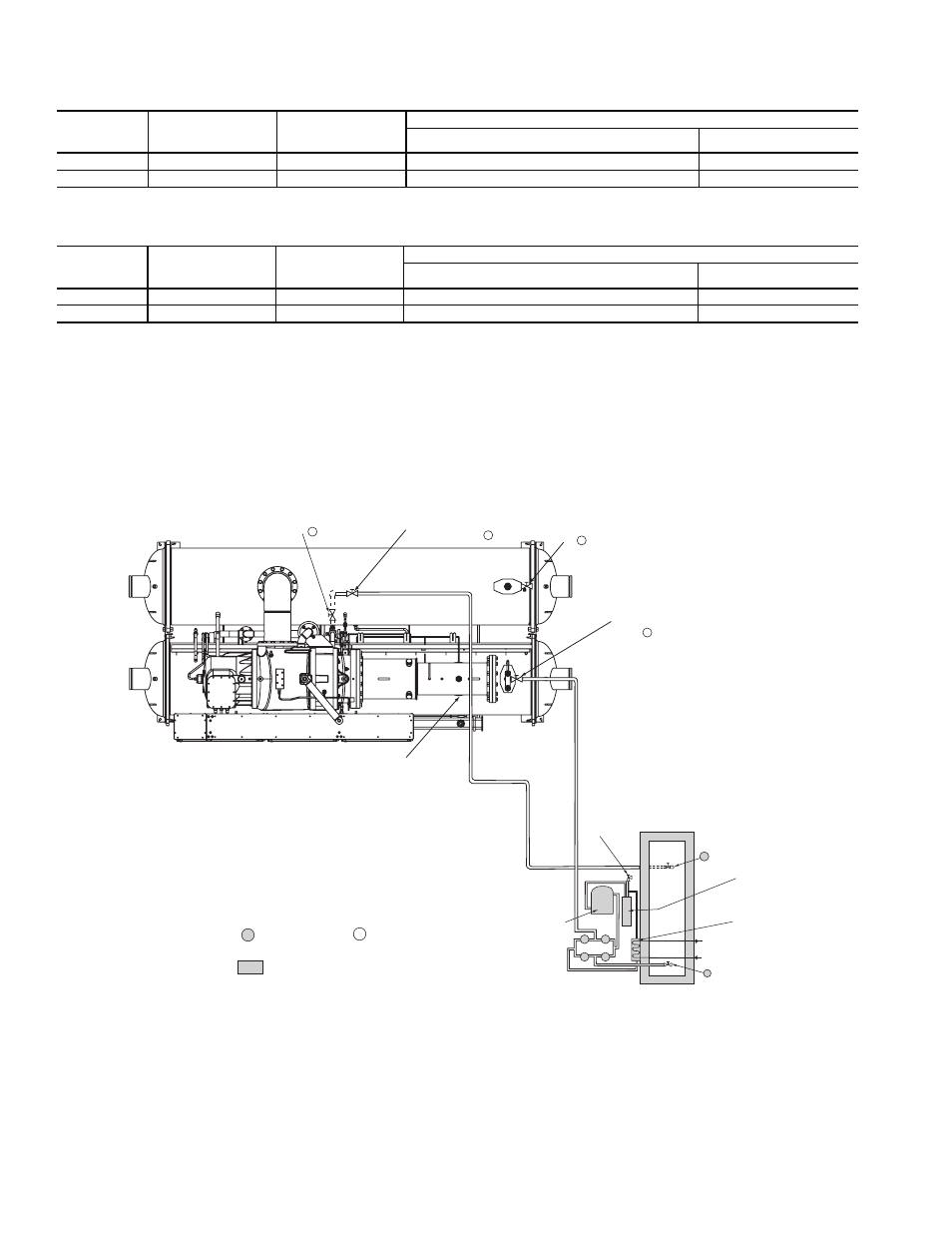

Fig. 39 — Optional Pumpout System Piping Schematic with Storage Tank
(Configured to Push Liquid into Storage Tank)
COOLER
CONTROL CENTER
COOLER REFRIGERANT
PUMPOUT VALVE
COOLER INLET
ISOLATION VALVE
COOLER CHARGING
VALVE
CONDENSER
CHARGING
VALVE
DISCHARGE ISOLATION
VALVE (OPTIONAL)
STORAGE
TANK LIQUID
VALVE
OIL
SEPARATOR
PUMPOUT
CONDENSER
WATER SUPPLY
AND RETURN
PUMPOUT
CONDENSER
STORAGE TANK
VAPOR VALVE
2
3
4
5
PRESSURE
RELIEF SAFETY
VALVE
PUMPOUT
COMPRESSOR
6
SERVICE VALVE ON
PUMPOUT UNIT
=
SERVICE VALVE ON
CHILLER (FIELD
SUPPLIED)
=
= MAINTAIN AT LEAST 2 FT (610mm) CLEARANCE AROUND
STORAGE TANK FOR SERVICE AND OPERATION WORK.
10
1a
7
1b
11
a23-1634
