Carrier EVERGREEN HFC-134A - Manual (Page 12)

12
MOTOR TEMPERATURE
CABLE
CONTROL
PANEL
VAPORIZER HTR CONDUIT
OIL HEATER CONDUIT
OIL PUMP CONDUIT
OIL SUMP TEMP. CABLE
OIL SUMP PRESS. CABLE
OIL PRESS. CABLE
OIL RECLAIM ACTUATOR CABLE
HGBP CONDUIT (OPTIONAL)
CONDENSER
PRESSURE
CABLE
WATER SENSOR CABLES
FOR NOZZLE ARRANGEMENTS
A,B,C,E,F,P,Q,R,T,&U
(SAME FOR OTHER END
OF MACHINE)
DISCH. TEMP. CABLE
DISCH. PRESS. CABLE
DISCH. PRESS. SWITCH
ENT/LVG CHILLED LIQUID CABLES
ENT/LVG COND. LIQUID CABLES
COND, PRESS CABLE
COMP’R DISCH TEMP. CABLE
EVAP. PRESS. CABLE
EVAP. REFRIG. LIQUID TEMP. CABLE
MOTOR TEMP. CABLE
VFD COOLANT SOLENOID CABLE
OIL PRESS. CABLE
DISCH. PRESS. SWITCH CABLE
HGBP CONDUIT (OPTIONAL)
VFD COOLING
SOLENOID
CABLE
EVAP REFRIG. LIQUID
TEMP. CABLE
HGBP CONDUIT (OPTIONAL)
SUCTION END
DISCHARGE END
COOLER
PRESSURE
CABLE
CABLE TRAY CONTAINING
CABLE TRAY CONTAINING
OIL VAPORIZER CONDUIT
OIL HTR CONDUIT
OIL PUMP CONDUIT
OIL RECLAIM ACTUATOR CABLE
OIL SUMP PRESS. CABLE
OIL DISCH. PRESS. CABLE
OIL SUMP TEMP. CABLE
HGBP CONDUIT (OPTIONAL)
COMR’R DISCH. TEMP. CABLE
DISCH. PRESS. SWITCH
DISCH. PRESS. CABLE
COMP’R DISCHARGE
TEMP. CABLE
DISCH. PRESS. CABLE
DISCH. PRESS. SWITCH
CONDENSER
PRESSURE
CABLE
EVAPORATOR
PRESSURE
CABLE
OIL PUMP
CONDUIT
OIL RECLAIM
ACTUATOR
CABLE
OIL SUMP
PRESSURE
CABLE
OIL SUMP
TEMPERATURE
CABLE
VAPORIZER HEATER CONDUIT
OIL HTR CONDUIT
OIL PUMP CONDUIT
OIL RECLAIM ACTUATOR CABLE
OIL SUMP PRESS. CABLE
OIL PRESS. CABLE
OIL SUMP TEMP. CABLE
HGBP CONDUIT (OPTIONAL)
EVAPORATOR
REFRIG LIQUID
TEMPERATURE
SENSOR CABLE
OIL HEATER
CONDUIT
SUCTION END
DISCHARGE END
MOTOR TEMP
CABLE
VFD COOLING
SOLENOID
OIL
PRESSURE
LEAVING
FILTER
CABLE
CABLE TRAY CONTAINING
CABLE TRAY CONTAINING

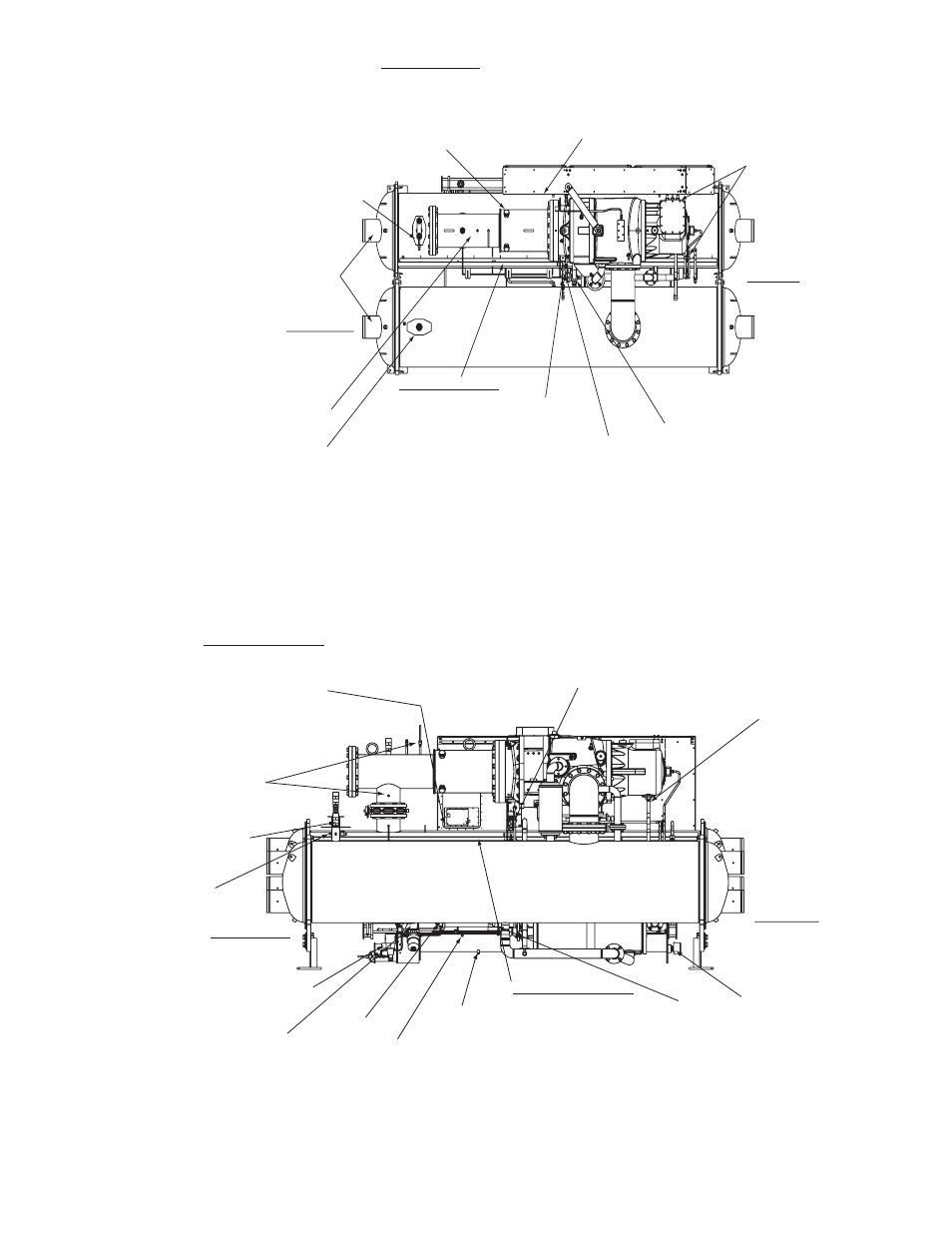

Fig. 10 — Electrical Cable Routing (Top View)
Fig. 11 — Electrical Cable Routing (Back View)
LEGEND
HGBP
— Hot Gas Bypass
HTR — Heater
ENT/LVG — Entering/Leaving
LEGEND
HGBP
— Hot Gas Bypass
HTR — Heater
ENT/LVG— Entering/Leaving
a23-1558
a23-1559
