Compex Technologies WPE54 User Manual
Page 74
Chapter 5
Further Configuration
73

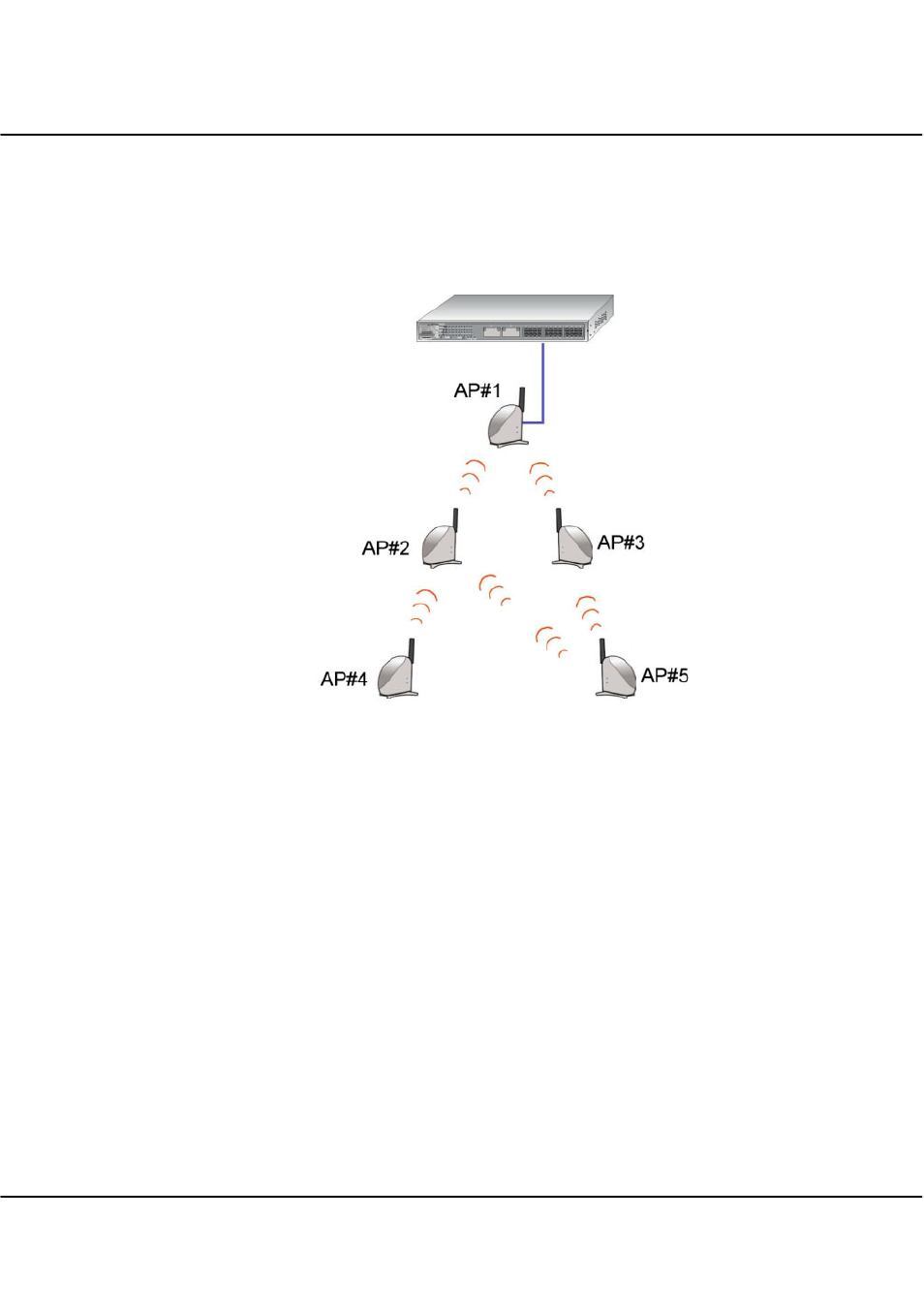

The figure shown below explains the implementation of STP in a network. AP#1 is
physically connected to a switch whilst another 4 access points (AP#2, AP#3, AP#4 and
AP#5) are connected to AP#1 wirelessly. Redundant paths were found in this network,
without enabling STP function, broadcast storm will occur in this network, resulted
duplicated frames to be forwarded.
