Frame-Mounted Coulter Adjustments
Refer to Figure 71
Frame-mounted coulters may be run on-row or between
rows.
On-Row
If run on-row, or within 2 in. (5.1 cm) of the furrow, adjust
the shaft
to set the coulter depth to be the planting
depth or
1 ⁄
4
inch (6 mm) shallower.
Between Row (or Off-Row at least 2in)
At the shaft
, adjust the coulter depth for a running
depth of 4 to 4
1 ⁄
2
inches (10.1-11.4 cm) below ground
level . Refer to the Vantage I manual (204-376M) for
further adjustments.
Do not adjust the spring tension. It is factory pre-set.
Vantage I Fertilizer Adjustments
Refer to Figure 72
At the back plate , adjust the tine height for a running
depth of 1 inch (2.5 cm) below ground level . Refer
to the Vantage I manual (204-376M) for further
adjustments.
4

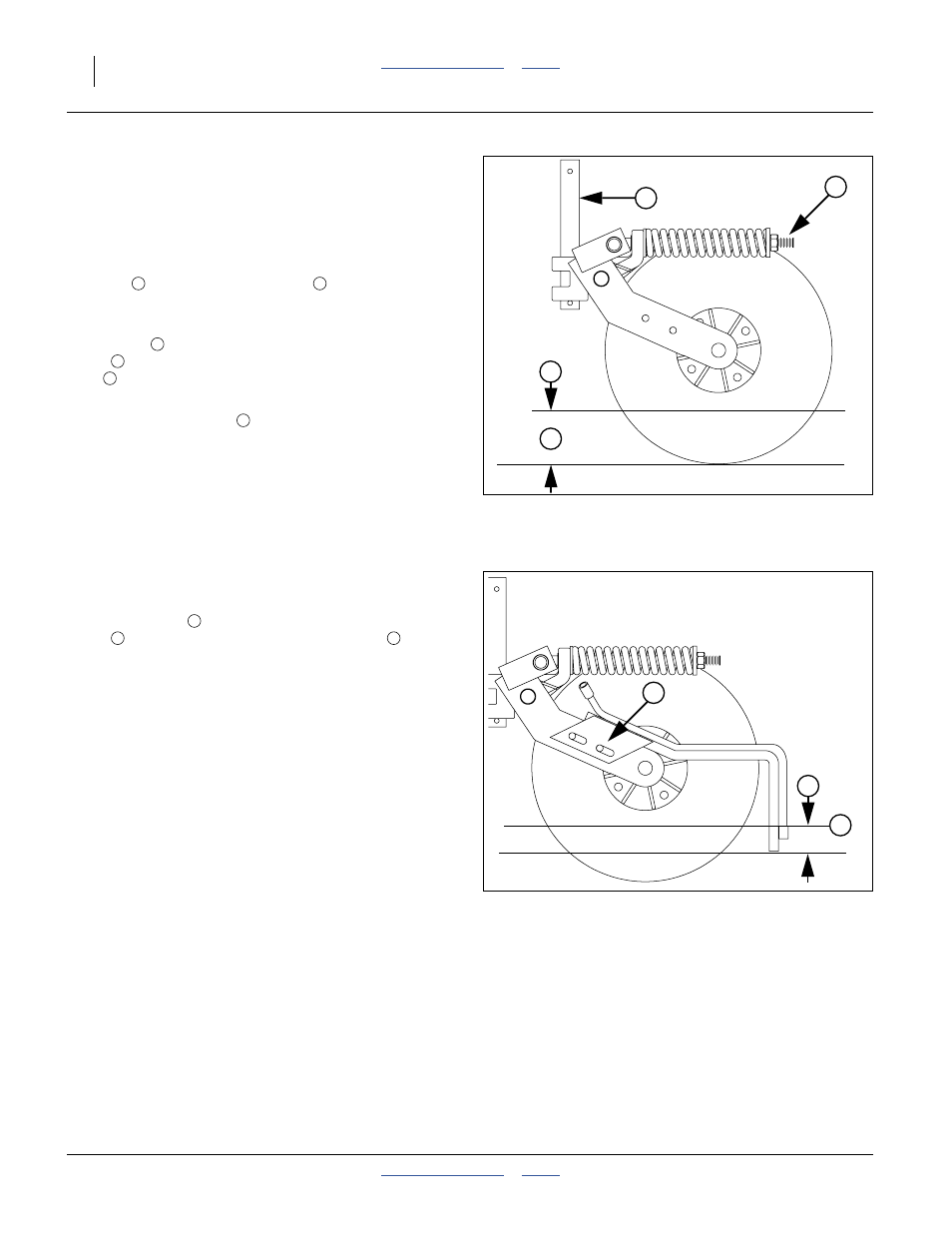

Figure 71
Frame-Mount Coulter
25392
1
3
2
1 2
1
2
3
4
Figure 72
Vantage I Applicator
22951
3
2
1
1
2 3
