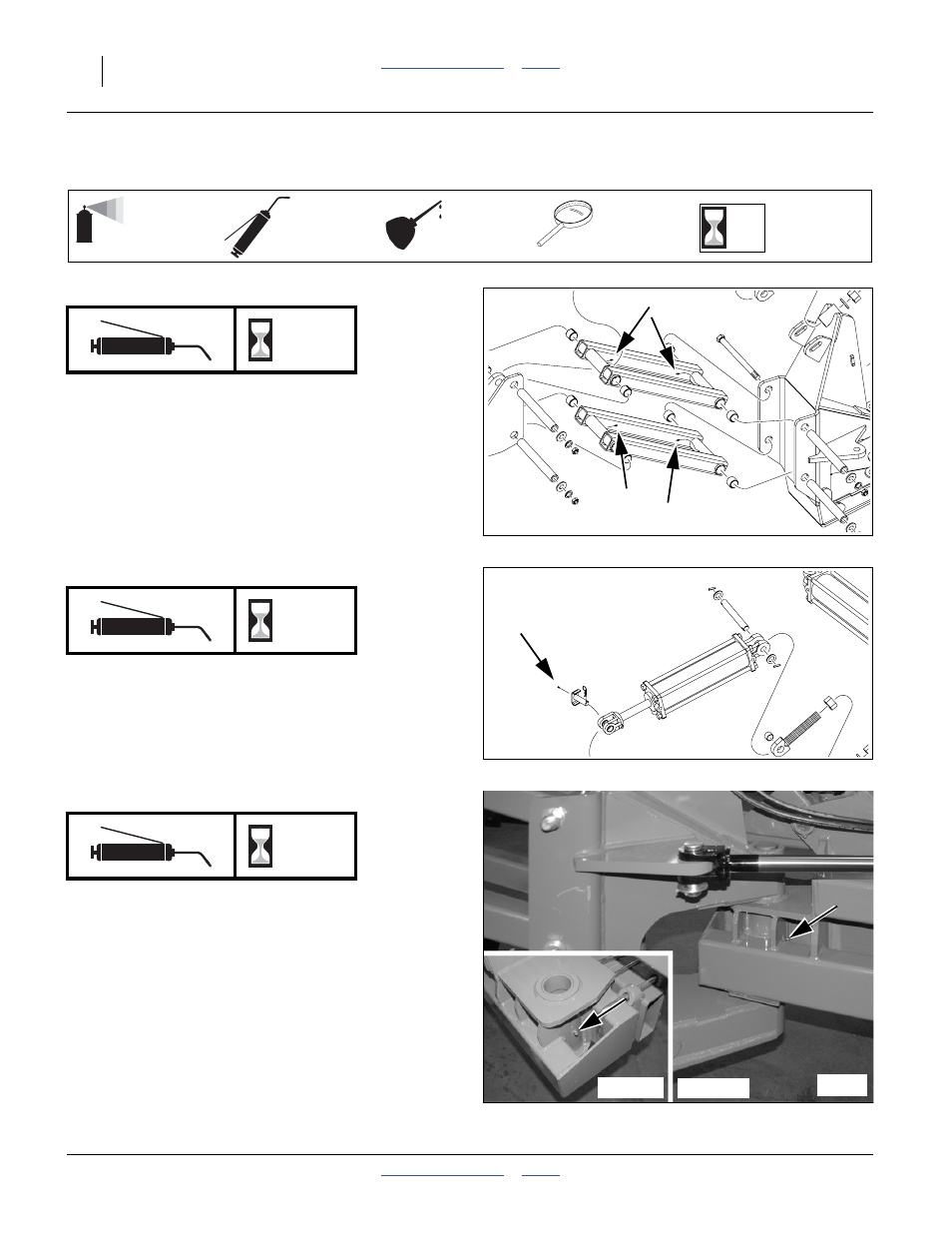

Lubrication
Wing Casters: Parallel Arms
One zerk each end of each arm, each wing;
8 total
Type of Lubrication: Grease
Quantity: Until Grease emerges
Wing Casters: Lift Cylinder Ends
One zerk at rod end of each cylinder, each wing;
2 total
Type of Lubrication: Grease
Quantity: Until Grease emerges
Wing Caster Wing Pivot
1 zerk each of 2 casters; 2 total
Type of Lubrication: Grease
Quantity: Until grease emerges
Note: Zerk is located on the left side of the pivot tube on
both wings. This is to the outside on the left (shown
with caster assembly dismounted), and to the
inside on the right.
8
50
Multi-purpose
spray lubricant Multi-purpose
grease lubricant Multi-purpose
oil lubricant
Intervals
(operating hours)
at which service
is required
Inspection
34208
29263
8
29263
8
29319 Left Wing Right Wing
