Raising Planter
Refer to Figure 22
1. If the planter has hydraulic hitch, set the Lift/Hitch
switch
to LIFT.
Note: If the planter has the standard 3-point hitch, this
switch has no function. The hydraulic circuit is
always in Lift (Raise/Lower) mode.
2. Move the cab lever to Extend the circuit for Lift/Hitch.
Machine Damage Risk:
On tractors with electronic timer controls for hydraulic
circuits, lift timers must be set to no more than 2 seconds
longer than needed to fully raise planter.
Do Not Set for Continuous Mode.
For transport, maintenance or storage, install lift cylinder
locks. See “Lift Cylinder Lock-Up” on page 31.
Lowering Planter
Refer to Figure 23
1. If lift cylinder locks are installed, first fully raise the
planter, and remove the locks. See “Raising
Planter” on page 30 and “Lift Cylinder Lock-Up” on
page 31.
2. If equipped with hydraulic hitch, set the Lift/Hitch
switch
to LIFT. On 3-point hitch, this switch has no
function and the circuit is in Lift mode at all times.
3. Move the cab lever to Retract the circuit for Lift/Hitch.
When fully lowered, return lever to neutral.
Machine Damage Risk (Hydraulic Hitch Only):
Never lower planter while fully folded, if it is equipped with
the hydraulic tongue hitch, or machine damage can occur
unless a special procedure is followed (see page 31). A planter
with a 3-point hitch may be lowered while folded.
Machine Damage Risk:
Never lower planter while partially unfolded (with either
hitch). Wing row units can strike main transport wheels.
1

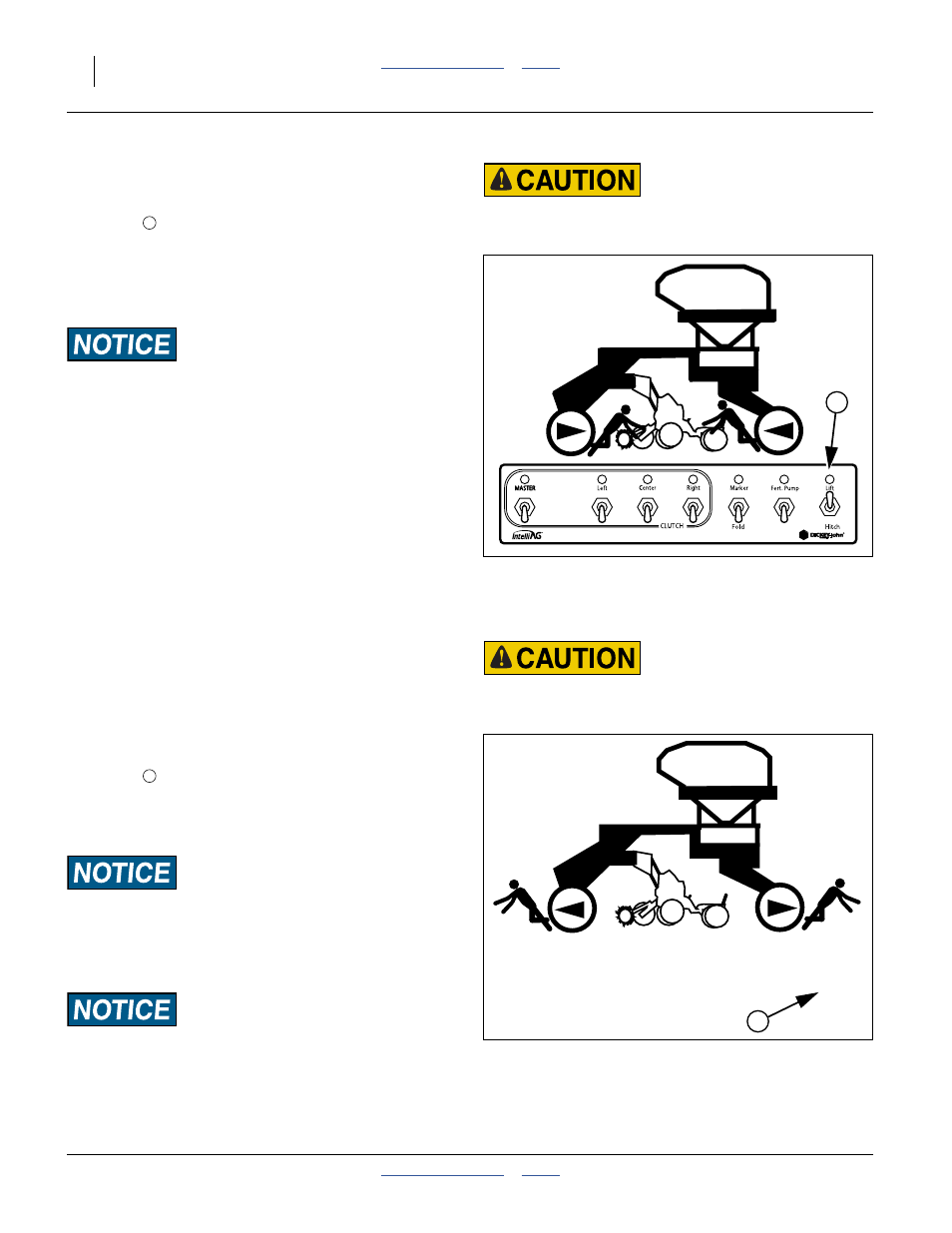

Figure 22
CFM: Raising Planter
26113
Pinch/Crush Risk:
Keep all personnel clear of center section and seed cart while
raising tool bar. The wheels move inward.
1
1
Figure 23
CFM: Lowering Planter
26113
Crushing Risk:
Keep all personnel clear of center section and seed cart while
lowering tool bar. The wheels move outward.
1
