Great Plains Manufacturing, Inc. Table of Contents Index Options 135
2014-09-08 Table of Contents Index 401-571M

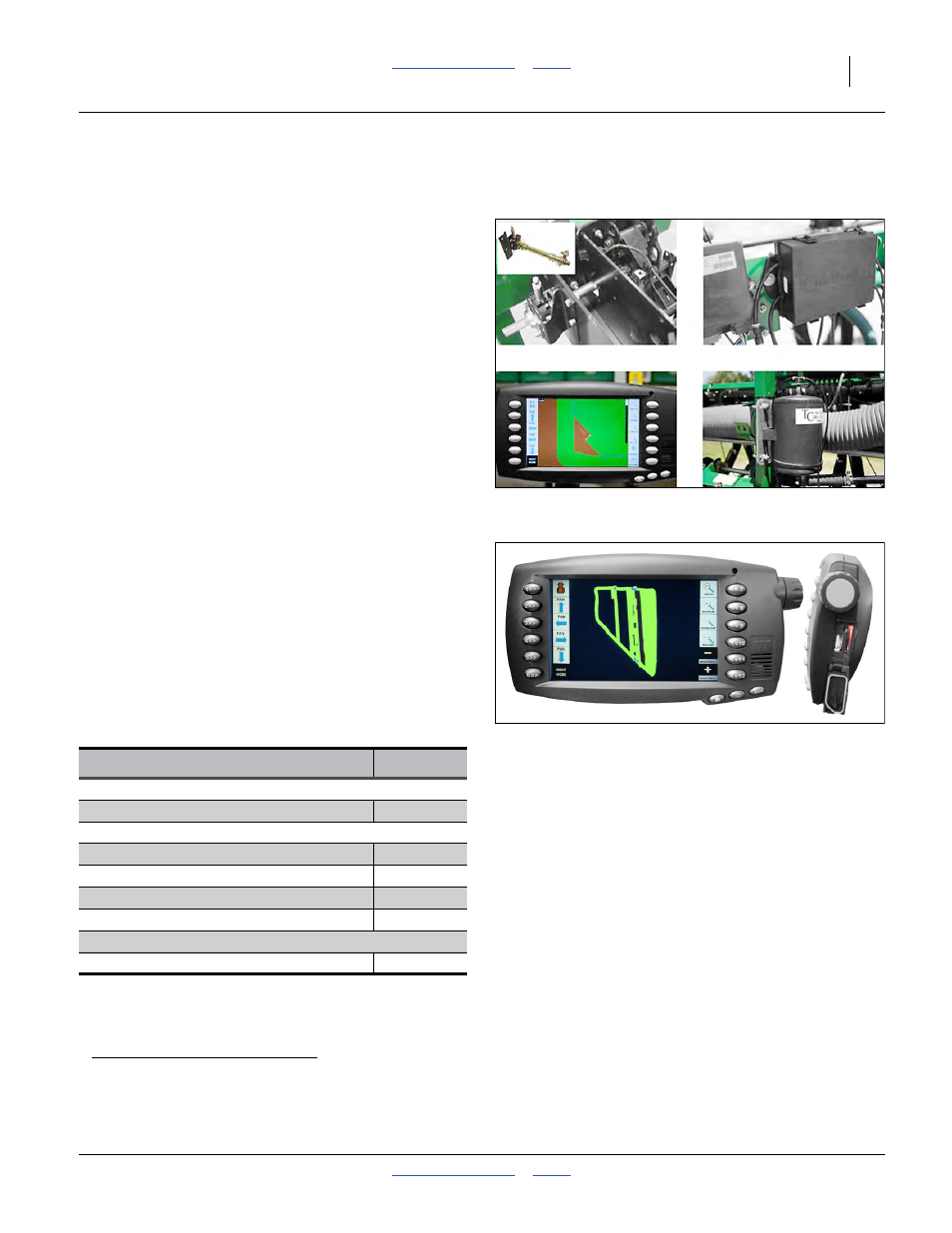

Unit-Mounted Row Options
Swath Command
Swath Command™ replaces the electric 3-section
clutches with electro-pneumatic clutches at each row (at
each row pair for twin row and spacings under 20 in.).
The basic Swath Command™ package includes all
implement hardware, all implement electronics (except
GPS), and cabling to integrate with monitor CAN bus.
The row clutches are intended for automatic operation by
an optional or user-provisioned controller relying on an
optional or user-provisioned DGPS
a
receiver. Great
Plains offers two models of Trimble GPS receiver.
Presently, the implement hardware and harness
components are only available factory installed (initial
planter order feature code 57), and are not
field-installable. Swath controller, DGPS receiver, and
interface cables (below) may be purchased at any time.
Swath Command™ is available only on Model YP4025
(25 Series openers), excepting single-row spacings
below 15 in. (38.1 cm).
Swath Command™ Controller
This DICKEY-john
®
A5 console supplements the
standard DICKEY-john
®
IntelliAg
®
console, as well as
some models of customer-provisioned monitors. It
accepts the GPS coordinate feed
b
, performs field
mapping/data logging functions, and provides
8 channels (typically 6 sections) of clutch control. Data
import/export is via SD card or USB.
The console includes a mounting bracket, but does not
include a cable harness. Order one of the following:
a. The GPS receiver must update at 5Hz or faster. Augmented precision needs to be below one row space, and may need to be below
1 in. (2.5 cm) depending on requirements to precisely align passes for auto-steer, Swath Command™ or with other operations, such
as treatments, irrigation and harvesting.
b. A customer-provisioned GPS receiver must provide an NMEA 0183 RS-232 connection, or an ISO 11783 (CAN bus) connection.
Description Part No.
DICKEY-john
®
console
A5 HARNESS INTELLIAG SYSTEMS 467980458
John Deere Greenstar™ 2 (order all)
DJ INTELLIAG GS2 ADAPTER 467980336
A5 HARNESS FOR NON INTELLIAG 467980337
John Deere Starfire GPS
DJ HARNS STARFIRE GPS INTERFAC 467980460
AGCO GTA Console II
A5 HARNESS FOR NON INTELLIAG 467980337
