Electric Clutch Lock-Up
In case of electric clutch failure, an electric clutch can be
mechanically engaged.
Refer to Figure 37 and Figure 38
1. Remove the rubber plugs from the oil shield
disc to allow access to the lock-up holes. Plugs
simply push out away from the clutch side.
2. Align the cutouts with the holes .
3. Insert the M8-1.25
×
14 mm long metric bolts .
If you observe half the hole obstructed by a metal
disc
, you are not at a cutout.
If the entire hole is obstructed by a metal disc , you
are not at a cutout.
When at a cutout, the bolt will screw in with minimal
resistance until the bolt head reaches the clutch
face.
4. Re-install the plugs so they are not lost.
Note: Use only the provided 14 mm length bolts. Longer
bolts will damage the clutch. Shorter bolts may not
effect a lock-up.

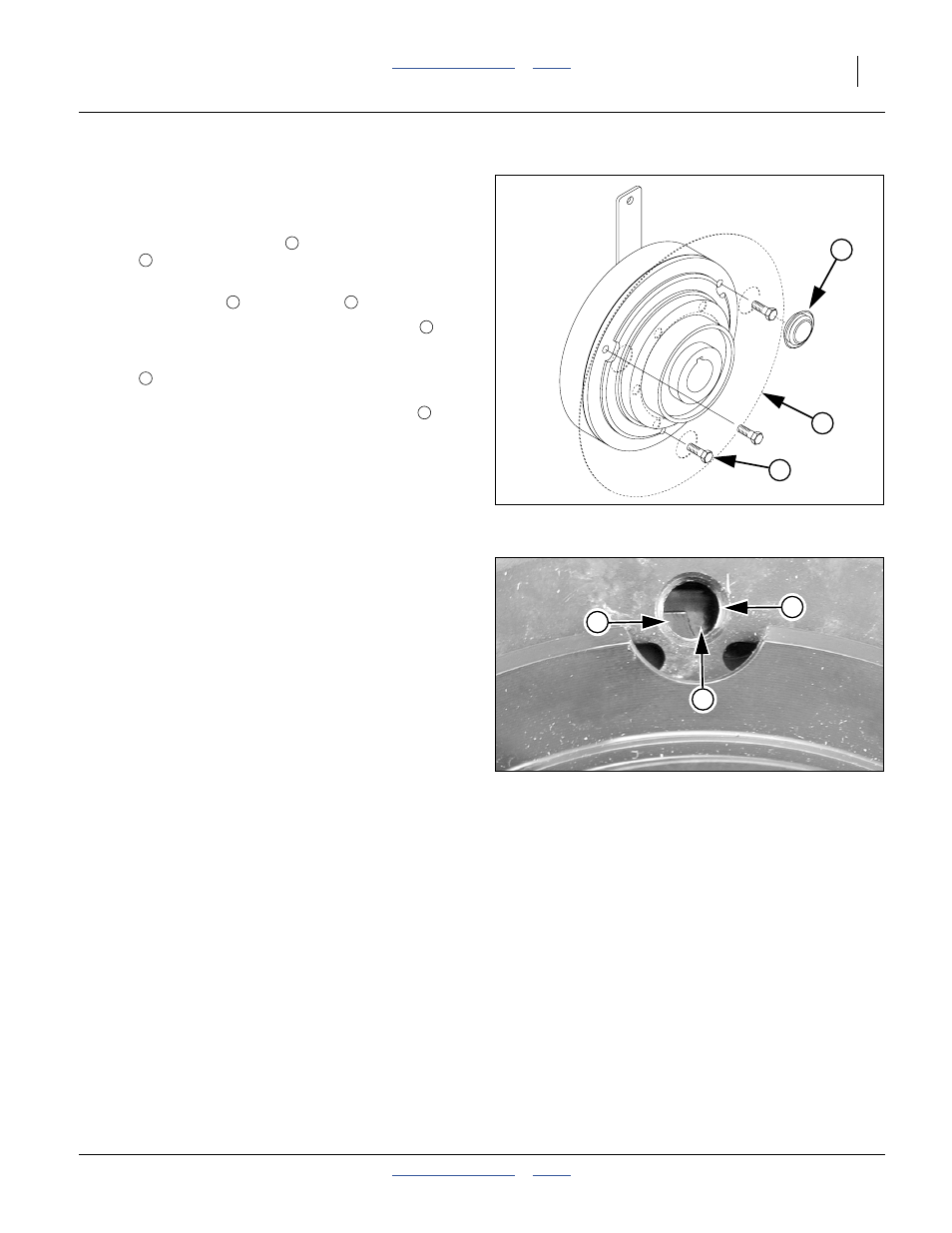

Figure 37
Electric Clutch Lockup
29329
5
1
2
1
2
3 4
5
6
6
Figure 38
Clutch Plate Nearly at Cutout
26168
6
4
3
