128 YP4010HD/YP4025/F Table of Contents Index Great Plains Manufacturing, Inc.
401-571M Table of Contents Index 2014-09-08
Fertilizer Systems
The YP40 supports several supply and distribution
systems for fertilizer application of one or two materials:
• on-board 400 gallon tanks (2x200 gal./1500 liters
total), relying on a planter-mounted ground-drive
pump and Type 2 manifold.
• 1600 gallon (6050 liter) pull-behind cart and cart
pump, relying on Type 3 manifold,
• second 400 gallon tank on the cart, using planter
pump and Type 2 manifold, or as extra capacity for the
1600 gallon tank,
• 670/1440 liter seed/dry fertilizer hopper, which
includes its own manifold and air delivery system,
relying on the existing planter fan. See separate
manual 403-362M.

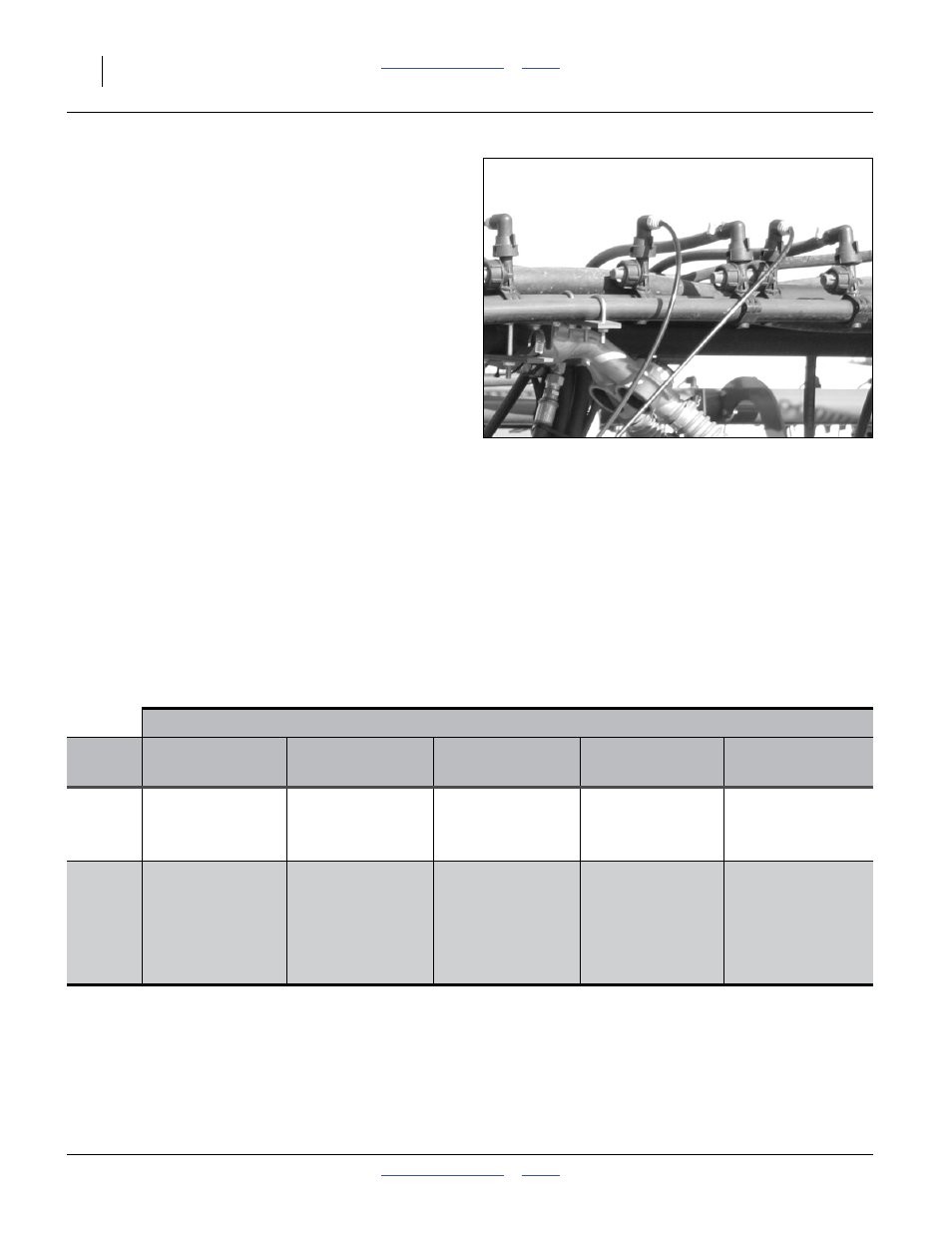

Liquid Fertilizer Systems
Boom (manifold) systems are factory-installed. All booms
have the same number of outlets. Unused outlets are
capped on wider row spacings.
The Type 3 boom is separately plumbed for each of the 3
planter sections, and relies on an off-planter pump and
supply manifold (which are standard on the PFC1600
and PFC2000 tank carts).
The Type 2 boom has a single inlet, and is optimized for
use with a planter-mounted ground-drive pump. The
base Type 2 system is plumbed to the on-board tanks.
The 407-243A kit extends it to the rear hitch, for use with
the 400 gallon tank of the PFC2000.
When a trailing tank cart is used, the Trailer Hitch
Weldment is also required.
For operations, see the Seed Rate manual.
Liquid System Configurations
Order one each (except where noted) of the parts listed for your configuration.
26077
Great Plains Material Supply System
Delivery
Systems
YP40 planter
2x200 Gal.
YP44 2x200
& PFC1600
PFC1600
Cart Only
PFC2000
Cart Only
SML Cart Only
Single
Boom
407-239A T2 Boom
407-213A Pump
407-244A Tanks
407-240A T3 Boom
401-467A Hitch
PFC1600 Cart
407-240A T3 Boom
401-467A Hitch
PFC2000
a
Cart
a. This presumes switching between cart tanks with same material (a standard PFC cart capability).
407-239A T2 Boom
407-213A Pump
407-243A Inlet Kit,
SML-500/-735 Cart
Twin
Boom
407-239A T2 Boom
407-213A Pump
407-244A Tanks
⎯⎯⎯⎯⎯
407-240A T3 Boom
401-467A Hitch
PFC1600 Cart
407-239A T2 Boom
407-213A Pump
407-243A Inlet Kit
⎯⎯⎯⎯⎯
407-240A T3 Boom
401-467A Hitch
PFC2000 Cart
