Auxiliary Hydraulics

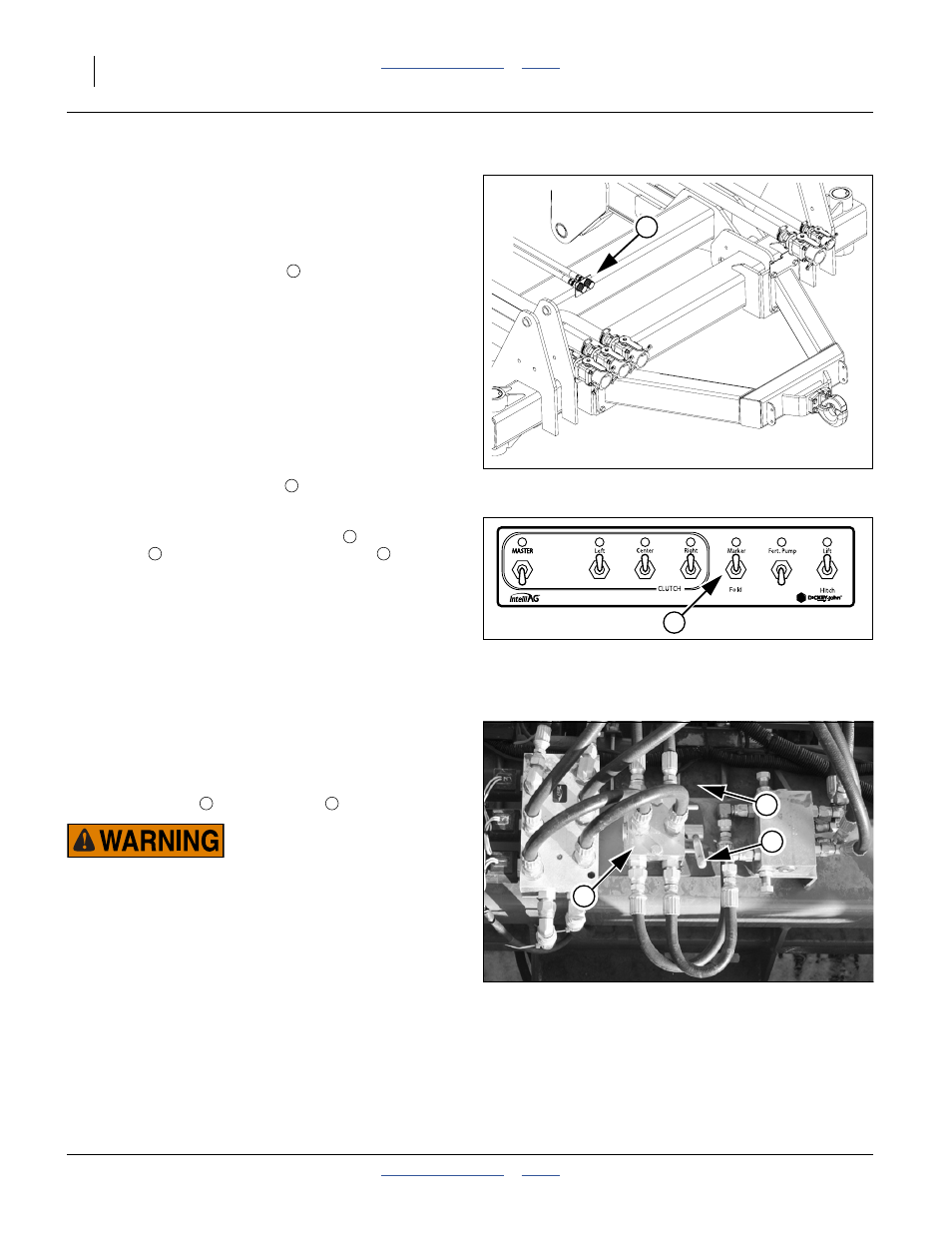

Refer to Figure 52, Figure 53 and Figure 54
The YP40 planter includes, as standard equipment, an
auxiliary hydraulic circuit, intended to power a seed
auger for loading bulk hoppers.
The Aux quick-disconnect ports are on the frame. This
circuit is shared with the markers (if installed).
Note: If markers are not installed, the Aux/Marker circuit
is always in Aux mode.
Operating Auxiliary Hydraulics
The planter needs to be unfolded for convenient access
to the manual hydraulic valve.
1. Fold any extended markers and set the tractor lever
for the marker/aux circuit to Neutral.
2. If no markers were unfolded, set the Clutch Folding
Module Marker/Fold switch
to “Marker”.
3. If the machine has markers, at the left wing tool bar,
move the lever on the manual valve
from
Marker (lever pointing forward) to Aux (lever
pointing back).
4. Connect the implement requiring hydraulic power.
5. Briefly Extend the tractor lever for the Marker circuit,
engage local valve/switch on implement, and confirm
proper implement operation (auger rotation in the
correct direction).
6. Set tractor circuit lever to Extend, and operate
implement with local controls.
7. When operation is complete, set tractor circuit to
Float or Neutral.
8. Set wing valve back to Marker .
Unexpected Marker Movement:
Do not move Marker/Aux valve unless tractor circuit is in
Float, Neutral, or shut down. If circuit is pressurized, markers
begin moving immediately when valve is set to Marker.
Figure 52
Auxiliary Hydraulic Ports
29269
1
1
2
Figure 53
CFM: Auxiliary Operations
26122
2
3
5 4
Figure 54
Auxiliary Hydraulic Valve
26048
3
5
4 3 5
