Introduction
Great Plains welcomes you to its growing family of new
product owners. The 40 Foot 3-Section Yield-Pro
®
Planter (YP40 Planter) has been designed with care and
built by skilled workers using quality materials. Proper
setup, maintenance, and safe operating practices will
help you get years of satisfactory use from the machine.
Models Covered
Note: YP4025A models with Air-Pro
®
seed meters are
covered by a different set of manuals.
Document Family Description of Unit
The YP40 Planter is a pull-type implement with optional
mounted or pull-behind fertilizer capability. The YP40
offers three opener types and a wide variety of
singulating and volumetric seed meters. It accepts
optional unit mounted and frame-mounted row
accessories. The YP40 Planter folds for transport.
10HD Series models support interchangeable seed
meters, and offer the narrowest row spacing (7.5 in.), as
well as 10 in. The 10HD opener is suitable for
conventional till, min. till light no till, and with coulters;
moderate no-till conditions.
25 Series support interchangeable seed meters and offer
single and twin-row spacings from 10 to 30 in. 25 Series
is suitable for conventional till, minimum-till, light no-till
conditions, and (with coulters) moderate no-till
conditions.
YP4010HDP-4810 10HD Series, 48-Row, 10 in. (25 cm)
YP4010HDP-6075 10HD Series, 60-Row, 7.5 in. (19 cm)
YP4025-1630
25 Series, 16-Row, 30 in. (76 cm)
YP4025-1670 25 Series, 16-Row, 70 cm (27.5 in.)
YP4025-2420 25 Series, 24-Row, 20 in. (51 cm)
YP4025-3115 25 Series, 31-Row, 15 in. (38 cm)
YP4025-3135 25 Series, 31-Row, 35 cm (13.8 in.)
YP4025-3215 25 Series, 32-Row, 15 in. (38 cm)
YP4025-32TR 25 Series, 32-Twin Row, 30 in. pairs
YP4025-32TR70 25 Series, 32-Twin Row, 70 cm pairs
YP4025-32TR75 25 Series, 32-Twin Row, 75 cm pairs
YP4025-4810 25 Series, 48-Row, 10in. (25 cm)
YP4025F-1670
a
a. Operation of the seed/fertilizer hopper supplied
with this model is covered in a separate manual,
403-362M.
25 Series, 16-Row, 70cm (27.5 in.)

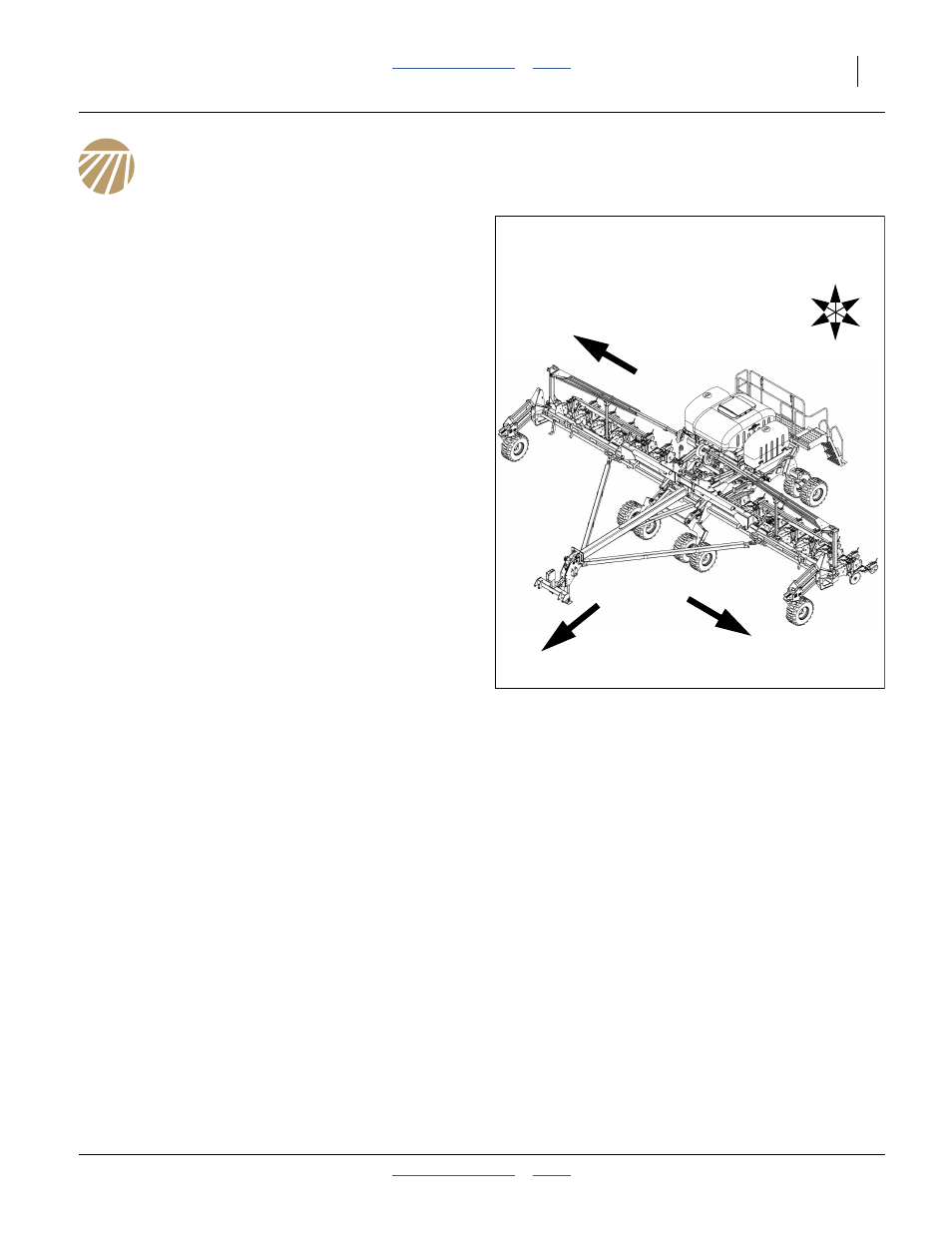

Figure 1
YP40 Planter
29162
L
R
U
D
F
B
L
R
401-571M Owner’s Manual (this document)
401-571B Seed Rate Charts
401-571P Parts Manual
403-362M 670/1440 liter seed/fertilizer hopper
DICKEY-john
®
IntelliAg
®
manuals:
110011440 10 in. Virtual Terminal Manual
110011508 Seed Monitor Manual Level 1
110011501 Seed Monitor Manual Level 2 & 3
110011499 YP40 30 in. and 70 cm Quick-Start guide
110011504 YP40 10 in. Quick-Start guide
110011532 YP40 20 in. Quick-Start guide
110011533 YP40 15 in. and 35 cm Quick-Start guide
110011535 YP40 7.5 in. Quick-Start guide
110011536 YP40 TR30 in. and TR70 cm QSG
11001-1126 hopper level sensor install
