Preparation and Setup
Prestart Checklist
1.
Read and understand “Important Safety Information,”
page 1.
2.
Check that all working parts are moving freely, bolts are
tight, and cotter pins are spread.
3.
Check that all grease fittings are in place and lubricated.
Refer to Lubrication, “Maintenance and Lubrication,”
page 70.
4.
Check that all safety decals and reflectors are correctly
located and legible. Replace if damaged. See Safety De-
cals, “Important Safety Information,”page 7.
5.
Inflate tires to pressure recommended and tighten wheel
bolts as specified. See “Appendix,” page 80.
Wiring Drill
NOTE: If tractor does not comply with ASAE connector, use
the European adapter.
Refer to Figure 1
1.
Remove screw from outer casing of ASAE connector.
2.
Loosen screw holding wires in place from outer casing of
ASAE connector. Pull outer casing apart. Disconnect
wires from connector by removing screws.
3.
Completely remove outer casing from wires.
Refer to Figure 2
4.
Remove black rubber end piece from European
adapter. Thread wires through black rubber end
piece starting with the smaller end.

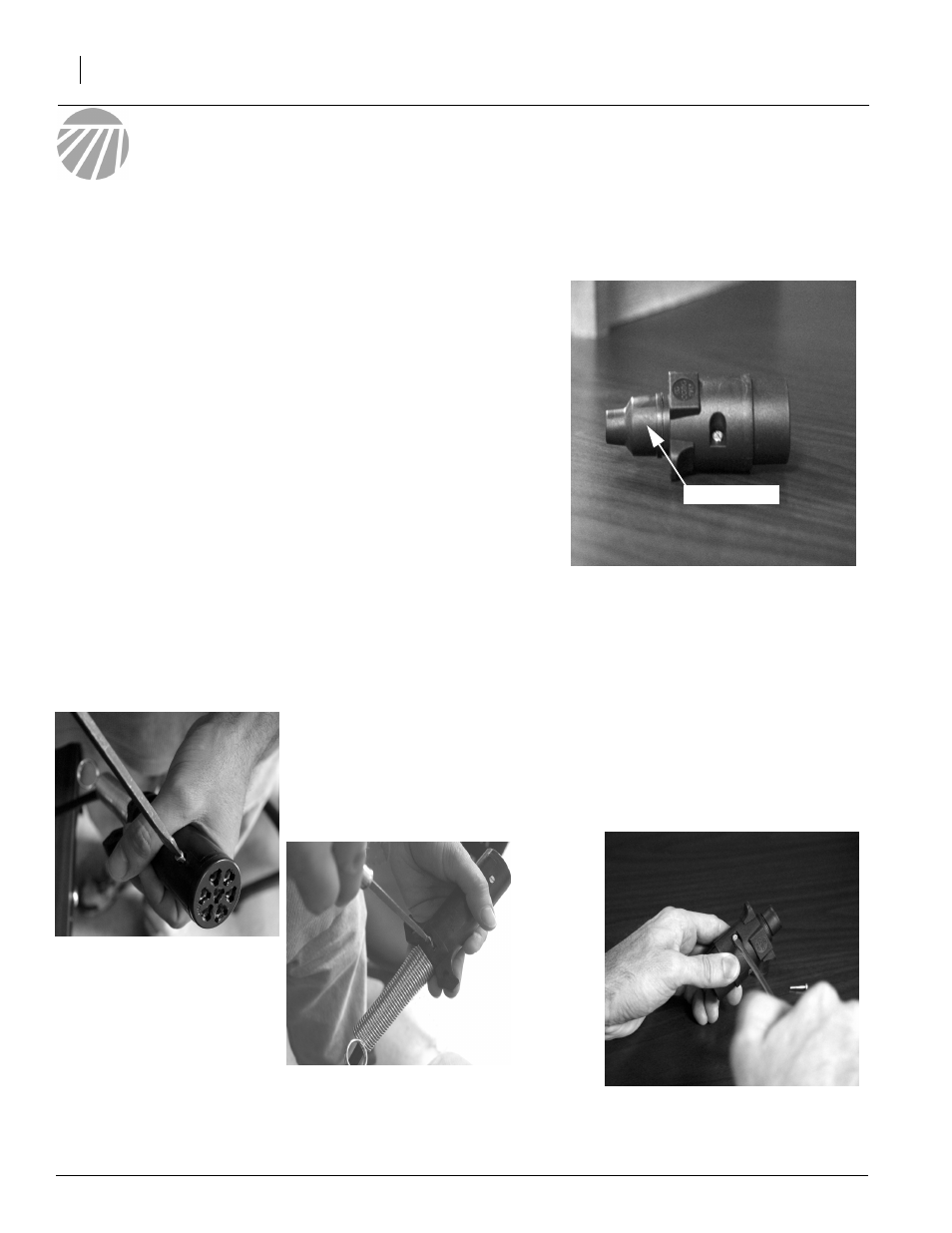

Figure 1
Removing ASAE Connector
Figure 2
European Adapter
Refer to Figure 3
5.
Remove the two screws holding the outer casing
of the European adapter together. Keep for re-
use.
6.
Remove connector from outer casing. Thread
wires under metal bar in bottom of outer casing.
Figure 3
Remove Screws to Outer Casing
23254
23252
23264
23265
End Piece
