ELR 7000 Series Multi Point Lock

• Check hand of door. The Multi-Point lock may be handed.
• Door should be fitted and hung.
• Verify box label for size of the Multi-Point lock, function and

hand.

Prepare door according to appropriate template. If necessary,

refer to

www.intelligentopenings.com.

• Metal door (MD/AD): A7860
- Template: 4582
• Wood door (WD): A7971
- Template: 4624

Left Hand

Reverse

LHR

Outside

Inside

Right Hand

Reverse

RHR

Fig. 1A

1. Refer to instruction sheet A7860 for rod and inner

case installation on metal doors.

2. Refer to instruction sheet A7971 for rod and inner

case installation on wood doors.

Fig. 2

Fig. 1B Metal Shown

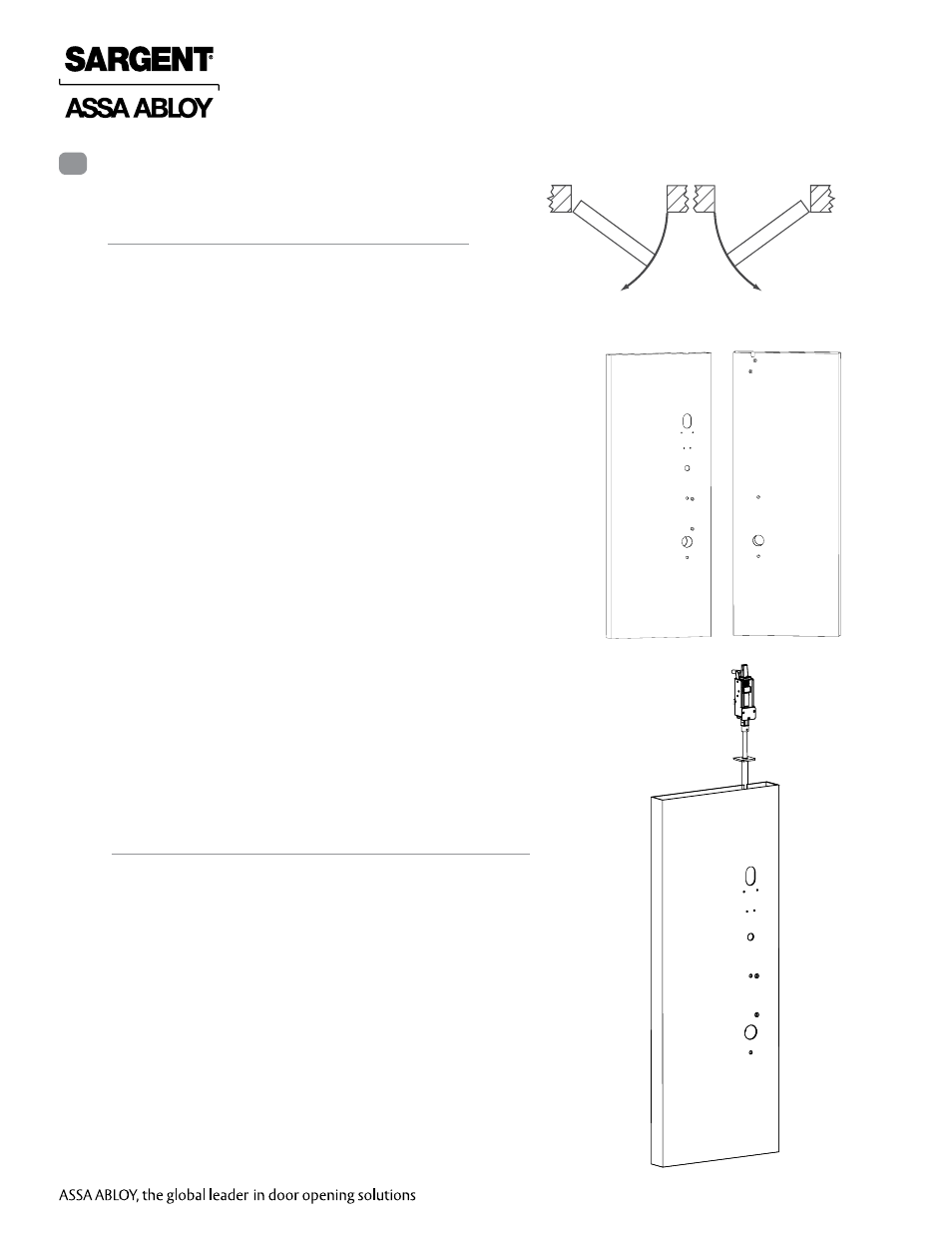

1 Door Preparation

A. Verify Hand and Bevel of Door

B. Door Preparation

2 Rod and Inner Case Installation

Installation Instructions
