ELR 7000 Series Multi Point Lock
ELR- Input Requirements
Voltage: 24VDC
• Filtered and regulated power supply
• Motor operating current: 700mA
• Motor hold current: 150mA
Note: Earth Ground is required for Electrostatic
Discharge (ESD) protection unless the metal door
and frame are already earth grounded; otherwise,
earth ground wiring is required at pin 4
(Fig. 2 POWER MODE Installation).
Stand Alone ELR
An ElectroLynx harness
is required to connect the
ElectroLynx hinge.
Note: Specified and
ordered separately
McKinney QC8 Electric
Hinge (with 8-pin connector)

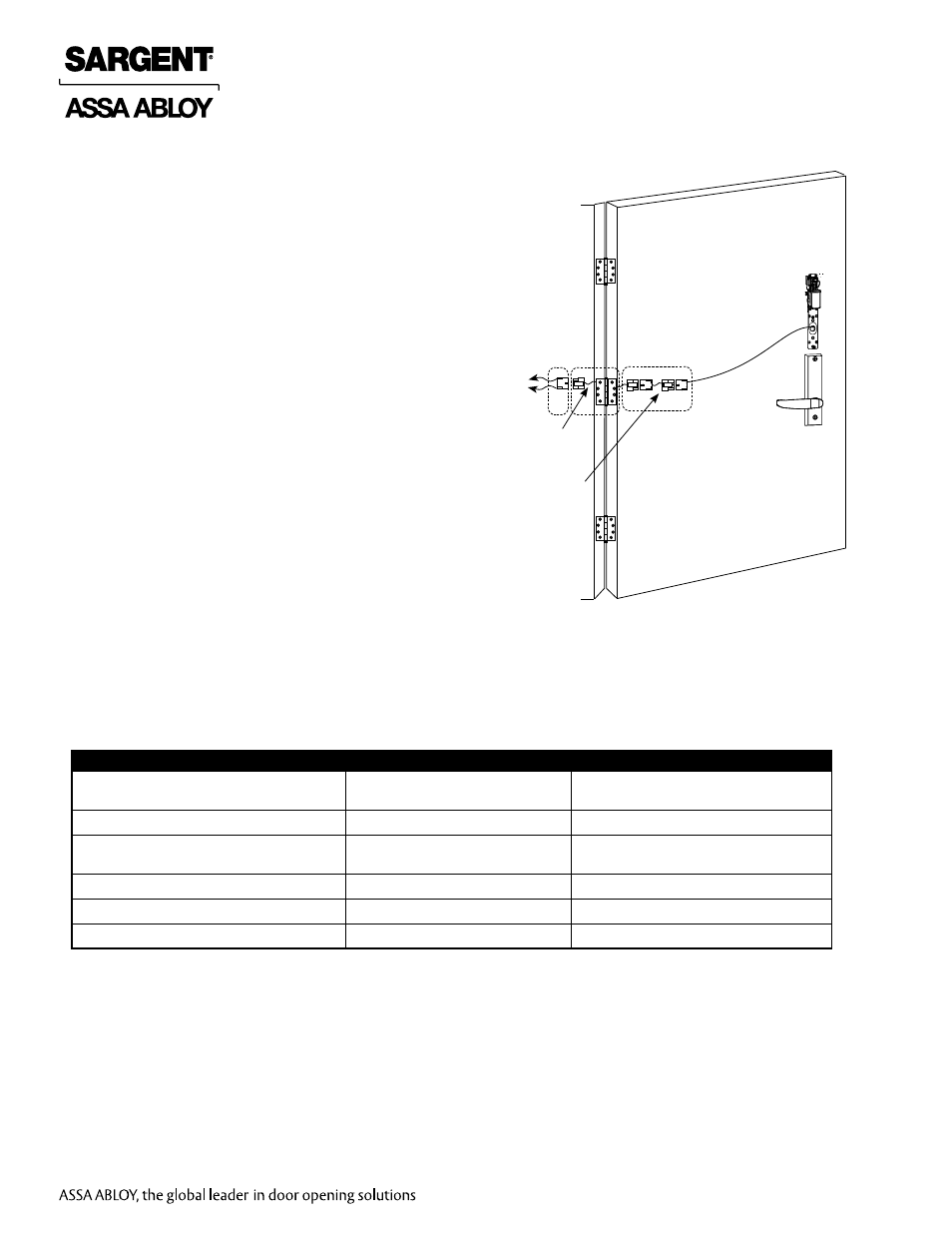

Fig. 2 POWER MODE Installation
SIgNal CauSE TROuBlEShOOTINg
Dark / Unlit Controller microprocessor
is not active
Confirm connections and incoming
power
Steady Flashing (GREEN) Normal operation Check that POWER MODE switch is set
Solid Light (GREEN) Input voltage is dropping out of
operating range
Check wire run and power supply output
1 Flashes Followed by Pause (YELLOW) Retractor sensor problem Call 800-810-WIRE for assistance
2 Flashes Followed by Pause (YELLOW) Retractor sensor problem Call 800-810-WIRE for assistance
3 Flashes Followed by Pause (YELLOW) Retractor sensor problem Call 800-810-WIRE for assistance
2. LED Signalling Chart
Voltage: 12VDC
• Filtered and regulated power supply
• Motor operating current: 850mA
• Motor hold current: 250mA
