SECTION 6:
KEY SPARE PARTS
6.01 Power Source
Art # A-09657_AB

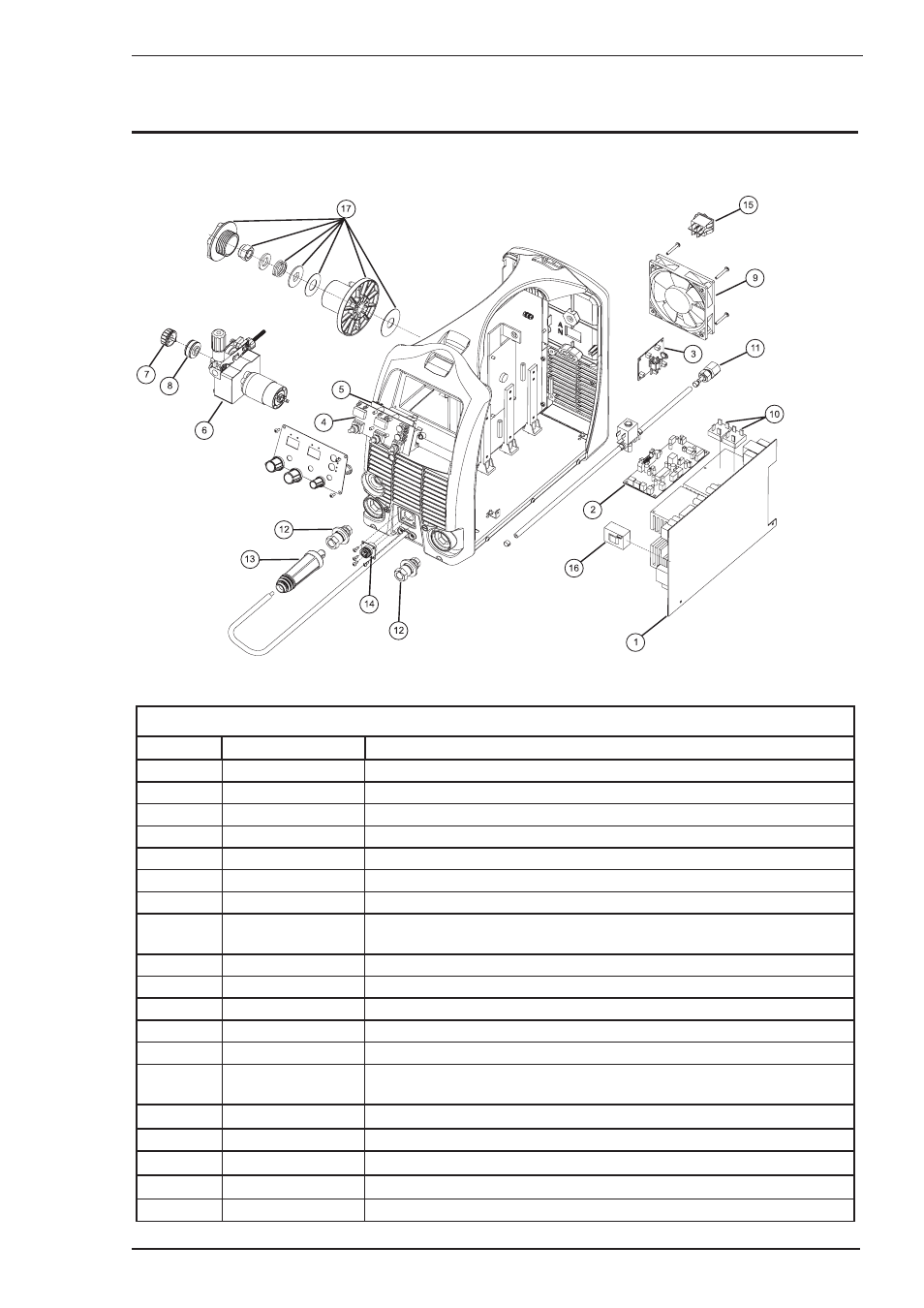

Figure 6-1
TRANSMIG 175i POWER SOURCE SPARE PARTS
ITEM PART NUMBER DESCRIPTION
1 W7004900 PCB Power
2 W7004901 PCB Control
3 W7004902 PCB EMC Filter
4 W7004903 PCB Front Panel (Display)
5 W7004904 PCB Front Panel (Piggy-Back)
6 W7004905 Wiredrive Assembly
7 W7004906 Feed Roll Retaining Thumbscrew
8 7977036
Feed Roll 0.6/0.8mm V groove (fitted as standard)
(Refer to options and accessories table for other feed rolls available).
9 W7004907 Fan Assembly
10 W7003010 Input Rectifier
11 W7004908 Gas Solenoid Valve Assembly
12 W7004909 Dinse Socket 50mm²
13 704461 Dinse Plug Male 50mm²
14 W7003036
Control Socket 8 pin (Note that 8 pin control plug part number is
UOA706900).
15 W7004910 Input Supply Switch
16 W7004911 CT, Output
17 W7004912 Wire Hub Assembly
18 W7004913 Shielding Gas Hose Assembly (not shown)
19 W7005635 Latch, Door, Slide (not shown)
Table 6-1
