TRANSMIG 175i
Manual 0-5143
4-11
BASIC WELDING GUIDE
Art # A-07687

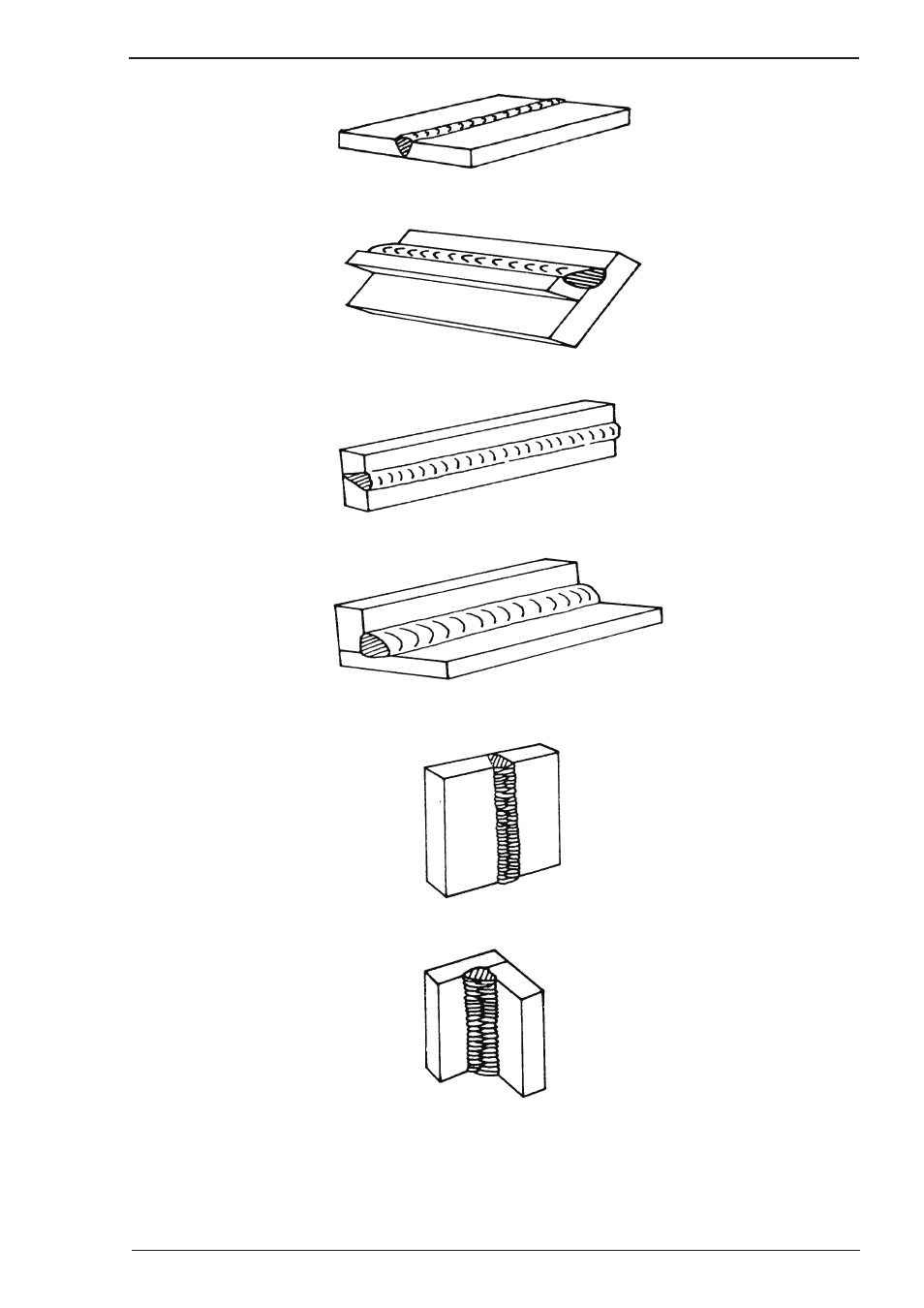

Figure 4-11: Flat Position, Down Hand Butt Weld
Art # A-07688
Figure 4-12: Flat Position, Gravity Fillet Weld
Art # A-07689
Figure 4-13: Horizontal Position, Butt Weld
Art # A-07690
Figure 4-14: Horizontal-Vertical (HV) Position
Art A-07691
Figure 4-15: Vertical Position, Butt Weld
Art # A-07692
Figure 4-16: Vertical Position, Fillet Weld
