3.19 Install TSC-3000 Touch Screen Control

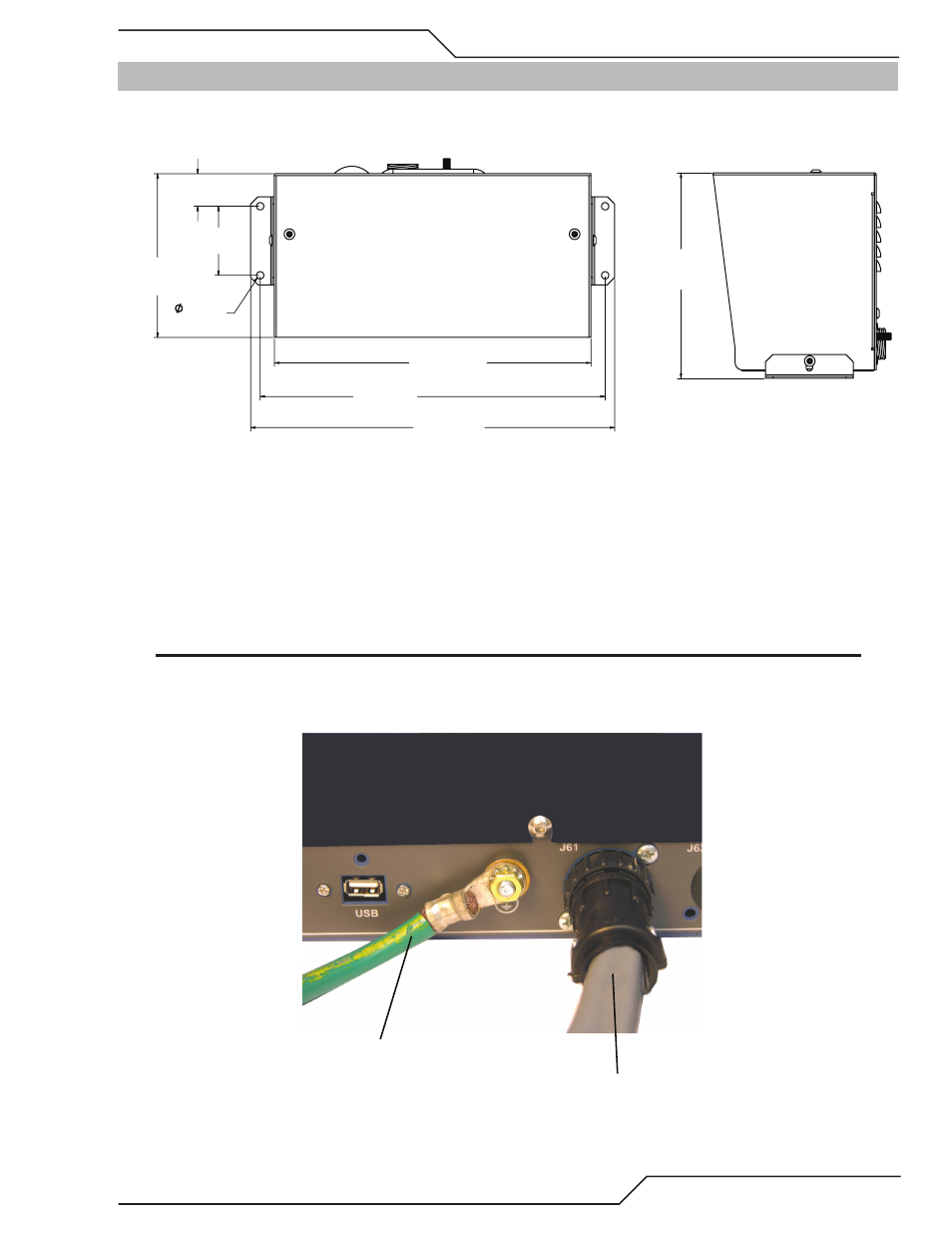

Mounting Dimensions
6.99 in
[177.5 mm]
TSC-3000 Profile
5.58 in
[141.7 mm]
2.35 in
[59.69 mm]
1.11 in
[28.2 mm]
12.45 in
[316.2 mm]
.25 in
[6.35 mm]
11.80 in
[299.7 mm]
10.83 in
[275.0 mm]
TSC-3000 Top
Art # A-09156
Preparation
1. Select a clean, dry location with good ventilation and adequate working space around all components. Review
the safety precautions in the front of this manual to be sure that the location meets all safety requirements.
The TSC-3000 mounting brackets allow for mounting on or under a horizontal surface as well as left or right
of a vertical surface. Choose which ever works best for protection against moving equipment and flying
metal/cutting debris etc..
2. Once the unit has been secured to a flat surface, attach Communication cable (“V” which is already attached
to the CCM done in sub section 3.10) and ground cable (“F”) to the rear of the unit.
NOTE
Make sure the CCM CPU jumper is set to 2 Wire (2W) noted earlier in section 3.13 and in the Appendix.
Communication Cable to/from
CCM rear of power supply
Ground Cable to/from
“Star” ground on table
Art # A-09157_AC
