ULTRA-CUT 100 XT
Manual 0-5303
INSTALLATION
3-23
6. Install WMS Water Softener Kit in the line that feeds the inlet side of the DMC-3000. Mount the softener and
bracket on the power supply where the provided 2’ hose can reach to the DMC-3000. Mounting in another

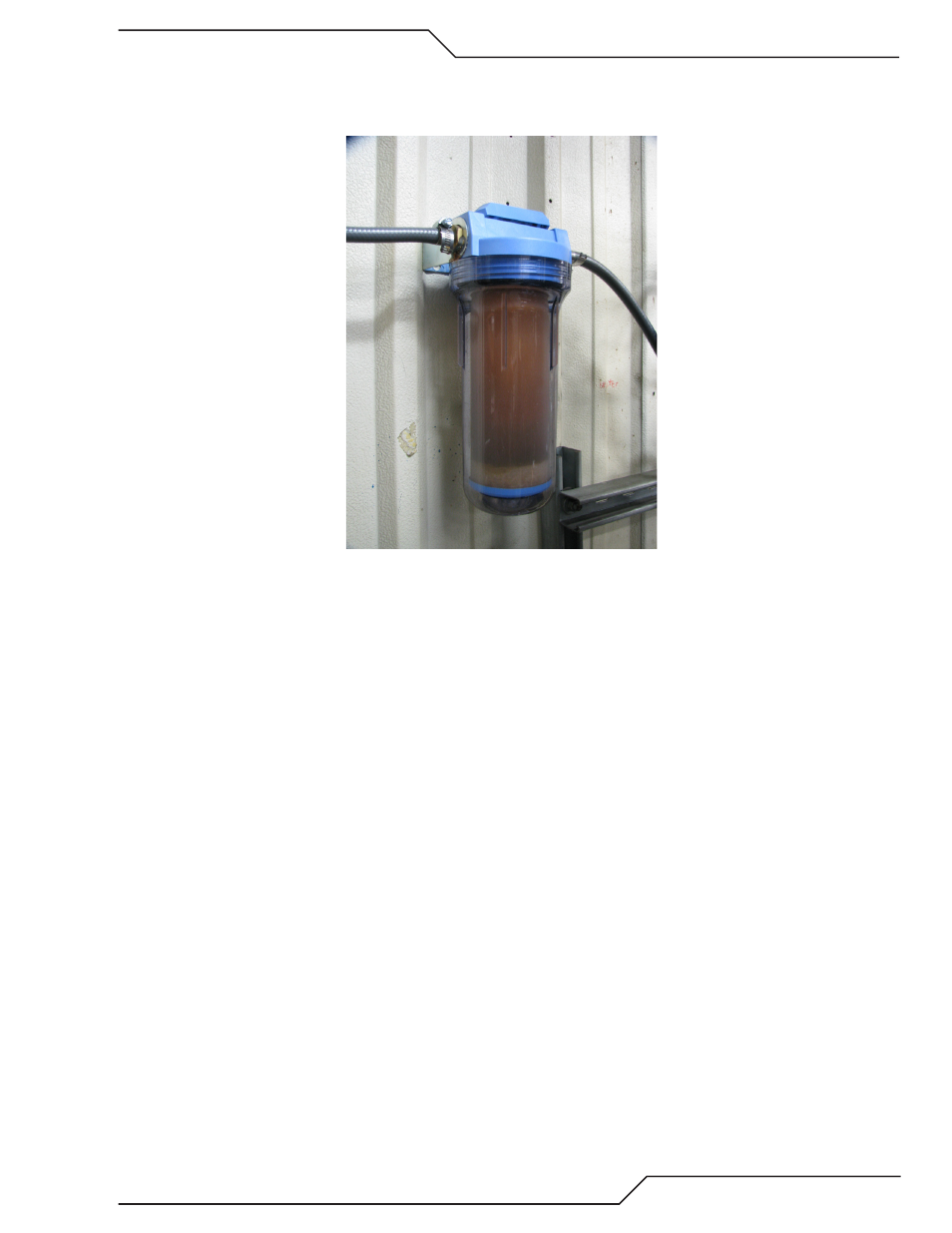

location is possible with a customer provided hose. Below is typical customer added hose and installation.
Art # A-09655
7. Make sure that the hose going to the DMC-3000 is connected to the port on the WMS Water Softener marked
“OUT” and the incoming water supply connected to the port marked “IN”. Do not mount over any electronics
or outlets in case of leaks during operation or spills when changing the element at a later date.
