ULTRA-CUT 100 XT
Manual 0-5303
APPENDIX
A-5
5
OK to Move2 – Provides a second set of N.O. contacts that close when arc transfer is detected. Contacts are
rated for maximum of 24 VAC/DC @ 1A. Simplified CNC Circuit.
5

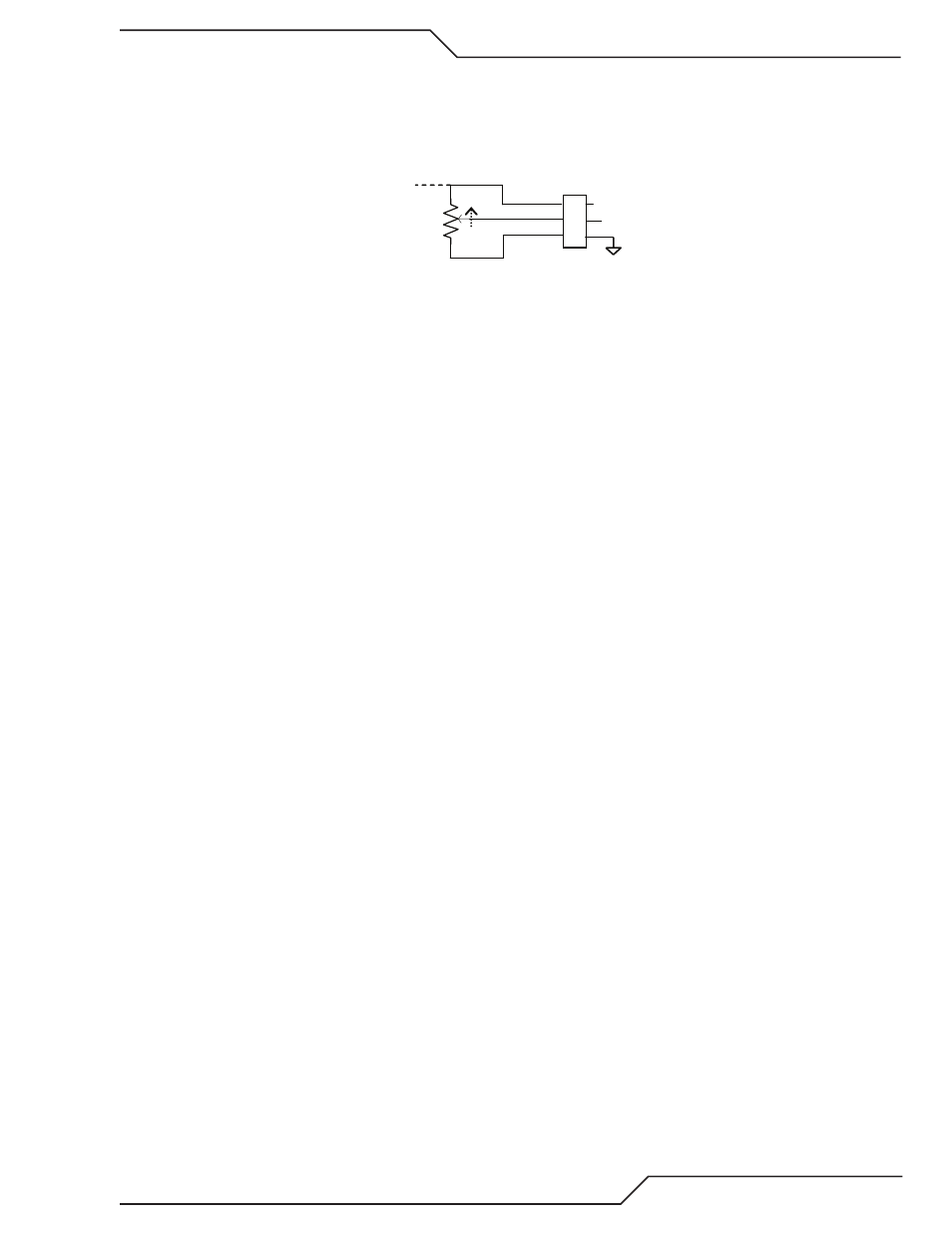

+10V @ 10ma. For Remote CC Pot – Previously CCM versions if one wanted to use a potentiometer for the Re-
mote Analog Current Control (CC) input an external 10 V supply was required for Pot High.. Now an isolated (from
main plasma circuits) 10V supply is provided. Recommended value of the pot is 5K or 10K.
Ext. +10V
11
10
9
TB1
+10V
WIPER
Art # A-09246
5
Plasma Marking Select (Remote) – Plasma Marking, available only with DFC 3000, may be activated with a
contact closure between TB3-1 & TB3-2 if SW8-4, DIP switch on the CPU board (smaller of the 2 CCM boards),
is also on. Opening the connection between TB3-1 & TB3-2 switched back to normal cutting mode. For Ultracut
power supplies It is OK to leave SW8-4 on whether you are marking or not.
The following functions may not yet be available on your system. *
*Corner Current Reduction (input)--- When activated, normally from a table controller’s corner or height control
inhibit signal, signaling that the cutting speed is being reduced to navigate a corner or small radius, the cutting cur-
rent is reduced at a fixed rate to a predetermined level to provide an improved cut at the lower speed.
*Cut Expanded Metal (input)---Normally the plasma supply is optimized for pierce cutting, high pierce height
directly above the metal to be cut, short pilot time, etc. Activating this input adjusts the plasma supply to optimize
it’s parameters for cutting expanded metal, perforated metal, running edge starting, etc. Among other changes the
transfer height is reduced to same as cut height. In addition to activating the Cut Expanded Metal input CCM switch
SW1-1 should be turned on automatically restart the pilot and SW8-1 set on for longer pilot time.
*Spare contacts --- .
