ULTRA-CUT 100 XT
Manual 0-5303
INSTALLATION
3-19
2 - Wire and 4 - Wire settings

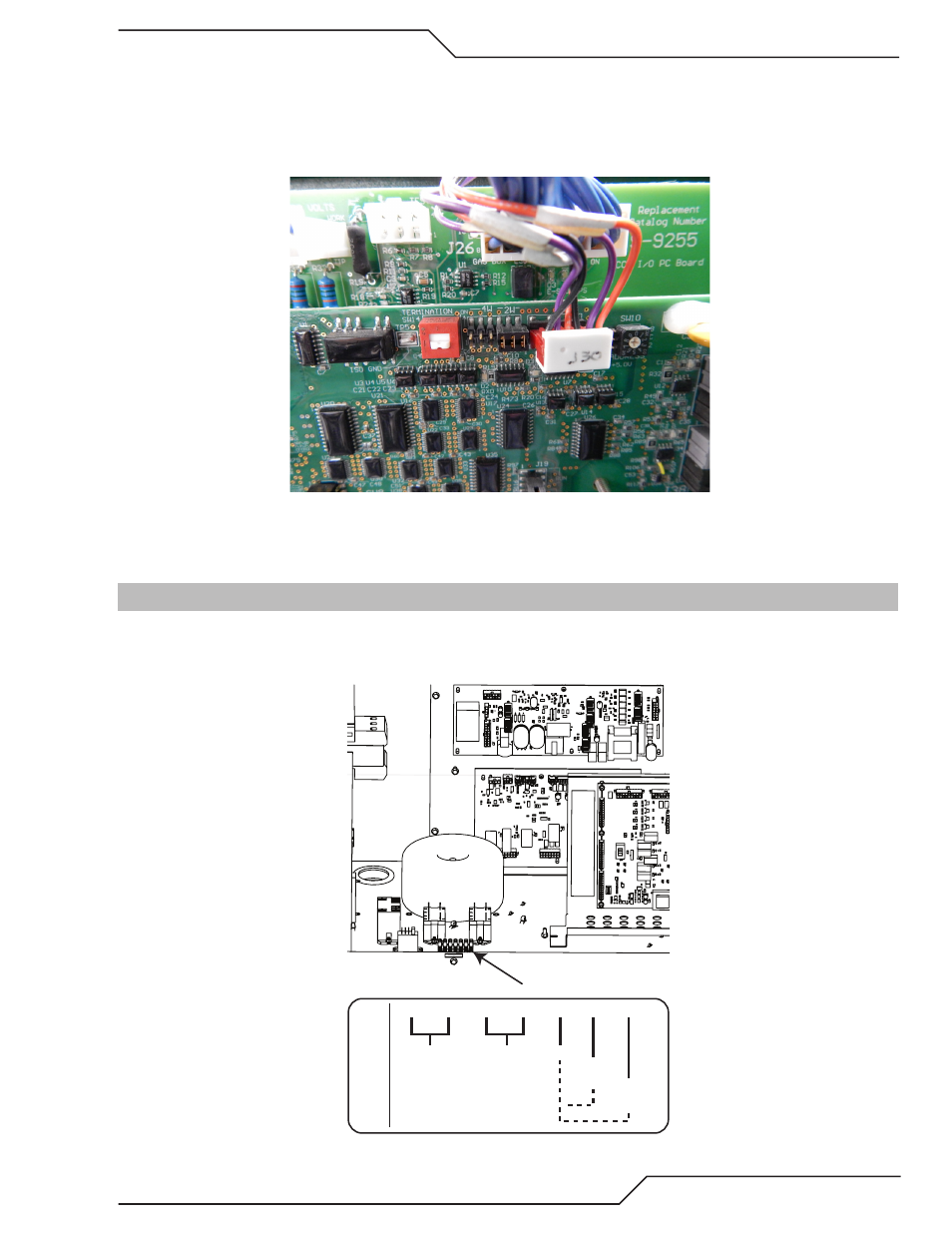

When used with the TSC-3000 the plug should be in the 2 wire (2W) position shown below.
For other CNC controls using � wire communication such as the XT iCNC, place the jumper in the �W position.
Art # 12322
3.14 Height Control Connections
The terminal strip provides connections to negative Arc Volts (Torch or electrode), Tip Volts (Pilot) and Work.
These are for a height control that requires connection to the full non-divided arc voltage. Also available on the
terminal strip are 120VAC and 2� VAC. The allowable current draw is 100ma @ 120VAC and 1Amp @ 2� VAC.
Art # A-11900
24 VAC
@ 1A
TB4
1
2
3
4
5
6
7
120 VAC
@ 100 ma.
Work
Tip Volts
(Pilot)
Arc Volts
(Torch)
Art # A-11954
