ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
3-46 INSTALLATION Manual 0-5297

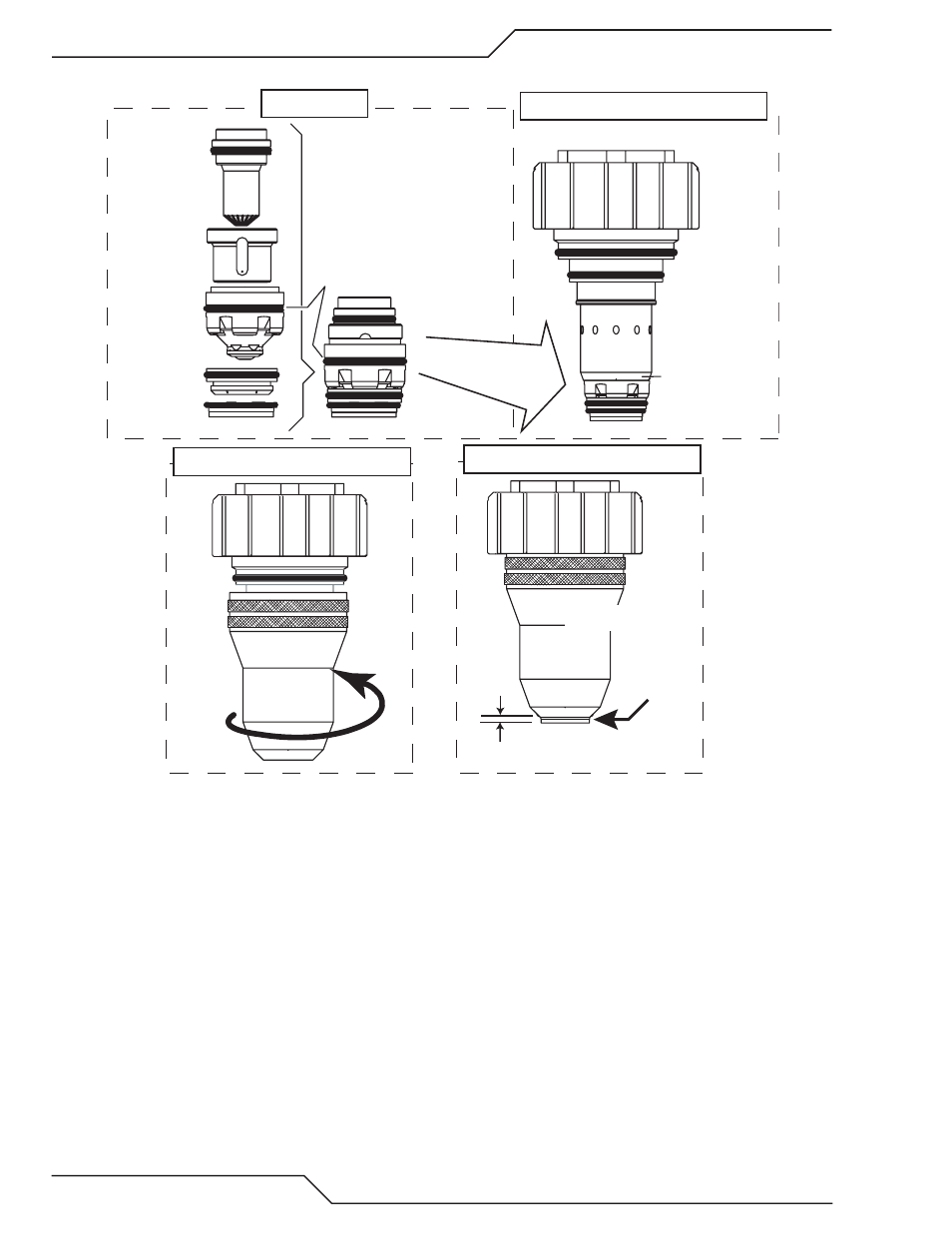

30 - 100 Amp Parts Assembly
Cartridge Covers
O-Ring
on Torch Tip
Shield Cap Protrudes
0.063-0.083" (1.6 - 2.1 mm)
Electrode
Plasma Gas
Distributor
Tip
Shield Gas
Distributor
Shield Cap
O-Ring
on Tip
1: Stack Parts 2: Press Cartridge onto Stacked Parts
4: Check Shield Cap Protrusion
Art # A-04873
No Gaps
Between Parts
3: Thread Shield Cup onto Cartridge
Shield Cap
Shield Cup
Installing Assembled Cartridge Onto Torch Head
