ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
3-40 INSTALLATION Manual 0-5297

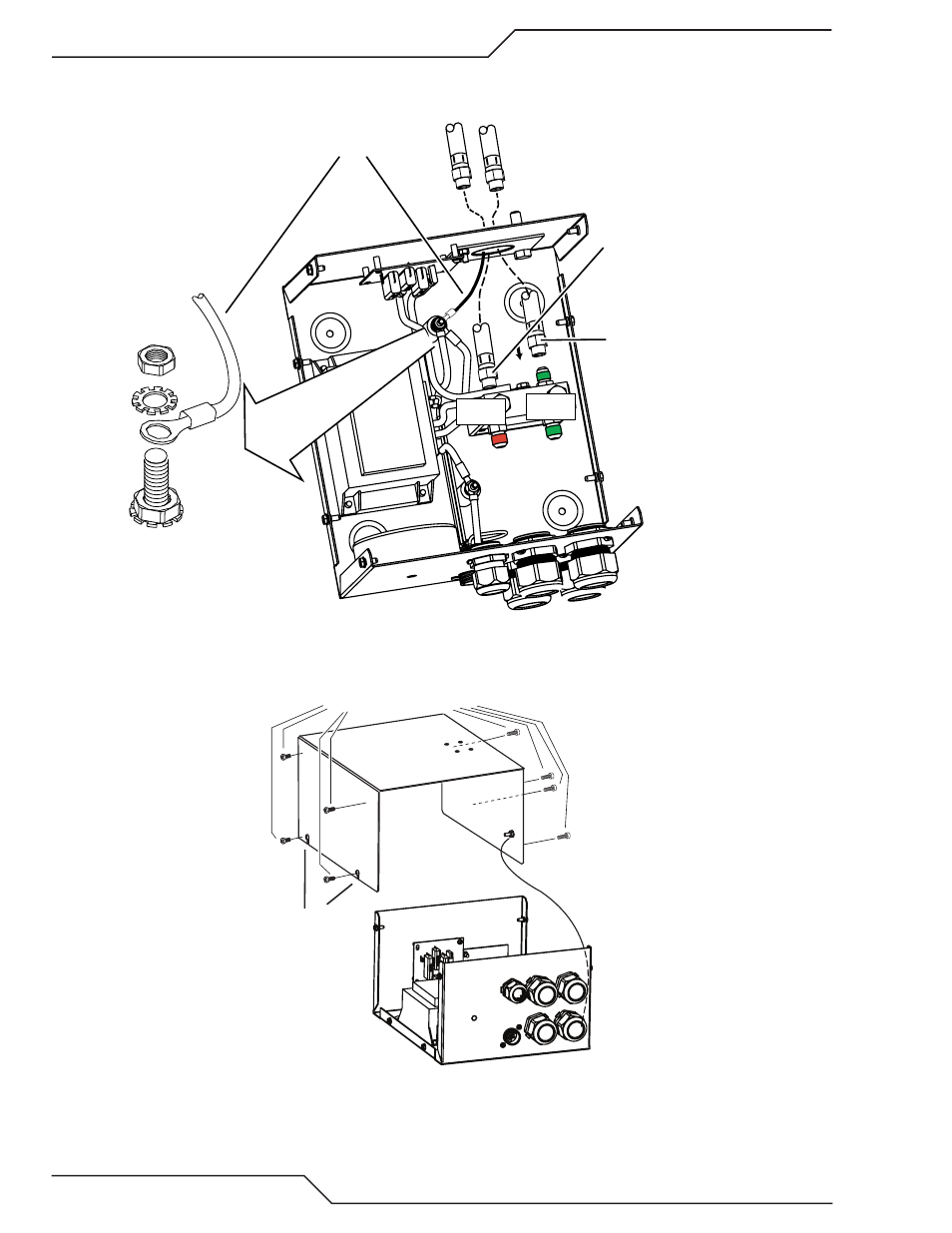

Output Connections
1. Refer to the illustrations. Make the following output connections to the Arc Starter.
Pilot Lead
Art # A-12065
Green
Red
Coolant Return (Red)
Coolant Supply (Green)
Pilot Return Cable and Coolant Supply and Return Hoses (from Torch)
2. Reinstall the Arc Starter Cover. Ensure that the ground wire is not crimped between the cover and the base.
Art # A-12059
Lower screws
(2 per side)
Upper screws (2 per side)
Cover
Ground Wire
