ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
Manual 0-5297 TORCH INFORMATION 7-1
SECTION 7: TORCH MAINTENANCE
7.01 Consumable Removal

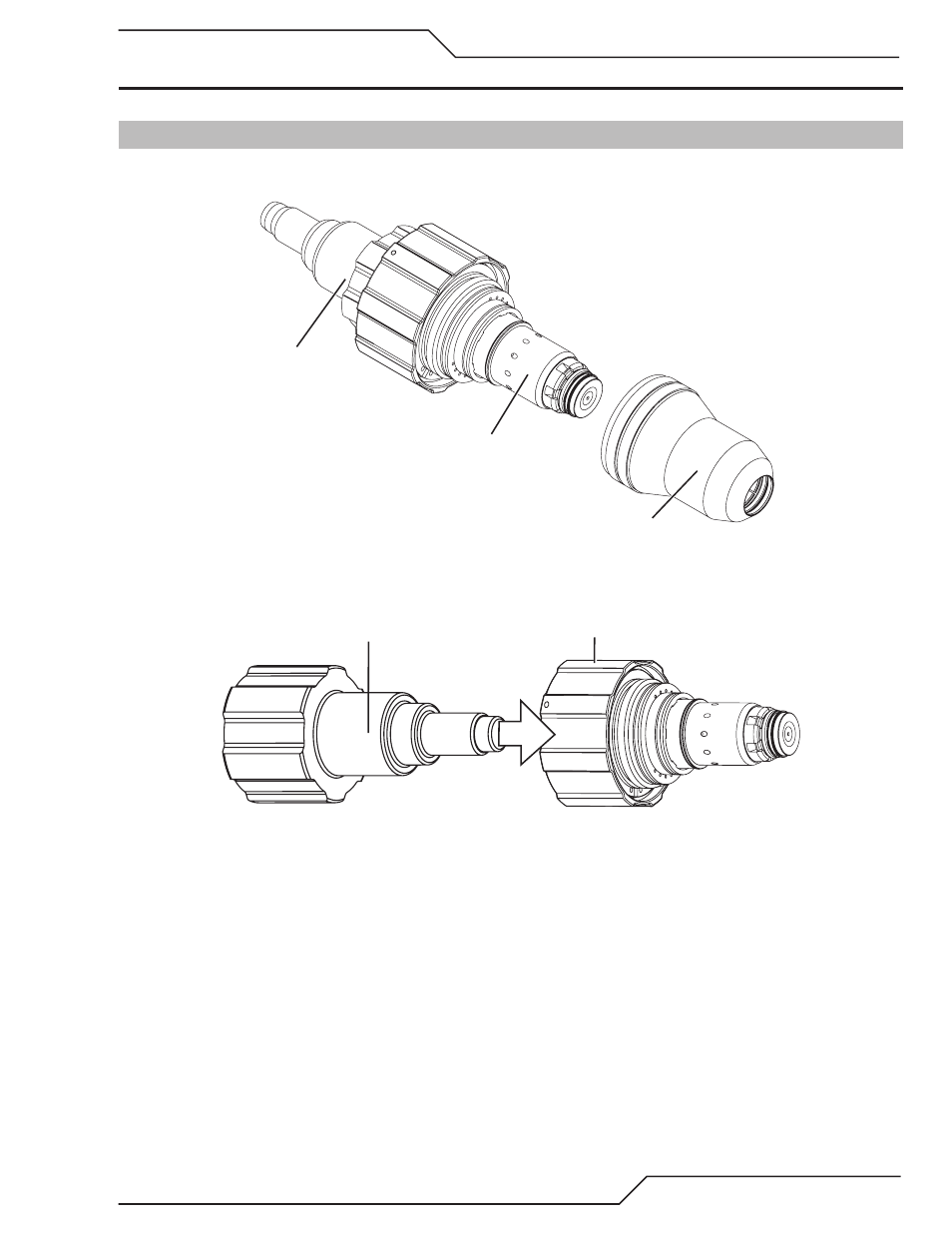

1. Use the removal tool to hold the Shield Cup & Cartridge Assembly stationary. Turn the Shield Cup to remove
it from the Cartridge Assembly.
Assembled Cartridge
Cartridge Tool
Shield Cup
Art # A-04344_AB
2. Take the Removal Tool off the back of the Cartridge Assembly Use the removal tool to push the consumable
parts out of the Cartridge.
Cartridge Tool Cartridge Assembly
Art # A-04345_AB
