ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
Manual 0-5297 INSTALLATION 3-11

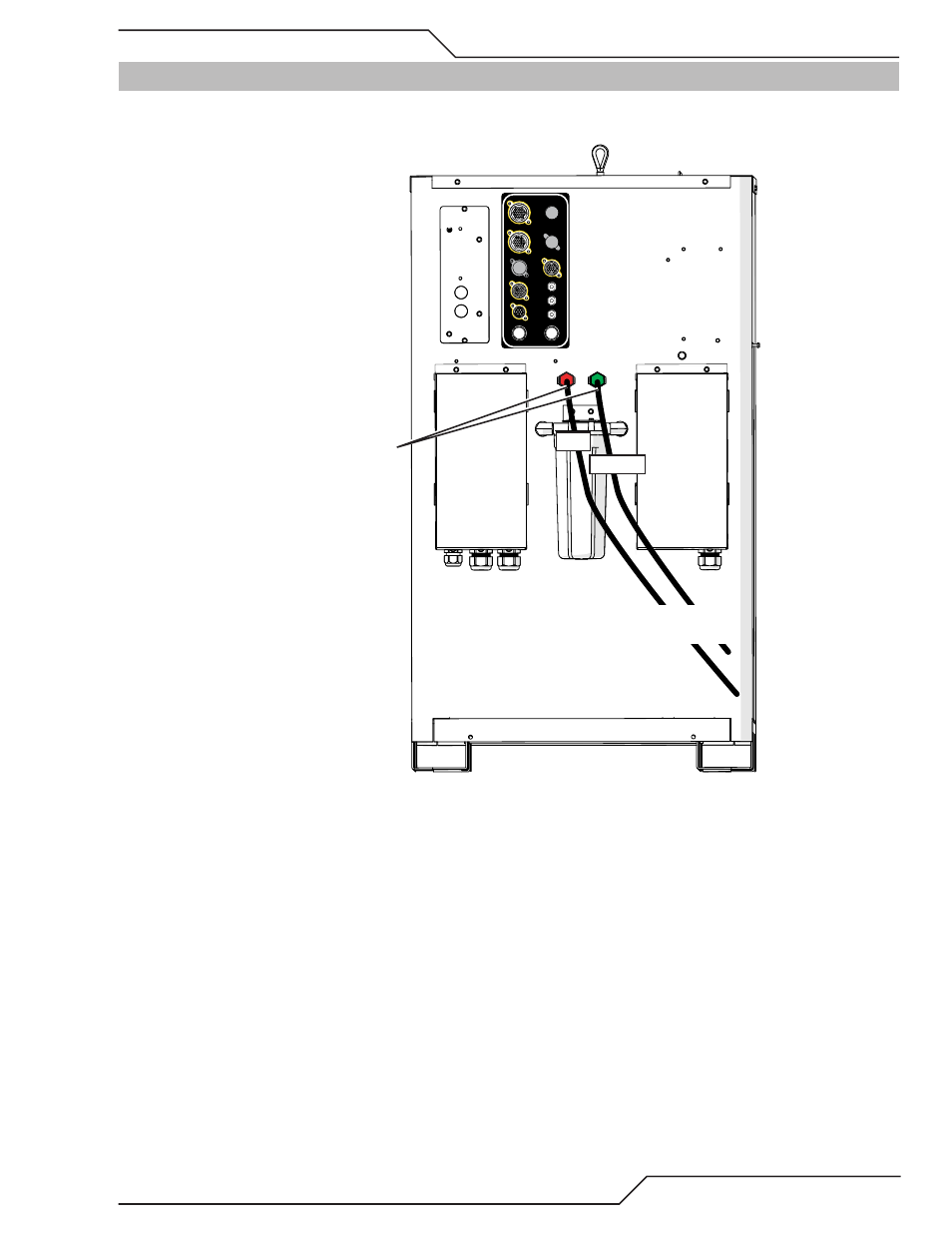

3.11 Connect Coolant Leads
1. Connect the color-coded coolant hoses to the coolant connections on the power supply rear panel. The sup-
ply line (out) is flagged green, the return line (in) is flagged red.
COOLANT
RETURN SUPPLY
Coolant Connections
RED
GREEN
To RAS 1000 Arc Starter or
HE-400 Heat Exchanger if used
Art # A-11534_AB
USER INPUT
HEIGHT CONTROL
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB4 - 5A 120 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
J55 - GCM
J15 - CNC
J59 - RAS
J70 - HE
J54 - TSC /COMM
