ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
Manual 0-5297 INSTALLATION 3-27
6. Install WMS Water Softener Kit in the line that feeds the inlet side of the DMC-3000. Mount the softener and
bracket on the power supply where the provided 2’ hose can reach to the DMC-3000. Mounting in another

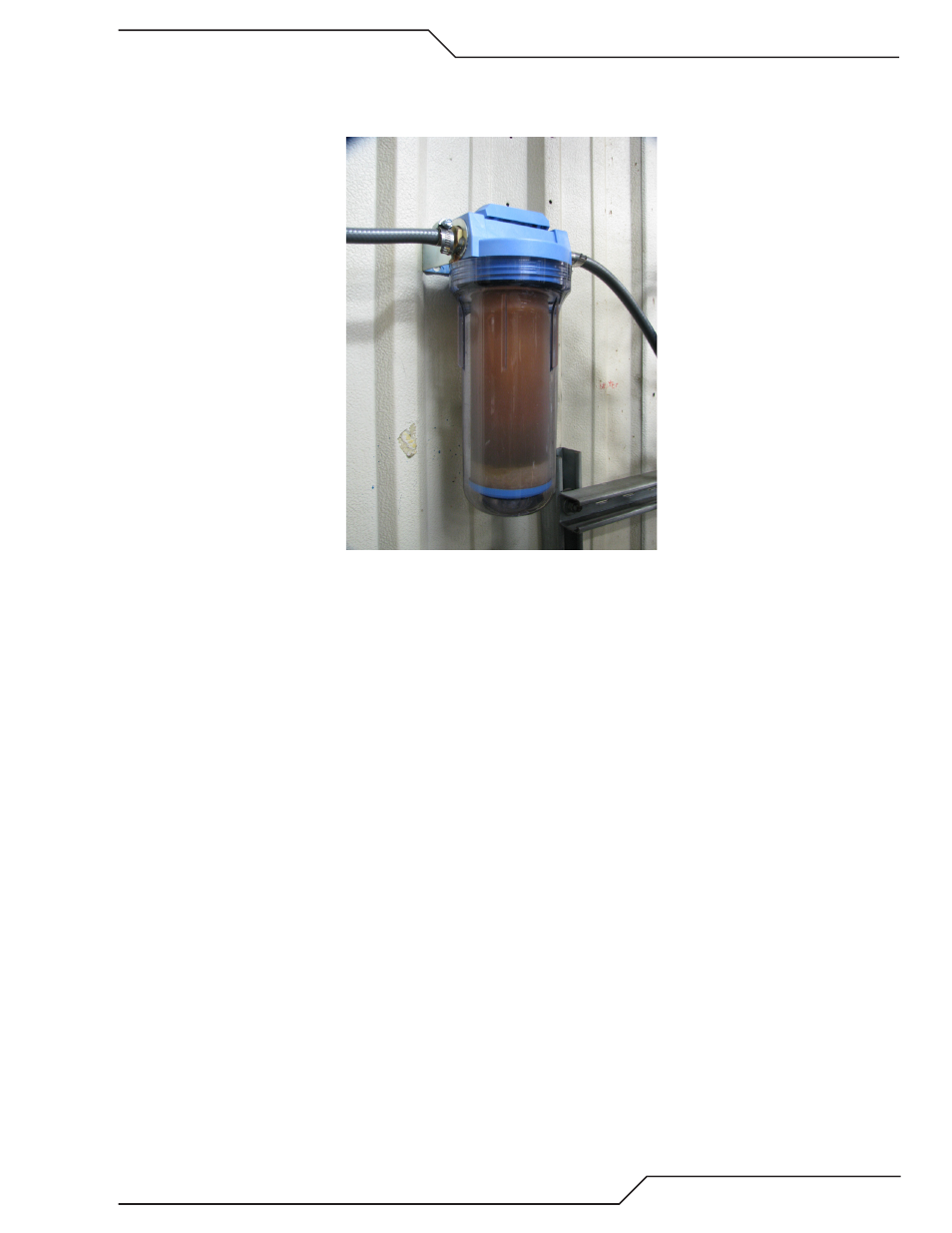

location is possible with a customer provided hose. Below is typical customer added hose and installation.
Art # A-09655
7. Make sure that the hose going to the DMC-3000 is connected to the port on the WMS Water Softener marked
“OUT” and the incoming water supply connected to the port marked “IN”. Do not mount over any electron-
ics or outlets in case of leaks during operation or spills when changing the element at a later date.
