ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
Manual 0-5297 INSTALLATION 3-41

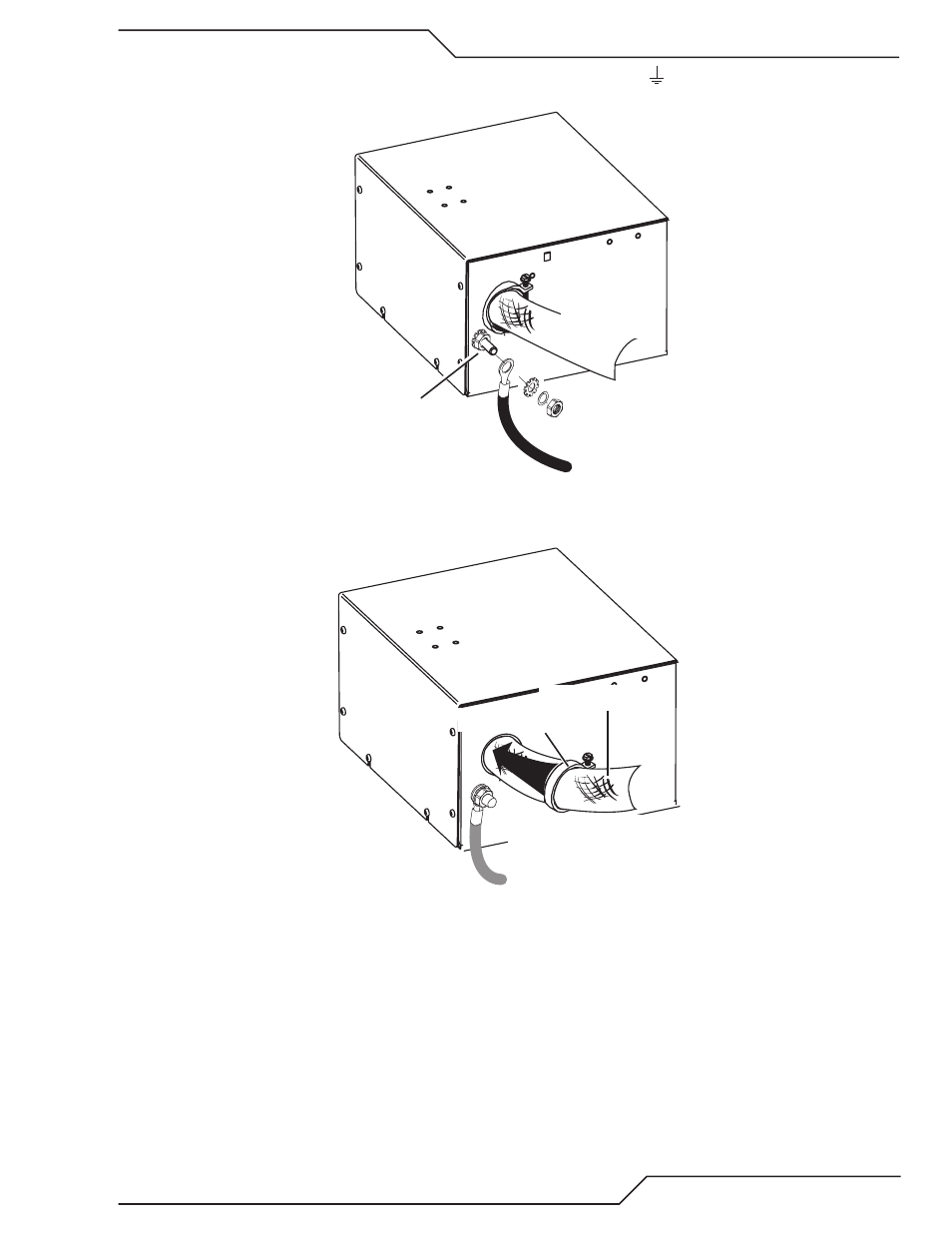

3. The Arc Starter must be grounded; the grounding terminal is marked . Refer to the previous section for
grounding details.
Ground Cable
Art # A-04758
1 Nut and 1 Washer
Remain in Place
Torch Leads
4. Use a clamp to secure the Torch Lead Shield braid brass ring to the port on the Remote Arc Starter as shown.
Art # A-04759
Coolant and Pilot Leads
to Torch Valve Assembly
Torch Leads Shield
Shield Clamp
