ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
3-34 INSTALLATION Manual 0-5297
4. Secure each of the thin nuts on the through hole protectors so both nut faces are tight against the sheet metal
inside and out.

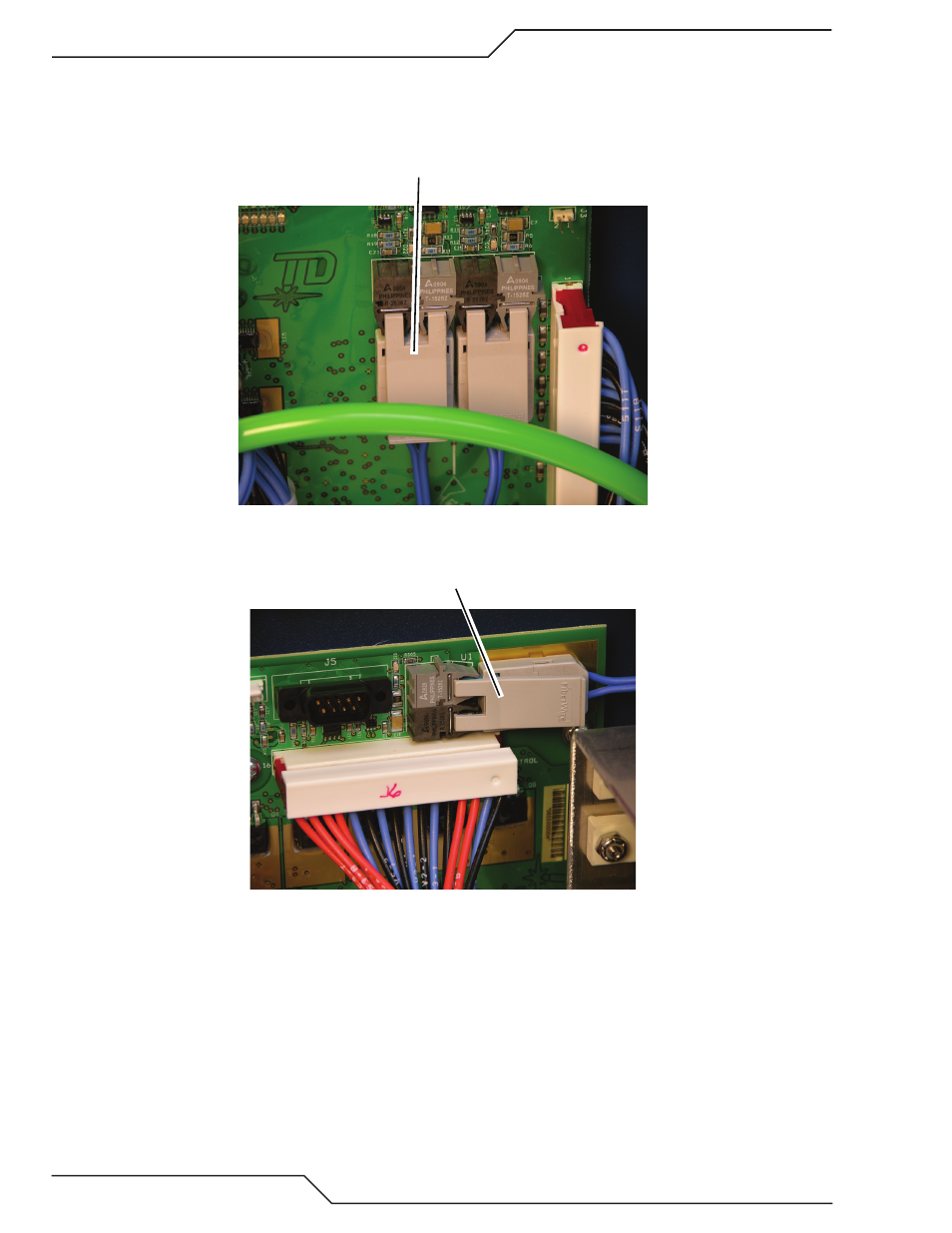

5. Plug the Fiber Optic Cable into the PCB as shown below for the DMC-3000. Make sure the locking tabs are
engaged.
Plug Fiber Optic cable to/from DPC-3000 here
Art # A-09154
6. Plug the Fiber Optic Cable into the PCB as shown below for the DPC-3000. Make sure the locking tabs are
engaged.
Fiber Optic to/from DMC-3000 plugs in here
Art # A-09155
7. Reinstall the Cover Panels making sure the wire harnesses are attached.
