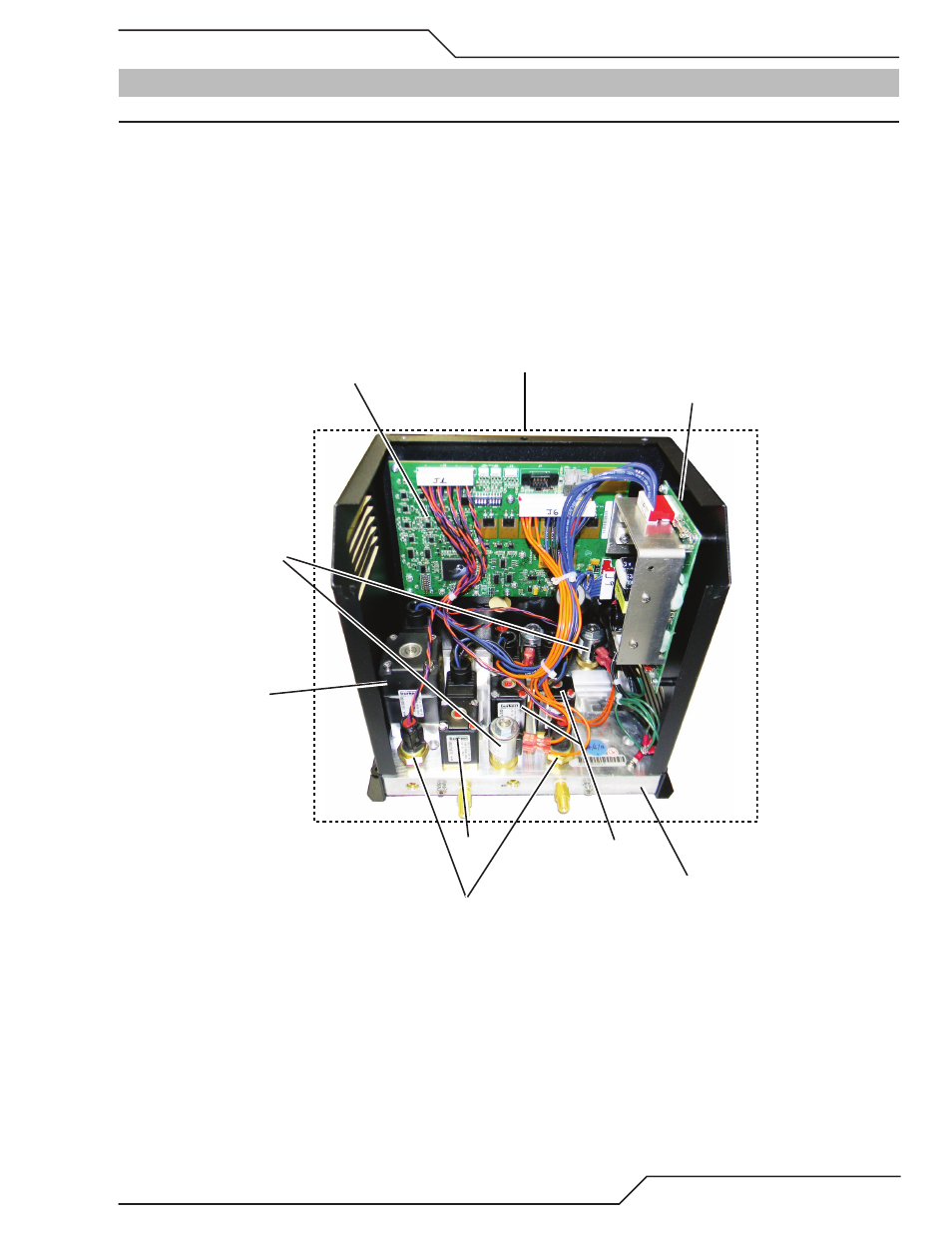

6.14 DPC-3000 Gas Control Module Replacement Parts
Item # Qty Description Catalog #
1 1 Assy, DPC-3000, Demo 9-9443D
2 1 DPC-PCB 9-8262
3 1 SMPS PCB 9-8263
4 1 Shield Gas P Valve 9-8267
5 1 Sensor, Pressure, 1/8mnpt (six total) 9-8269
6 1 Solenoid 9-8264
7 1 Plasma Lo and Pre-Flow P Valve 9-8268
8 1 DPC Manifold Fully Assembled 9-7658
Art # A-09164_AC
1
2
3
4
5
7
8
7
6
