ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
3-38 INSTALLATION Manual 0-5297
Input Connections

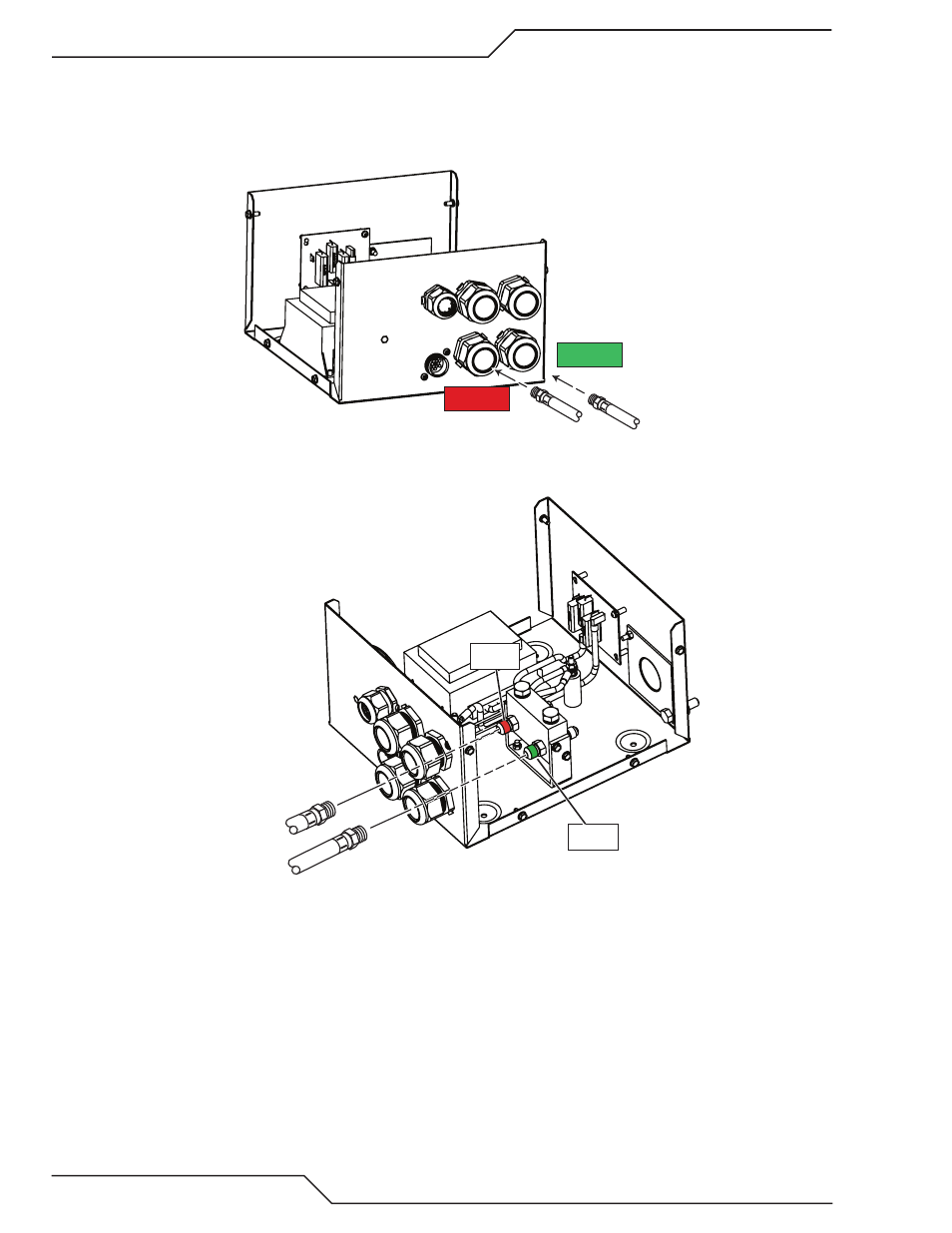

1. Refer to the illustrations. Make the following input connections to the Arc Starter.
• Coolant Supply and Return Hoses (from HE-400 Heat Exchanger). Hoses and connectors are color-
coded; Red for Return, Green for Supply.
Coolant Supply and Return Hoses
(from power supply)
Art # A-12061
Supply
Return
Coolant Return (Red)
Coolant Supply (Green)
Art # A-12062
Green
Red
