ULTRA-CUT 100 XT/200 XT/300 XT/400 XT
Manual 0-5297 INSTALLATION 3-39

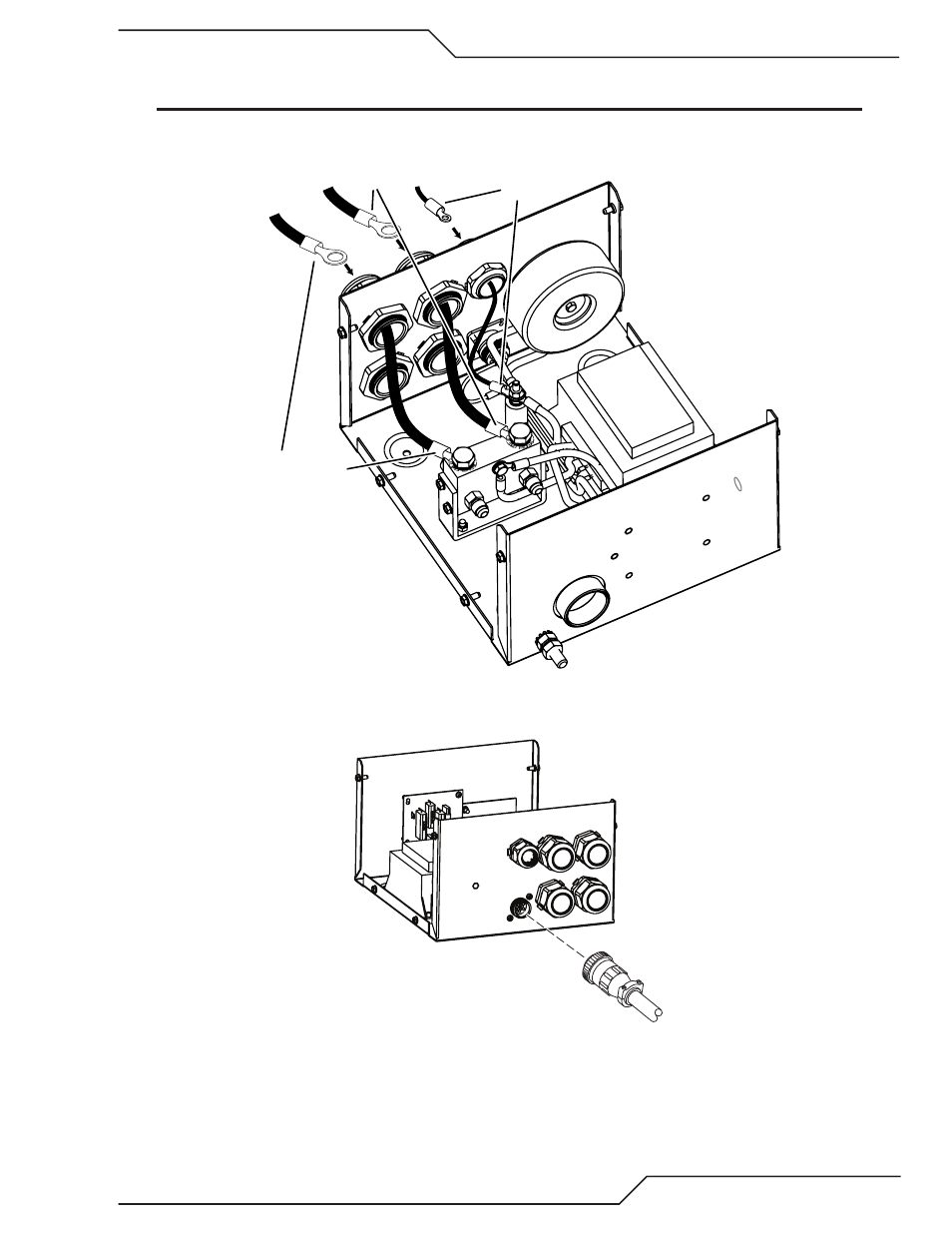

2. Refer to illustration. Connect the Pilot wire and Negative cables using a star washer on each.
NOTE
* Slave and Master refer to only those set ups using two power supplies in parrallel. Slave is not used
in single system operations.
*Negative (Master)
Torch Lead
Pilot
Art # A-12063_AB
*Negative (Slave)
Negative Master, Negative Slave and Pilot Cables (from Power Supply rear panel)
Art # A-12064
Control Cable from Power Supply rear panel
