SoundOff Signal LED3 Mini White Spot User Manual
Page 2
EL3SSCW 11.10
TECHNICAL SPECIFICATIONS
Overall Dimensions:
2.5”W x 1.375”H x 1.25”D
Input Voltage Range:
10-16Vdc OR 10-30Vdc
Current Consumption:
<0.4 amps
Light Sync Technology:
No
# of LEDs:
3 Generation 3 LEDs
Operating Temperature:
-40º to +65º C
TO USE THE ABOVE LAYOUT AS A TEMPLATE MEASURE THE
LINE BELOW. IF THE SCALE IS CORRECT THE LINE WILL BE 3”
LONG. IF IT IS NOT, ENLARGE OR REDUCE ON A COPIER CAPABLE
OF SUCH SCALING.

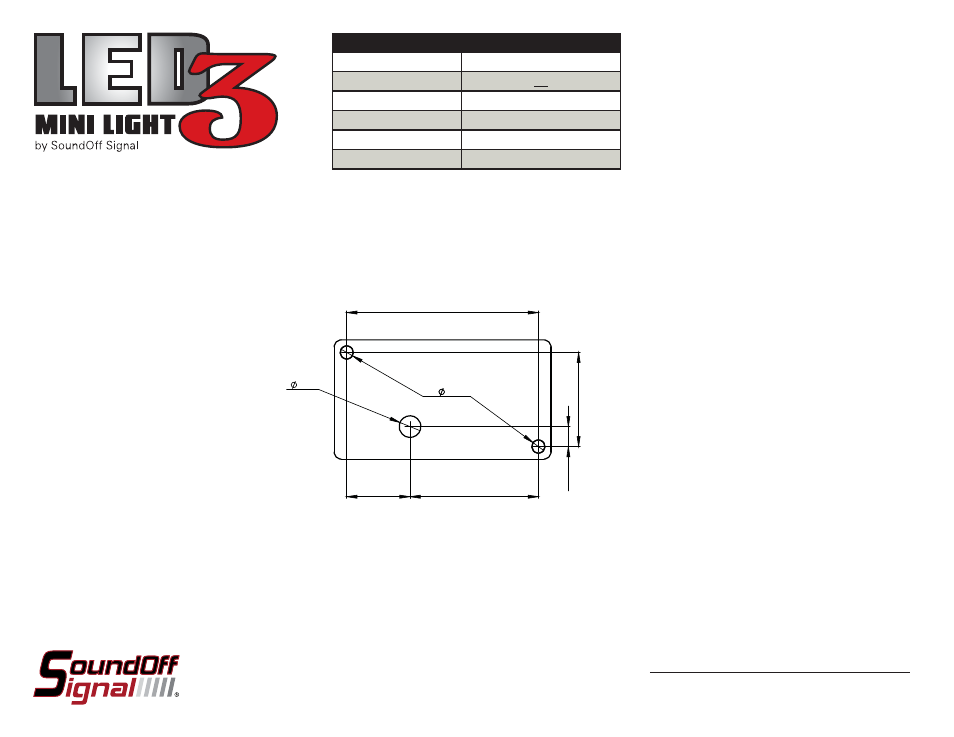

Drill Template for Mounting Holes/Cord Entry (See note
below)
LED3 SURFACE MOUNT SPOTLIGHT
WIDE ANGLE OPTICS/STEADY BURN
EL3SSCW 10-16Vdc
EL3SS30CW 10-30Vdc
2.21
1.09
0.73
1.48
0.23
2x 3/32"
2x 3/32"
0.25
