Skyfire™ LED Lightbar Owner's Manual ESF1ØØØ.pdf ~ Rev. 01.12 Pg. 2

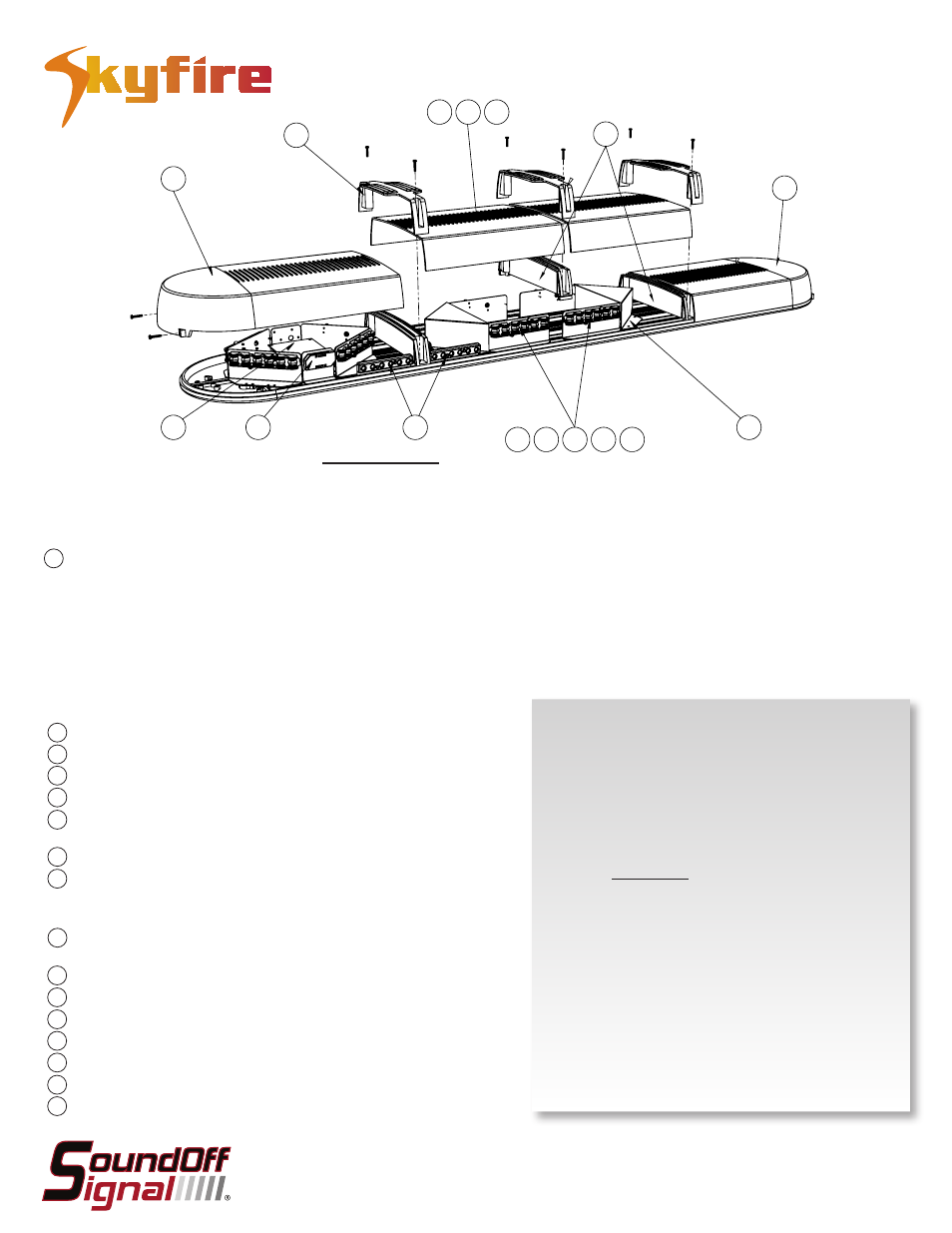

#ESF1 ØØØ Skyfire™ LED Lightbar
LED Lightbar
tm
16
11 25
12
4 19
12
17
13 14 15
20 21 22 23 24
#PESF1KØØ .............. LOW PROFILE BRACKET (ea.)
#PETLKØ6 ................. HEADACHE RACK BRACKET (ea.)
#PESF1HK16............. FLAT MOUNT HARDWARE KIT
4 #PESF1EØØ .............. MOTHERBOARD
#PESF1HNLTD .......... LED TAKE DOWN/WORK LIGHT INTERNAL HARNESS
#PESF1HNHTD ......... HALOGEN TAKE DOWN/WORK LIGHT HARNESS
#PESF1HNST1 .......... HARNESS FOR STT MODULE (Wire Exit Side)
#PESF1HNST2 .......... HARNESS FOR STT MODULE (Non-wire Exit Side)
#PESF1HNCTD ......... 4 PIN LED TAKE DOWN/WORK LIGHT EXTERNAL CONTROL HARNESS
#PESF1HNWM ......... OPTIONAL WARNING MODULE HARNESS
#PESF1SM1 ............. SMART MIRROR (1-piece)
11 #PESF1SM2 ............. SMART MIRROR (2-piece Diamond)
12 #PESF1ECD(x)* ........ END CAP DOME - All Lengths
13 #PESF1M48D(x)* ..... CENTER DOME - 48”
14 #PESF1M55D(x)* ..... CENTER DOME - 55”
15 #PESF1M6ØD(x)* ..... CENTER DOME - 60”
*(x)=Dome color: C=Clear or R=Red
16 #PESF1BRDC ............ BRIDGE - Clear
17 #PESF1DVDC ............ DIVIDER - Clear
#PESF1HH1C ............ HALOGEN TAKE DOWN/WORK LIGHT
- Requires Harness #PESF1HNTD
19 #PESF1HL6W ........... LED TAKE DOWN/WORK LIGHT
- Requires Harness #PESF1HLTD
20 #PESF1LS6A ............ LED WARNING MODULE - Amber
21 #PESF1LS6B ............. LED WARNING MODULE - Blue
22 #PESF1LS6G ............. LED WARNING MODULE - Green
23 #PESF1LS6R ............. LED WARNING MODULE - Red
24 #PESF1LS6W ........... LED WARNING MODULE - White
25 #PESF1ST3R-D ......... LED STT MODULE w/ HARNESS - Red (Wire Exit Side)
25 #PESF1ST3R-P ......... LED STT MODULE w/ HARNESS - Red (Non-wire Exit Side)
Replacement Parts & Accessories:
Module Replacement or Reconfiguration:
1) Remove outer dome & bridges as needed to access
module location.
2) Remove unwanted module and install new module with
screws provided.
DO NOT OVERTIGHTEN SCREWS!
TORQUE MUST NOT EXCEED 10 inch-pounds!
4) Test new module for functionality.
5) Reassemble components.
DO NOT OVERTIGHTEN SCREWS!
