Preparation for Using the Machine
1
3. Overview and Functions of the Machine

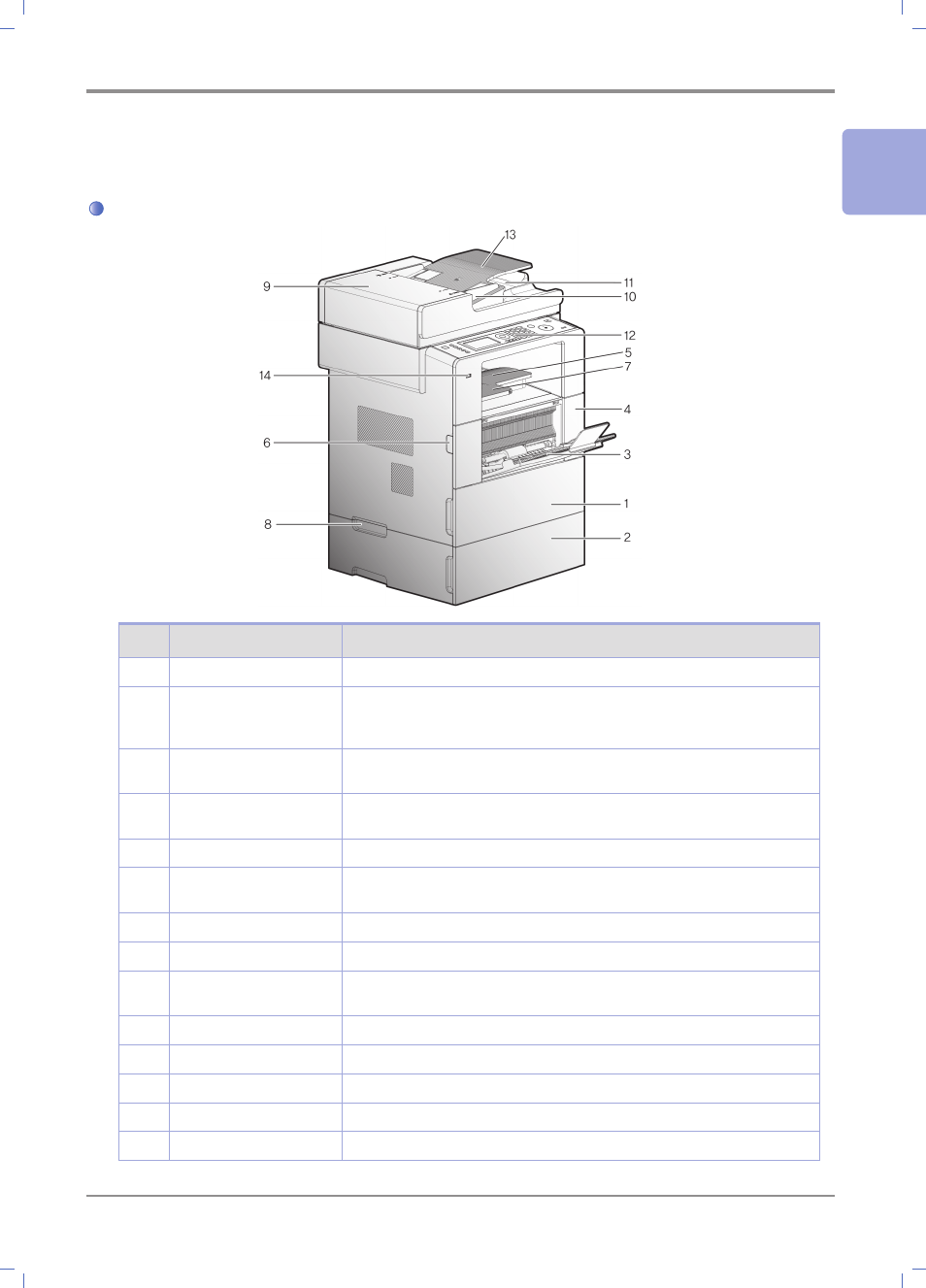

Names and Functions of Each Part(Front view)
No. Name of Part Description
1 Tray 1 500 sheets of paper (Based on 75g/m (20lb) paper)
2 Tray 2 Optional paper tray for 500 sheets.
(Based on 75g/m (20lb) paper) : Need to purchase this tray separately
unless it is provided by default.
3 Multi-purpose Tray A feeder for plain paper, labels, envelopes or so by opening the extension
support.
4 Front Cover The cover can be opened for installing the cartridges or checking inside of
the machine.
5 Output Bin A tray for printed output paper.
6 Front Cover Opening
Lever
A lever for opening the front cover.
7 Output Tray Copied or printed paper exits to this tray.
8 Handle Use this handle to grip for moving the machine or installing the optional feeder.
9 ADF(Auto Document
Feeder) Cover
Open this cover to remove jammed paper.
10 ADF Guide Adjust or guide the document alignment for ADF feeding.
11 ADF Output Tray A tray for output of the original documents from ADF.
12 Control Panel Consisting of various function keys and LCD windows.
13 ADF Input Tray ADF input tray for up to 50 sheets of the original documents.
14 USB Memory Port A port to connect USB memory modules.
