TI593UBS Page 7

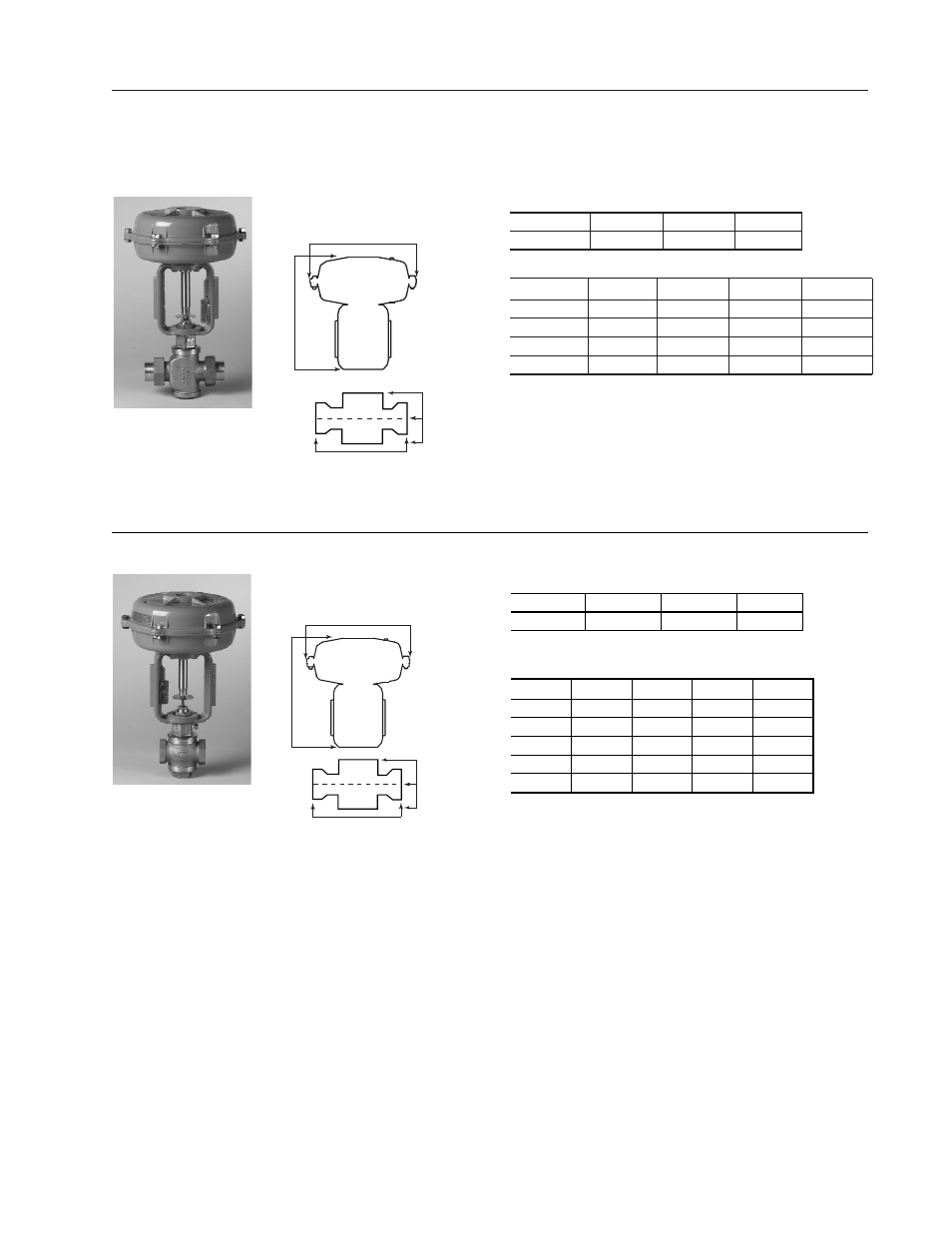

FLOWRITE II DIMENSIONAL DATA
Pneumatic Actuators
Actuator* A B lbs.
46 ″ 10 ″ 10-3/8 ″ 14
Valve Body
Size C D E lbs.
1 ″ 6-5/8 ″ 2-1/8 ″ 3-5/8 ″ 7
1-1/4 ″ 7 ″ 2-7/18 ″ 3-5/8 ″ 9
1-1/2 ″ 7-7/8 ″ 2-9/16 ″ 3-3/4 ″ 10
2 ″ 9-7/32 ″ 3-5/8 ″ 4-13/16 ″ 21
A
B
C
E
D
ACTUATOR
VALVE BODY
DB
A
B
PNEUMATIC DIAPHRAGM
ACTUATOR
VALVE BODY
C
E
D
Pneumatic Actuators
Actuator A B lbs.
46 ″ 10 ″ 10-3/8 ″ 14
Valve Body
Size C D E lbs.
3/4 ″ 3-15/16 ″ 2 ″ 2-5/8 ″ 3
1 ″ 3-13/16 ″ 2-1/8 ″ 2-11/16 ″ 4
1-1/4 ″ 4-11/16 ″ 2-1/2 ″ 3-1/16 ″ 6
1-1/2 ″ 5-1/16 ″ 2-3/4 ″ 3-5/16 ″ 8
2 ″ 6-1/8 ″ 3-1/8 ″ 3-5/8 ″ 13
SD
