Page 9

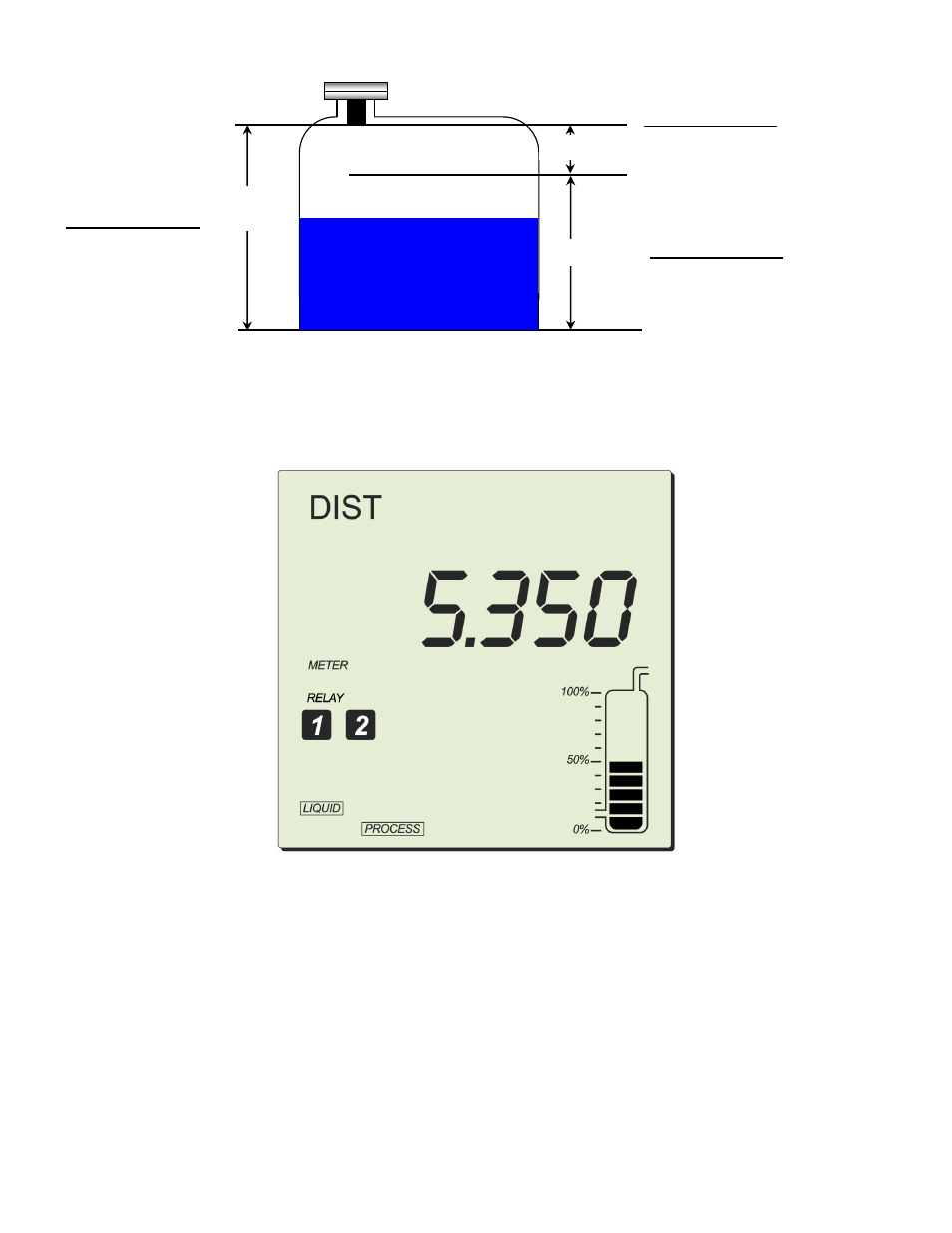

Tank Terminology



Default Screen

As soon as SmartSonic is fully installed and powered on, the LCD displays the default screen. The default screen
provides continuously updated measurement readings and displays the current settings for some functions (either the
default settings or the settings selected from the main menu). The relay number is displayed for each activated relay. You
can toggle between display indication types, such as: level, distance, volume and others, by using the SmartScan Main
Menu.

The tank graphic in the default screen gives an approximate visual indication of the current level of the tank contents,
while the numerical area gives the exact reading. If the level enters the dead zone, the numerical area displays

FF FFF. If

the tank is empty, the numerical area displays the tank height.

000000 may be displayed temporarily while SmartSonic is

taking a reading. You can refresh the reading by pressing the

ENT and BACK buttons simultaneously.

NOTE: By default, the displayed value is in meters, and gives the distance measurement, meaning from the sensor face
to the level of the fluid. The measurement indication mode and measurement unit can be changed, as described in Setting
Main Menu Options

Process

Media

Ai

r

Tank

Height

Span

Dead Zone

Tank Height

SmartSonic Remote
● Maximum 39.4 feet

Dead Zone

SmartSonic Remote
● Minimum 1.3 feet

Span Range

(4mA to 20mA)

SmartSonic Remote
● Maximum 38.1 feet
