NOTE:

STORAGE I and STORAGE II are not suitable for measuring liquids containing foam, since these

modes cannot perform signal processing.


The operation modes are not relevant for flow applications. If one of the

STORAGE I, STORAGE II or

PROCESS options is selected when SmartScan is in FLOW application mode, an

warning

message is displayed and SmartScan reverts to distance mode. You must then reset the unit to flow

mode.

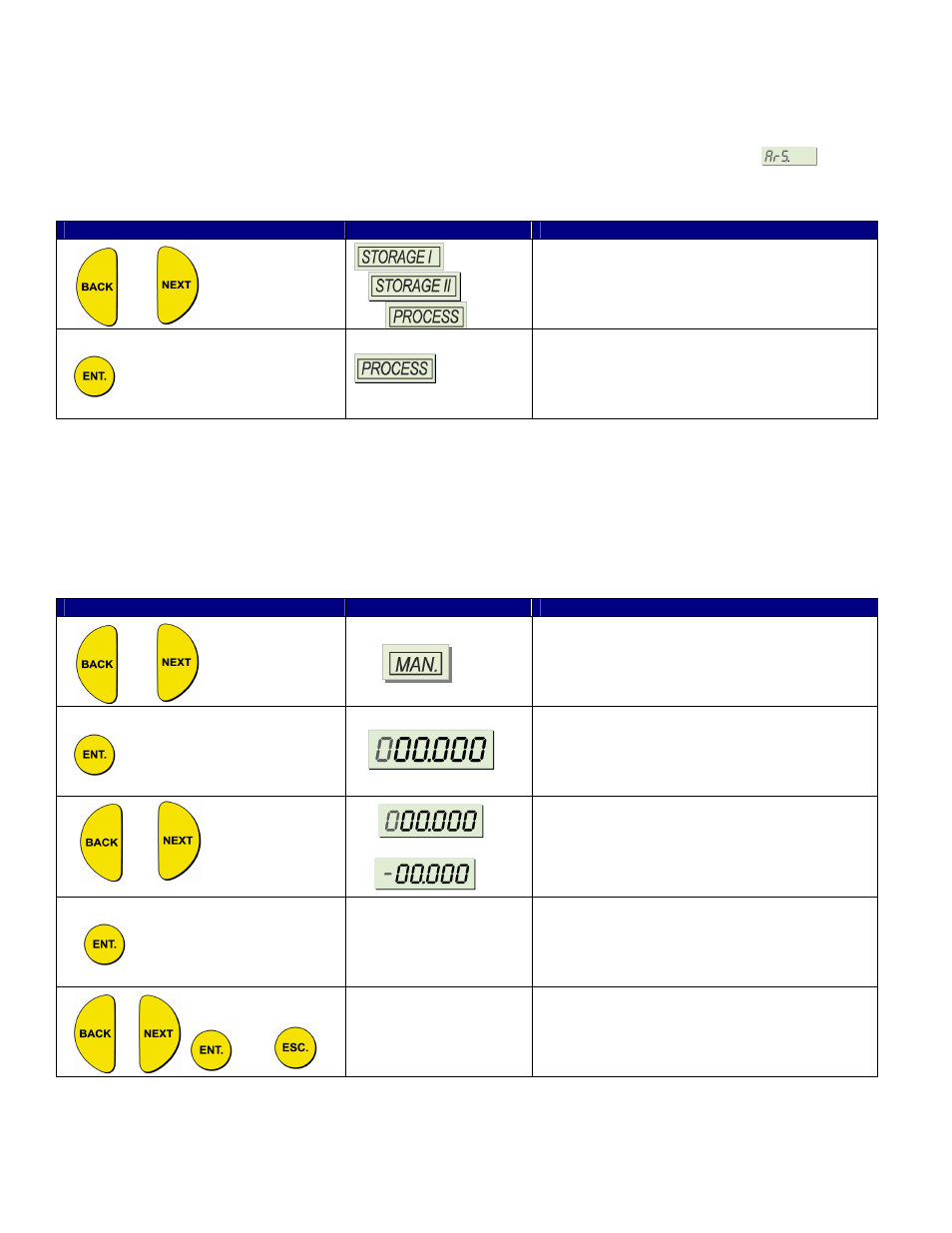

Press / Action

Display

Description




or

Move to STORAGE I (flashing). Select one of
the three modes: (STORAGE I, STORAGE II,
PROCESS)

Displays the desired value (flashing). Press
ENT to select.


Setting the Sensor Offset
SmartSonic Remote takes measurements from the tip of the sensor. However, when the sensor is located at a point that
is above or below the true height of the tank, you can use the

MAN function to enter the difference. This may be required,

for example, if the sensor is installed at the top of an external pipe, or at the base of an internal pipe in the tank.

When the sensor is located above the tank height, the difference must be subtracted from the actual measurements, so
the offset distance is entered as a negative value and vise versa. The maximum permitted offset value is 2.0 m and the
minimum permitted value is -2.0 m. Values can be entered in meter units only.

Press / Action

Display

Description




or

Move to MAN (flashing).

Displays the default value, or the previously
entered value.




or

Or

Toggle the first digit between Positive (0) or
Negative (-)

Press ENT to select the value from the
previous step




and

Continue to enter new values for the five
remaining digits.
