Page 23

The flume/weir type code methodology used when setting up open channels is based on three digits:

X .(E/U) FF

Where:

X

refers to the particular flume/weir type

E/U refers to European or American standard

FF refers to the specific flume/weir dimensions

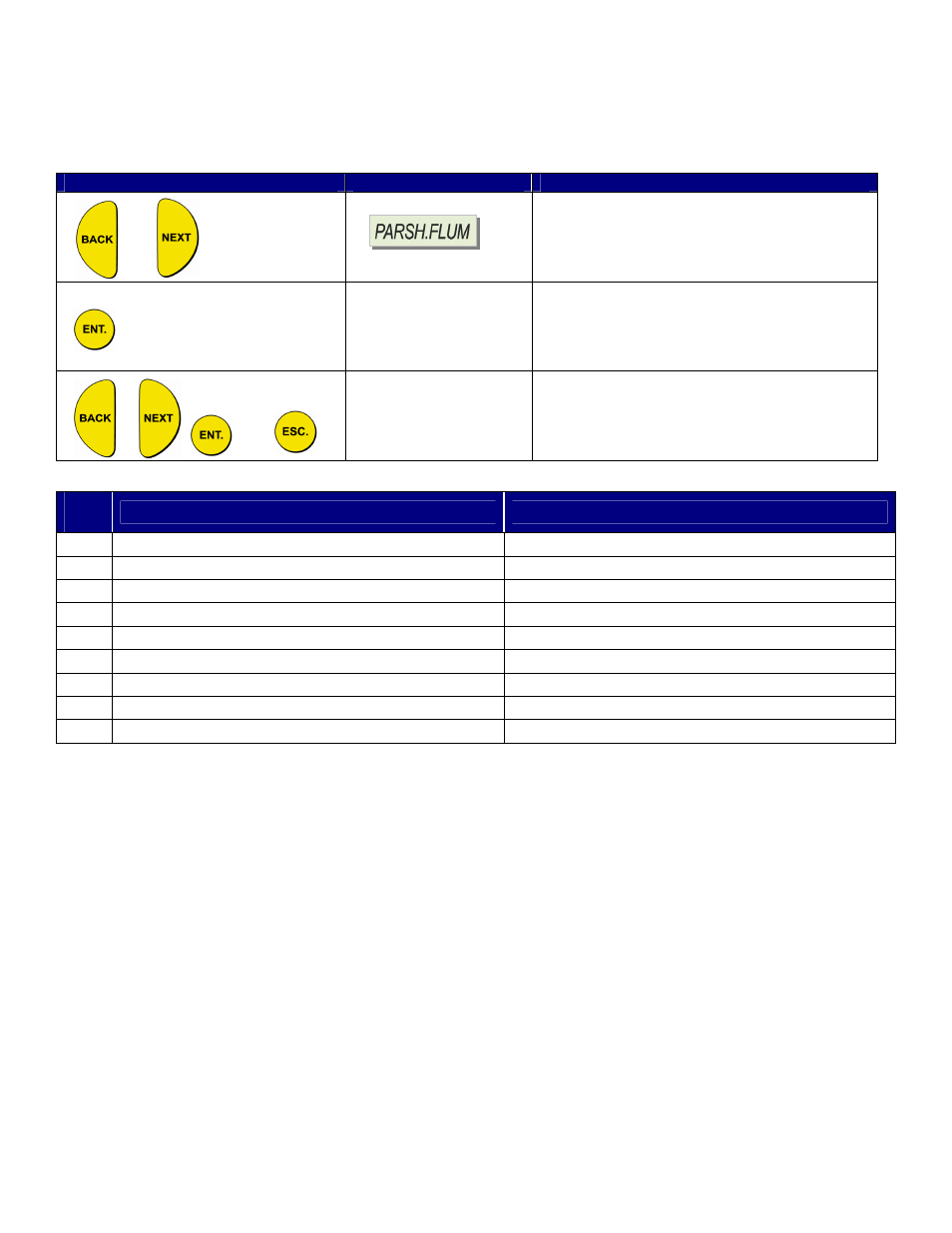

Press / Action

Display

Description




or

Move to PARSH.FLUM (flashing).


0.U01

Displays the default value, or the previously
entered value.




and

Used to select the desired value. See table
below to find the desired flow device. Press
ENT when finished.

Code

(X)

U.S Standard (Page #)

European (Page #)

1

Rectangular Suppressed Sharp-Crested Weir (24)

Rectangular Suppressed Sharp-Crested Weir (27)

2

Rectangular Contracted Sharp-Crested Weir (24)

Rectangular Contracted Sharp-Crested Weir (27)

3

Trapezoidal (Cipolletti) Sharp-Crested Weir (24)

Trapezoidal (Cipolletti) Sharp-Crested Weir (27)

4

V-notch (Triangular) Sharp-Crested Weir (25)

V-notch (Triangular) Sharp-Crested Weir (28)

5

Parshall Flume (25)

Khafagi-Venturi Flume (28)

6

Palmer-Bowlus Flume (25)

Parshall Flume (28)

7

H-Flume (26)

Palmer-Bowlus Flume (29)

8

Leopold-Lagco Flume (26)

H-Flume (29)

9

NONE

Neyrpic-Venturi Flume / Long Base Weir (29)
