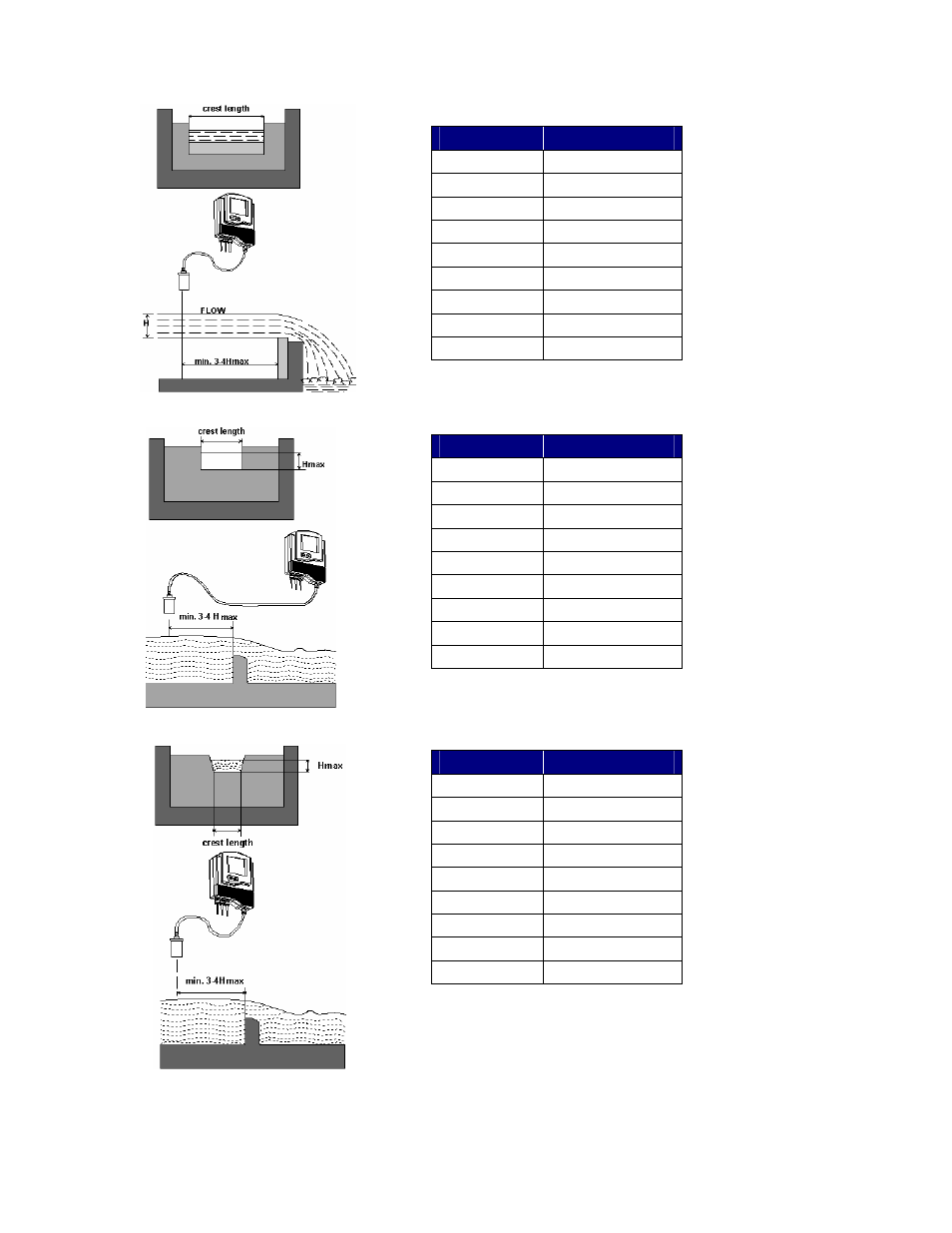

Flumes / Weirs – U.S. Standard (dimensions are in inches unless otherwise indicated)

Type 1 (X) – Rectangular Suppressed Sharp-Crested Weir


Type 2 (X) – Rectangular Contracted Sharp-Crested Weir

Type 3 (X) – Trapezoidal (Cipolletti) Sharp-Crested Weir

Code (FF)

Crest Length

01

12.00

02

18.00

03

24.00

04

30.00

05

36.00

06

48.00

07

60.00

08

72.00

09

96.00

Code (FF)

Crest Length

01

12.00

02

18.00

03

24.00

04

30.00

05

36.00

06

48.00

07

60.00

08

72.00

09

96.00

Code (FF)

Crest Length

01

12.00

02

18.00

03

24.00

04

30.00

05

36.00

06

48.00

07

60.00

08

72.00

09

96.00
