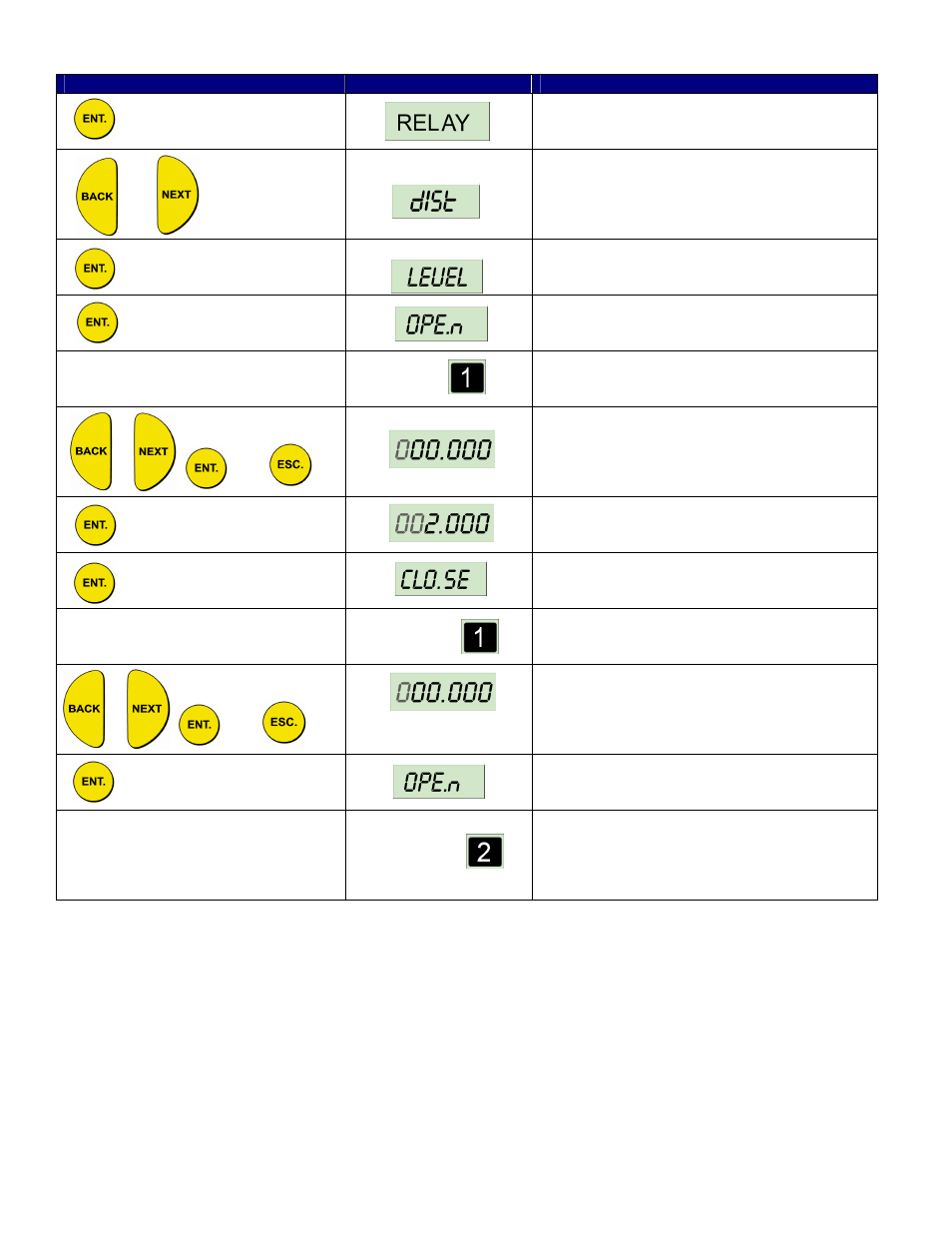

Press / Action

Display

Description

Press ENT when “Relay” is flashing to enter
relay setup




or

For example:

Cycle between Level, Distance, Flow (see next
table), Volume, Totalization (Relay #5 only).

For Example:

Press ENT to select the desired option

Press ENT to enter the OPEN function


and

The appropriate relay number flashes
throughout the process of defining the values
for the relay





and

Select the desired value for the OPEN
condition of this relay

Enter the value from the previous step

Press ENT to enter the CLOSED function


and

The appropriate relay number flashes
throughout the process of defining the values
for the relay




and

Select the desired value for the CLOSED
condition of this relay. Must be 1 inch (3cm)
less than the OPEN Value.

Press ENT to enter the OPEN function



and

Repeat the previous steps to set an OPEN and
CLOSED value for each relay to be used. If
you do not want to set a value for every relay,
use the ESC button to exit the relay setup
mode


Relay values can be configured with an alternate method when set to Flow, Volume or Totalization modes (see Additional
Features Section for information on Volume or Totalization Modes).

Use the following procedure to set the relay values for FLOW:
