The user may size the boxes manually using the mouse to move the partitions left, right, up or down.
The configuration box, spectrum box, and control chart boxes are all a double right-click to enlarge
or restore. After enlargement, double-click is repeated to return to the original display mode.

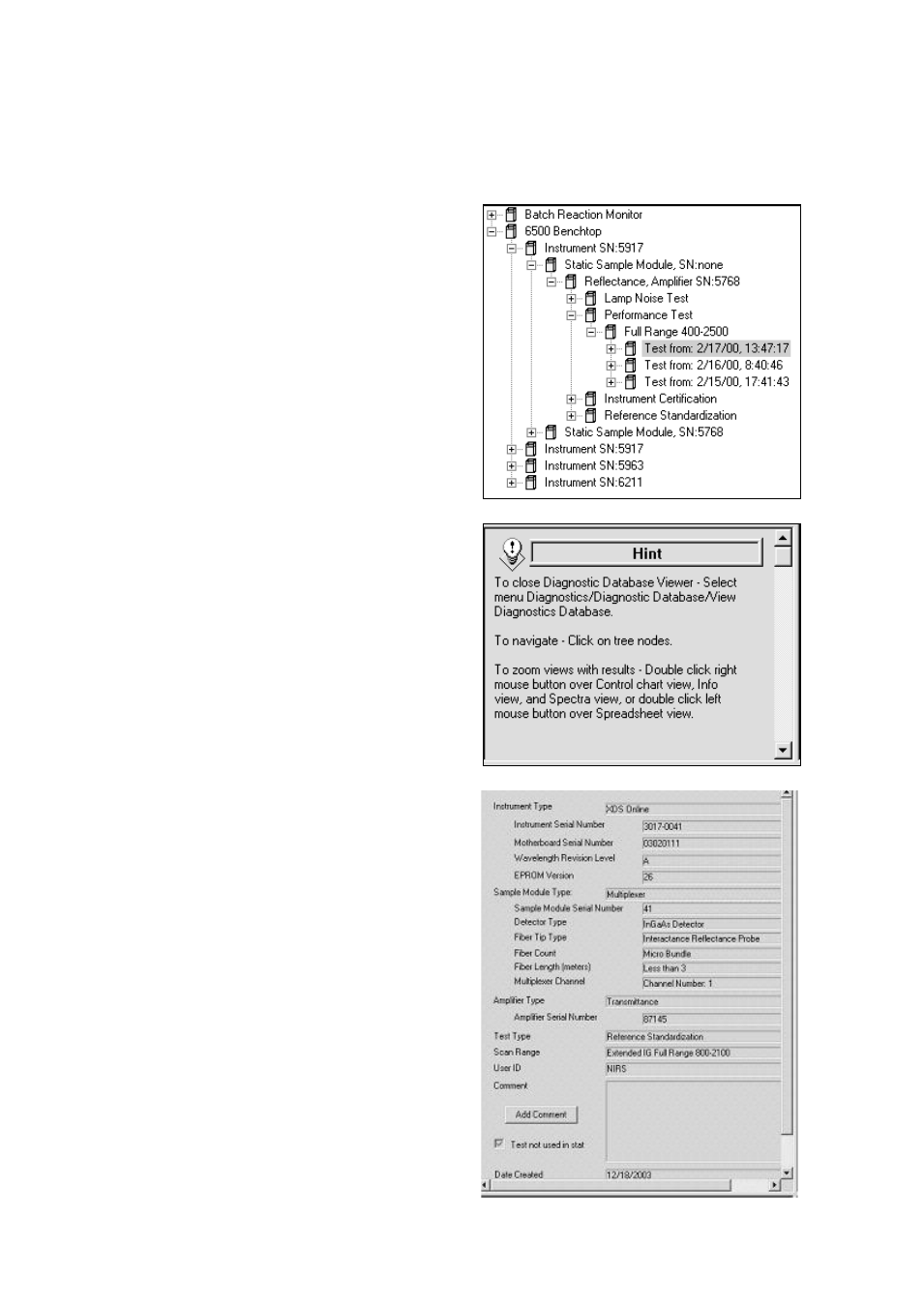

The instrument selection tree lists all instruments for
which information is stored in the database.
Click on the “+” sign beside each node to see all
items underneath. Each instrument lists all stored
configurations, tests, along with the date and time
of each test.
The Hint box tells how to zoom each of the four
boxes, along with other useful suggestions.
The hint box is useful throughout Vision, and
suggests steps to the user to help navigate Vision
most efficiently.
The upper middle box lists the full instrument
configuration. The box shown is for a process
system, which includes fiber-optic probes.
With process systems, the “Sampling Module Type”
is integral to the instrument, and carries the same
serial number as the instrument.
Comments can be added for individual test results
by clicking on the “Add Comment” combo box.
The upper right box shows spectra where
applicable. In this case, noise spectra for a tested
instrument are displayed.
