INSTALLATION
INSTRUCTIONS
6500 Instructions 12-15-12.doc Page 8 of 10

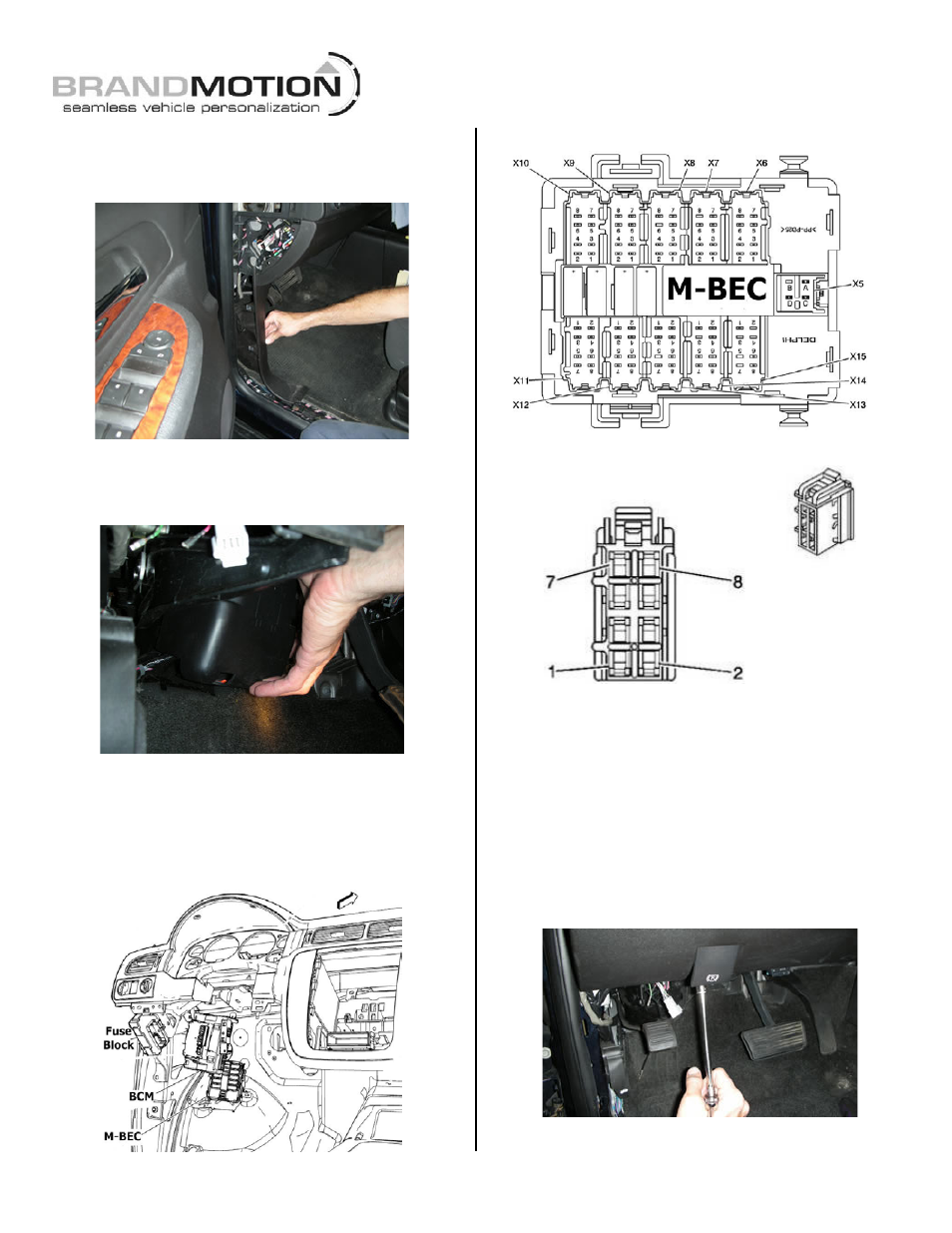

48. Remove front driver’s side kick panel by lifting at
bottom and working upwards to release mounting
clips. (Figure 36)
Figure 36
49. Remove the M-BEC cover under the dashboard by
popping it off with your hands. (Figure 37)
Figure 37
50. Have an assistant set parking brake, start vehicle,
and shift into Reverse. Using a digital multimeter,
check for reverse signal in Cavity 5 at the light gray
C11 or X11 Connector OR Cavity 8 of C10 or X10
Connector in the M-BEC. (Figures 38, 39, and 40)
Figure 38
Figure 39
Figure 40
51. If reverse signal is NOT present:
A. Check that bail securing the M-BEC connectors is
fully locked in place. Repeat Step 50.
B. If reverse signal is still not present, check the
Fuse Block for any blown fuses (Figure 38).
Replace any blown fuses and repeat Step 50.
C. If reverse signal is still NOT present,
proceed to Step 59.
52. Remove bolt running through the parking brake
lever using a 10mm socket, and remove lever.
(Figure 41)
Figure 41
