66. Secure any excess Camera Harness and/ or Chassis
Harness to washer fluid line or existing liftgate wires
using supplied Wire Ties.
67. Reconnect the negative battery terminal. Tighten
the negative cable nut to 5 N "m (44 lb in).
68. Test system functionality.
69. Reinstall knee bolster using existing two screws and
a Phillips screwdriver.
70. Reinstall parking brake lever using the existing bolt
and a 10mm socket.
71. Reinstall end of dash cover by popping it into place
with your hands.
72. Reinstall M-BEC electrical cover by popping it back
into place with your hands.
73. Reinstall front kick panel by pressing it into place
with your hands to reengage the mounting clips.
74. Reinstall front and rear sill plates by pressing into
place with your hands to reengage mounting clips.
75. Coil any excess supplied Chassis Harness and secure
to existing vehicle wiring using supplied Wire Ties.
76. Reconnect speaker wire in D-pillar and reinstall D-
pillar cover.
77. Reinstall D-pillar cover screw using a Phillips
screwdriver.
78. Reinstall D-pillar bolt cover.
79. Reinstall headliner garnish by working your way
from one end to the other and popping mounting
pins in with your hands. Note: Make sure liftgate
weather stripping is sitting on the outside of the D-
pillar cover, D-pillar trim, and headliner garnish.
80. Reinstall liftgate sill plate by setting it into place and
pressing down on it to re-engage mounting clips.
81. Reinstall the liftgate button connector to the upper
liftgate trim panel.
82. Reinstall lower liftgate trim by aligning it with liftgate
and working your way from one end to the other
popping the mounting pins in with your hands.
83. Reinstall upper liftgate trim by aligning it with
liftgate and working your way from one end to the
other popping the mounting pins in with your hands.
84. Reinstall pushpins from the rear window latch trim
by pressing them into holes with your fingers.
85. Reinstall liftgate pull strap and grab cup on liftgate
using the existing hardware and a T30 Torx driver.
86. Reinstall third row seat.

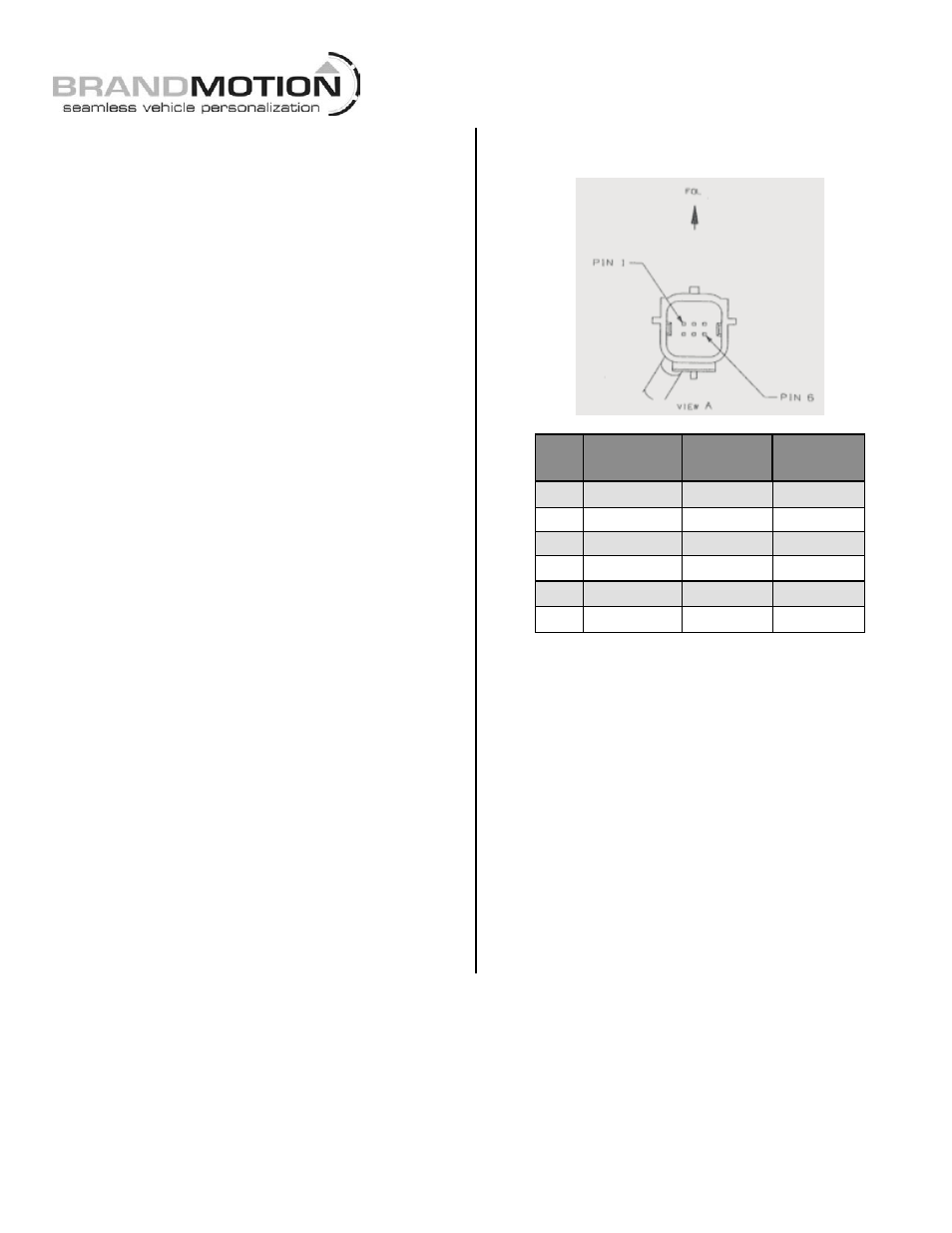

Camera & Chassis Harness Pinouts
(Reference only)
PIN
# FUNCTION
CAMERA
HARNESS
COLOR CHASSIS
HARNESS
COLOR
1 Video (+) White White
2 Shield Blue Blue
3 Reverse Green Green
4 Video (-) Brown Brown
5 Ground Black Black
6 Ignition Red Red
