WINCUEPRO FOR AVSTAR USER GUIDE
APPENDIX A
VERSION 1.30
92
QTV 2001

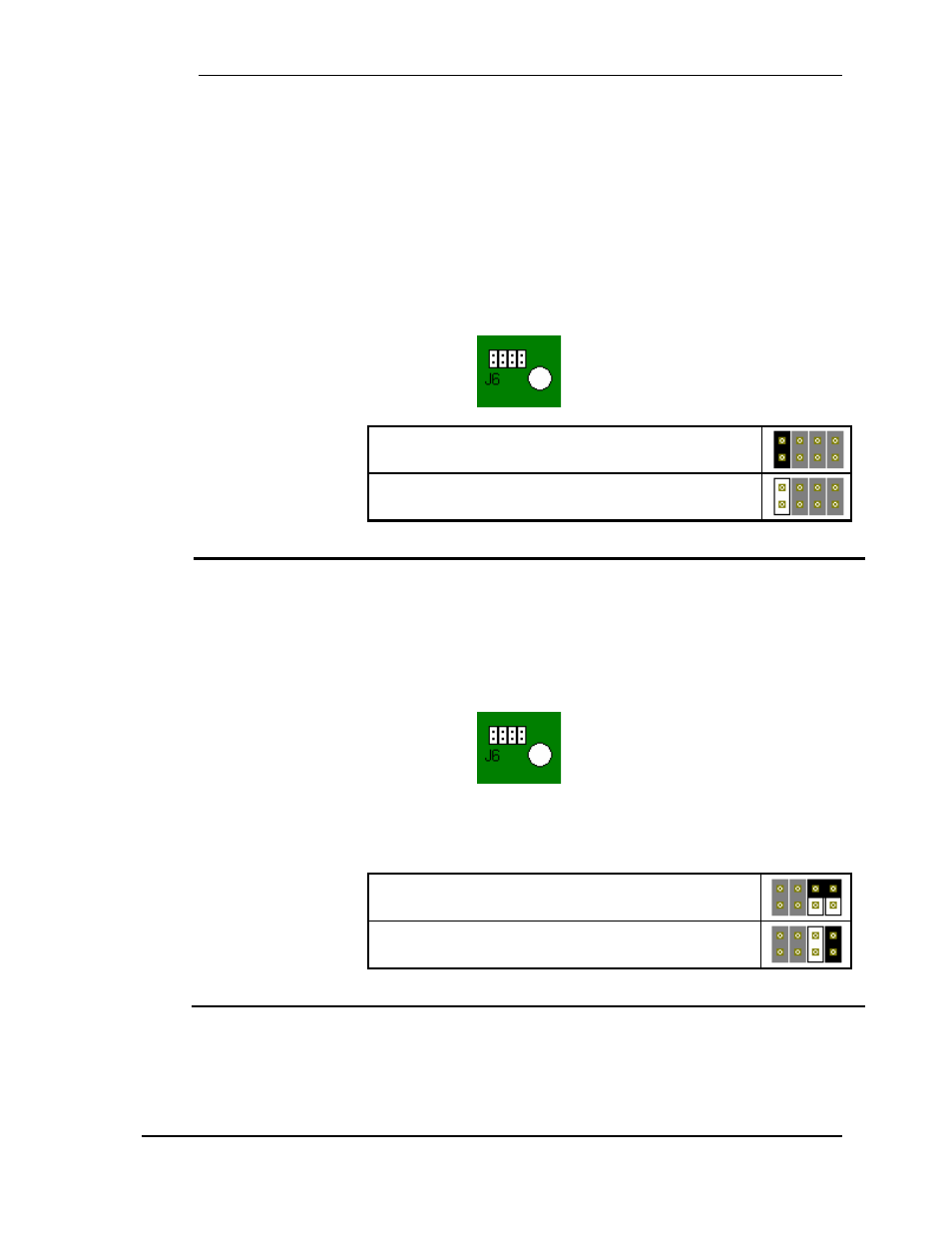

A3 Termination - J6
By Default the IMT card is terminated, and is expected to be connected
to the end of the SCSI cable. Termination can be enabled/disabled by
changing a jumper setting on J6.
To enable termination of the IMT card place a jumper on
leftmost pins of J6
To disable termination of the IMT card remove the jumper
on leftmost pins of J6
A3 Power to Bus for SCSI Termination - J6
J6 is used to determine whether the IMT card is terminated and to
determine the source of termination power.
If you have enabled termination on the SCSI card you will need to set
the source of termination power.
To enable external termination power for the SCSI bus
connect pins 5 and 7 of J6
To enable internal termination power to the SCSI bus
connect pins 7 and 8 of J6
See Also
See below to learn about
power to bus SCSI
