Publication GMSI10-UM010C-EN-P - May 2010
40 Installing the XM-120 Eccentricity Module

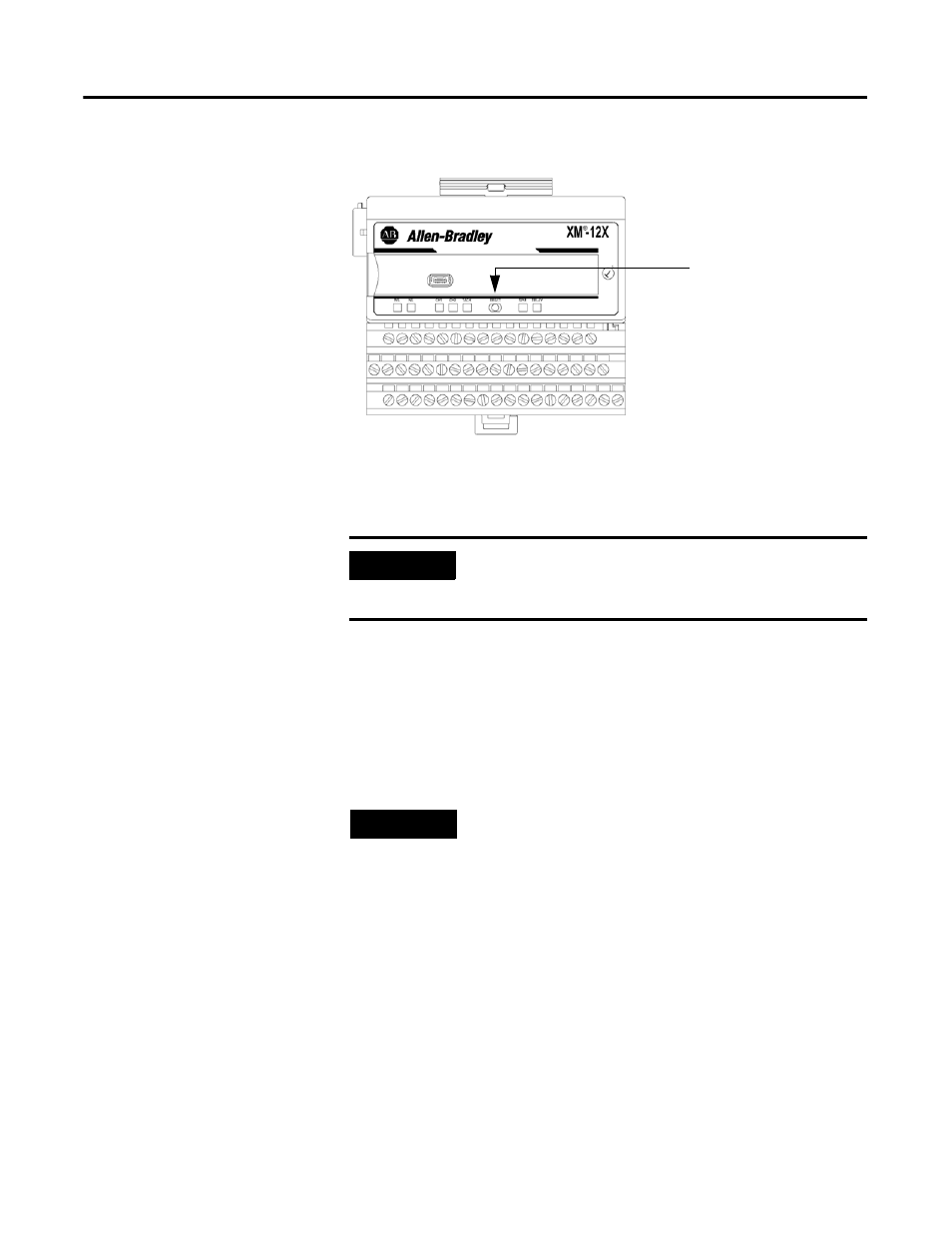

Figure 2.24 Reset Switch
The switch can be used to reset all latched relays in the module. This includes
the relays in the Expansion Relay Module when it is attached to the XM-120.
Installing the XM-120
Eccentricity Firmware Before you can use the XM-120 Eccentricity module, you must install the
Eccentricity firmware onto the XM-120 Dynamic Measurement module. The
Eccentricity firmware is provided on the XM Documentation and
Configuration Utility CD (version 3.10 or later) that is packaged with the XM
modules.
Complete the following steps to install the XM-120 Eccentricity firmware.
1. Make certain you have installed the XM Serial Configuration Utility onto
the computer that will be connected directly to the XM-120 module.
Refer to the XM-12X Dynamic Measurement Modules Installation
Instructions for assistance.
2. Insert the XM Documentation and Configuration Utility CD into the
CD-ROM drive of the computer.
3. Connect the computer to the XM-120 module using the special serial
cable. Refer to Serial Port Connection on page 32.
IMPORTANT
The Reset switch resets the relays only if the input is no
longer in alarm or the condition that caused the alarm is no
longer present.
Press the Reset
Switch to reset the
relays
TIP
XM firmware update files are available for download from
the XM Firmware Update page at
http://support.rockwellautomation.com
