PowerFlex 700S and 700H Frames 10...14 IP00, NEMA/UL Open Power Structures

700H Control Connections

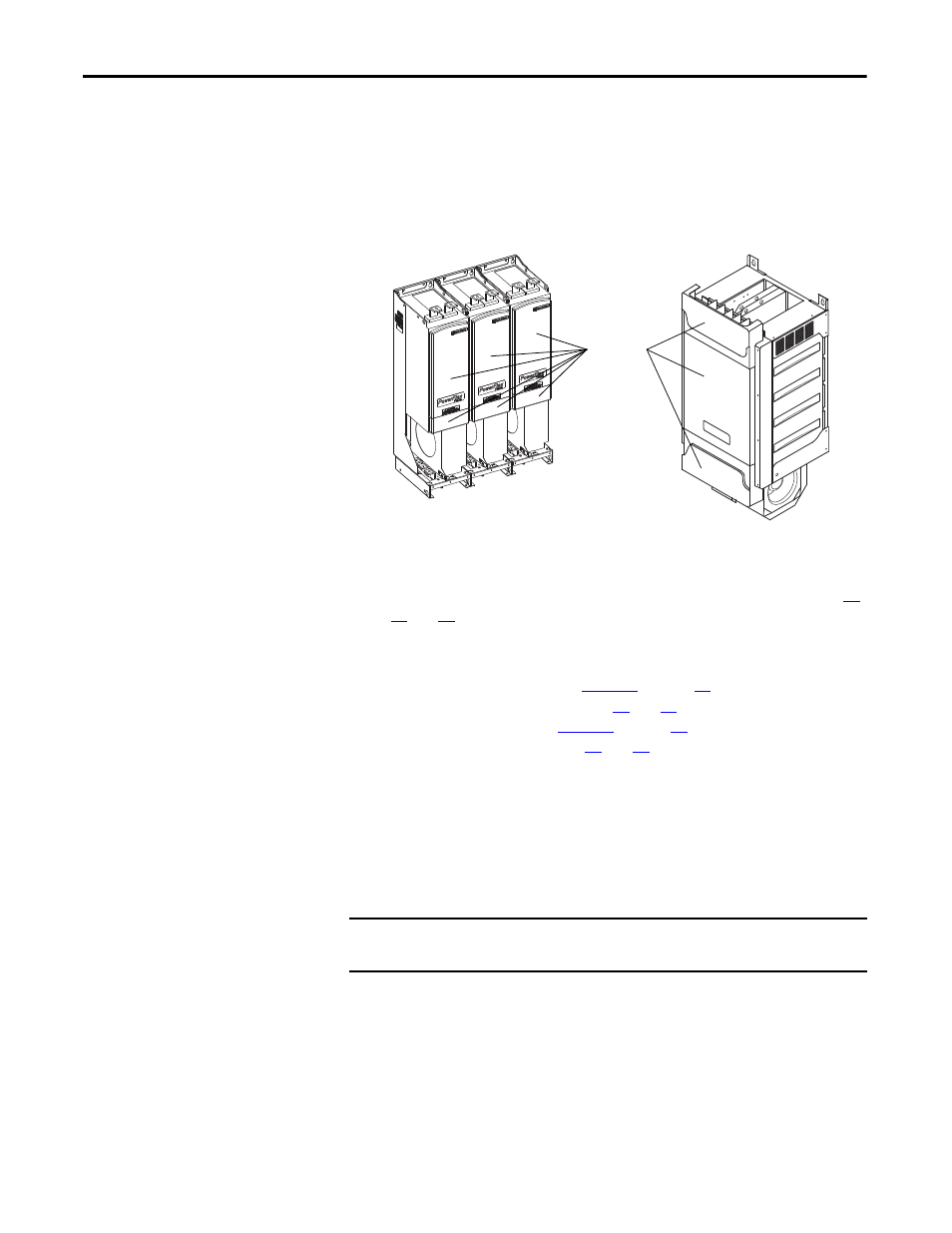

1. To access the ASIC board(s), remove the front protective cover(s) from

the power structure(s) as shown below.

2. Connect the 24V power supply cable between connector X10 on the

ASIC board and connector X2 on the Fiber Optic Adapter or Star
Coupler board on the back of the 700H control board. Refer to figures

and

for connector locations.

3. Connect each fiber optic cable between the respective connectors on the

ASIC board(s) and the Fiber Optic Adapter or Star Coupler board. For
frames 10, 11 and 13, refer to

Table 20

on page

for cable designations

and connection points and figures

and

for connector locations. For

frames 12 and 14, refer to

Table 21

on page

for cable designations and

connection points and figures

and

for connector locations.

• Complete fiber optic cable connections after all electrical wiring has

been completed to avoid damage to the cables.

• Ensure that the fiber optic cables do not contact sharp objects that can

cause damage to the cables.

• The fiber optic cables have a minimum bending radius of 50 mm (2.0

in.).

IMPORTANT

Verify correct cable/connector placement. Connecting the wires incorrectly
could damage components.

Frames 13 and 14

Frames 10…12

(Frame 10 shown)

Protective

Covers
