Planning Before Installing 3-7
Standard reactors can be used on GV3000/SE drives with carrier frequency settings up to 8 kHz.
All reactors listed are UL-recognized (UL-506 File #E53094) and CSA certified (CSA File # LR29753).

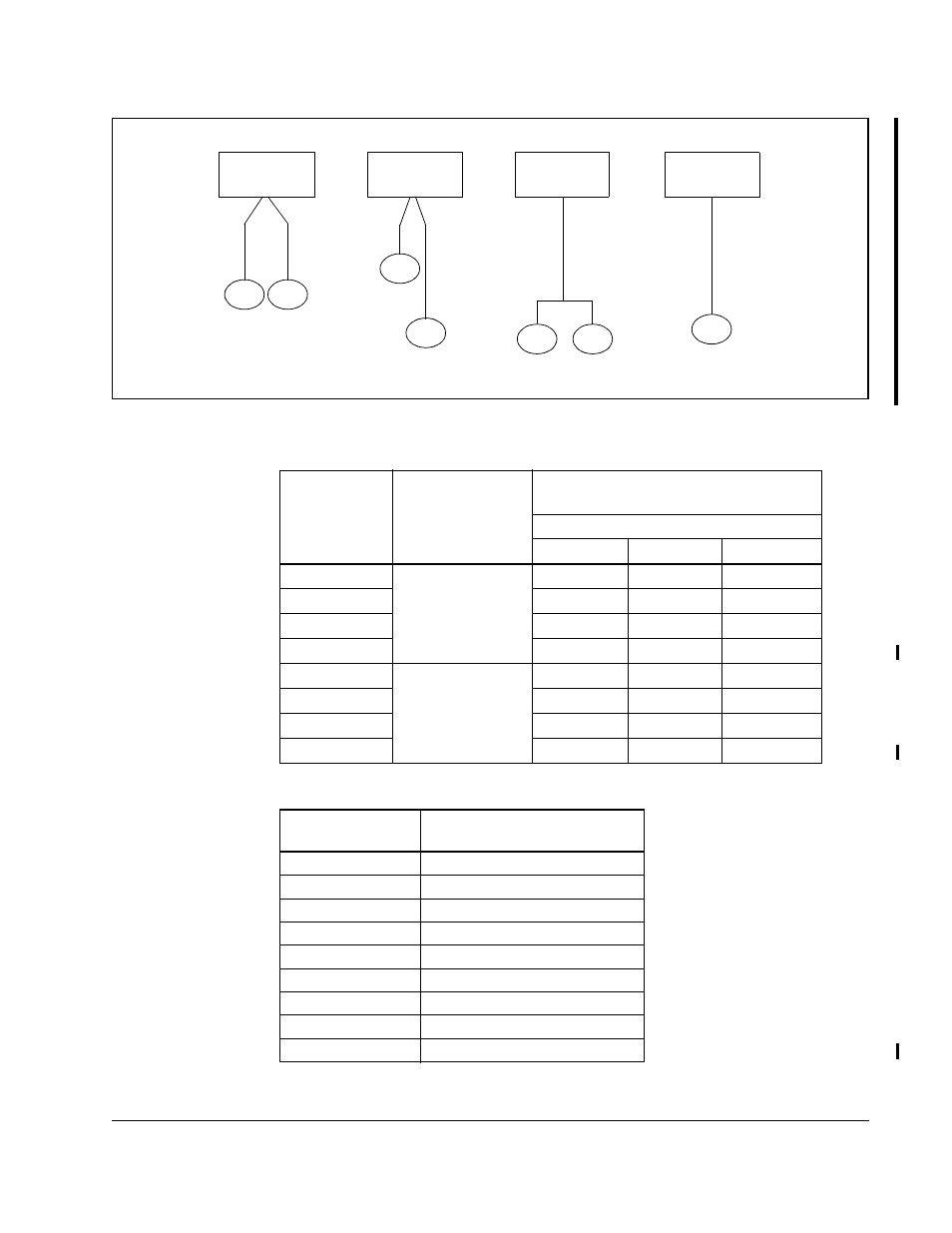

Figure 3.3 – How to Calculate Motor Lead Lengths
GV3000/SE
Drive
Motor
38 m (125’)
38 m (125’)
15 m (50’)
61 m (200’)
61 m (200’)
8 m (25’) 8 m (25’)
76 m (250’)
Motor
Motor
Motor
Motor Motor
Motor
GV3000/SE
Drive
GV3000/SE
Drive
GV3000/SE
Drive
This example shows how to measure various motor configurations when the maximum motor lead length is 76 m (250 ft). Note that drives using
vector regulation can be connected to only one motor at a time.
Table 3.8 – Recommended Motor Lead Lengths for Reliance Inverter Duty Motors
Maximum Lead Length in Feet with
460 VAC Motor
GV3000/SE
Amp Rating Filter Type
Carrier Frequency
2 kHz 4 kHz 8 kHz
3.1 to 3.8
None
500 500 500
5.5 to 8.5 500 500 500
12.6 to 15 750 500 500
24 to 43 800 500 500
3.1 to 3.8
A 5% reactor/filter
at the drive.
1000 1000 1000
5.5 to 8.5 1000 1000 1000
12.6 to 15 1000 1000 1000
24 to 43 1000 1000 1000
Table 3.9 – Compatible Reactors
GV3000/SE
Amp Rating
480 Volt
5% Reactor
3.1 RL-00202
3.8 RL-00403
5.5 RL-00403
8.5 RL-00803
12.6 RL-01203
15 RL-01803
24 RL-02503
30 RL-03503
43 RL-04503
